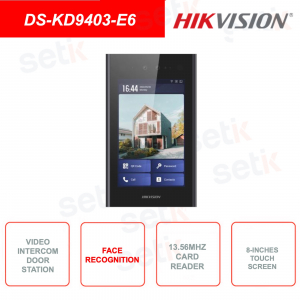

Outdoor Station HIKVISION - DS-KD9403-E6 - IPS 8" 1280x800 Touchscreen Display - Face recognition - 13.56Mhz card reader - Omnidirectional microphone and speaker - WDR - 2MP camera - H.264 - 10,000 faces - 10,000 access cards - Alarm 4in/2out - 2xUSB - 2xRJ45 - 2xRS485 - IP65 protection - For recessed or wall installation - Ideal for outdoor use.



Reference: DS-KD9403-E6

Brand: Hikvision

FIND INSTALLER

€1,582.04

€2,433.90 -35%
taxes included
Tax included
 Available in 5 days



Made by Hikvision

DS-KD9403-E6 | HIKVISION OUTDOOR STATION - ALARM AUDIO - 2MP CAMERA - 13.56MHZ CARD READER - IP65

The DS-KD9403-E6 workstation, by HIKVISION , is a modular outdoor workstation with 8-inch IPS color touchscreen display and 1280x800 resolution, 2MP camera for face recognition, face authentication or 13.56Mhz card reading (up to to 10,000 faces / up to 10,000 cards), h.264 codec, 4 alarm inputs and 2 alarm outputs, anti-tampering alarm - Android 7.1 operating system - Omni-directional microphone and speaker, IP65 protection, ideal for outdoor use, 2xRS485 - 2xUSB - 2xRJ45 - For flush or direct wall mounting - HIKVISION - DS-KD8003-IME1/NS

CAMERA INTEGRATED IN THE DEVICE:

with 2 megapixel resolution, equipped with infrared illuminator, with face recognition function

DISPLAY:

8-inch IPS touchscreen display with 1280x800 color resolution.

AUTHENTICATION:

Allows authentication via face recognition or 13.56MHZ card reading

Up to 10,000 cards and 10,000 faces can be registered.

CONNECTIONS:

Connection via 10/100/1000M Mbps self-adaptive Ethernet LAN port

2xUSB

2xRS-485

AUDIO:

Omnidirectional microphone and speaker integrated into the device

IN/OUT ALARM:

4 Inputs and 2 Alarm Outputs

PROTECTION:

IP65, ideal solution to guarantee device protection from dust and water jets + 1 tampering alarm (with anti-tampering function)

DIET:

12VDC power supply

Data sheet

DS-KD9403-E6

System parameters

operating system

Android 7.1

ROM

4GB

RAM

2GB

CPUs

Embedded Processor

Display parameters

Screen size

8-inch

Operation method

Touch screen

Type

Colorful IPS

Resolution

1280×800

Video parameters

Supplement light

Low illumination, IR supplement lights

Standard videos

H.264

lens

1

FOV extension

Horizontal: 88

°

, Vertical: 44
