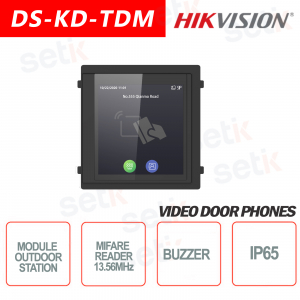

DS-KD-TDM | TOUCHSCREEN DISPLAY MODULE - MIFARE CARD READER - IP65
Touch screen display module with mifare card reader, Linux Operating System, 4 Inch, IPS Touch Screen, Supported 13.56MHz MIFARE Cards, IP65. Requires mounting bracket
MIFARE CARD READER: Proximity reader for Mifare cards (13.56MHz) |
PROTECTION: ip65, dust and water jet protection |
SUPPLY: Power supply 12VDC, 2W max |
Data sheet
| DS-KD-TDM | |
| System parameters | |
| operating system | Linux |
| ROM | 32MB |
| RAM | 128MB |
| Display parameters | |
| Screen size | 4-inch |
| Type | IPS touch screen |
| Resolution | 480 x 480 |
| Audio parameters | |
| Audio outputs | Buzzers |
| Network parameter | |
| Wireless networks | Only AP mode |
| Authentication | |
| Card reading frequency | 13.56MHz |
| Card reading distance | 2cm |
| CardType | Mifare card |
| Device interfaces | |
| TF card | Reserved |
| DIP switches | 8 Bits |
| cascade interface | 2 |
| General | |
| Installation | Surface, flush |
| protective level | IP65, IK8 |
| Working temperatures | -20°C to 60°C (-4°F to 140°F) |
| Working humidity | 10% to 95% (non-condensing) |

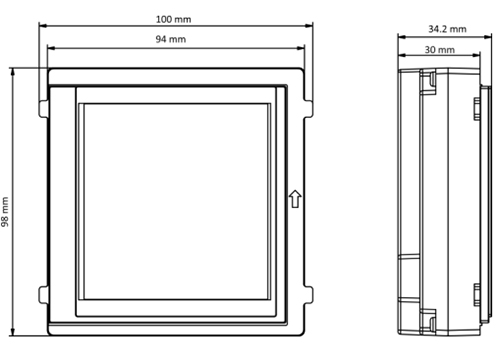

| Dimensions | 100mm × 100mm × 35mm (3.94" × 3.94" × 1.38") |
| power supplies | 12VDC, supplied by the main module |
| power consumption | ≤ 10W |
| Language | English,French,Portuguese,Spanish,Russi an,German,Italian,Polish,Turkish,Vietna mese,Arabic,Czech,Hungarian,Dutch,Romanian,Bulgarian,Ukrainian,Croatian,Se rbian,Greek |
