Relay module, Supports RS-485 communication, compatible with Dahua outdoor stations. 2x RS-485, 1x Exit Button, 1x Door Status Detection, 1x Lock Control, Offers 3 indicators that signal device power on or off, door operation and status. DEE1010B-S2 - S2 VERSION
FIND INSTALLER
discover the available quantity
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!

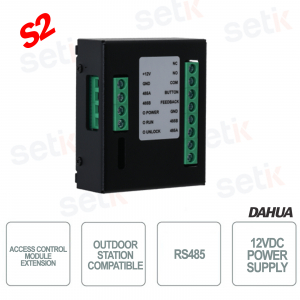

ACCESS CONTROL / ADDITIONAL RELAY MODULE ON RS485 FOR EXTERNAL STATIONS - VERSION S2 - DAHUA
DESCRIPTION:
Dahua's DEE1010B-S2 add-on module is one of the best optional modules on RS485 on the market. S2 version
On this module there are: 2x RS-485, 1x Exit Button, 1x Door Status Detection, 1x Lock Control.
Compatible with Dahua Security outdoor stations
Product Details:
|
Data sheet
| DEE1010B-S2 | |
| RS-485 | 2 |
| Exit Button | 1 |
| Door Status Detection | 1 |
| Lock Control | 1 |
| Power Supply | 12 VDC, 1 A |
| Power Consumption | ≤ 0.9W (standby), ≤ 1W (working) |
| Product Dimensions | 58.2 mm × 49.2 mm × 20.2 mm (2.29 "× 1.94" × 0.8 ") (W × H × D) |
| Operating Temperature | –10 ° C to +60 ° C (+14 ° F to +140 ° F) |
| Operating Humidity | 0% –95% (RH), non-condensing |
| Net Weight | 0.09 kg (0.20 lb) |
| Gross Weight | 0.12 kg (0.26 lb) |
| Certifications | THERE IS; FCC |
