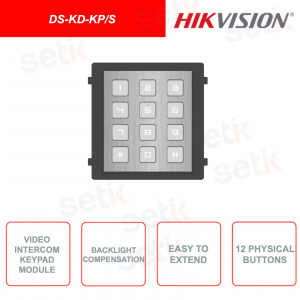

DS-KD-KP / S - Video Intercom - Keyboard Module - Keypad with 12 physical keys - 8x DIP Switch - Flush or wall mountable

DS-KD-KP / S - Video Intercom - Keyboard Module - Keypad with 12 physical keys - 8x DIP Switch - Flush or wall mountable
-35%

DS-KD-KP / S Expansion Module - HIKVISION - Keypad with 12 buttons - Brightness compensator - Easy to extend - IP65 and IK7 protection - Supports the call to the indoor station by typing its reference number - In stainless steel - Flush mounting recessed or wall,

Reference: DS-KD-KP/S

Brand: Hikvision

EAN: 6941264072157

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


HIKVISION: NET PRICES×


THIS PRODUCT IS ONLINE AT A SPECIAL PRICE!
Check out the other products that are part of the promotion! Prices valid until 30.04.2025
Netti Hikvision

ALARM HIKVISION×


  SPECIAL DISCOUNTS AND FREE SHIPPING!
DS-PWA64-Kit-WE |  DS-PWA96-M2H-WE  |  DS-PWA96-Kit-WE
 Take advantage now >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>


Made by Hikvision

DS-KD-KP / S | EXTERNAL EXPANSION MODULE - KEYBOARD - 12 PHYSICAL BUTTONS - IP65 - IK07

Keypad expansion module, Supports call to the indoor station, With brightness compensator, 12 physical buttons, 12VDC power supply, 2W max, Operating temperature -40 ° C / + 55 ° C, IP65 protection rating from splashing water and dust, IK07 (degree of impact resistance) - Flush or Wall Mount - Product made of durable stainless steel - Dimensions: 98.5 mm × 100 mm × 34.2 mm - DIP Switch x8 - Processor: Embedded MCU Processor - 1x Debug - Supports opening door by typing access password - Easy to extend.

DS-KD-KP / S

12 PHYSICAL KEYS:

The module integrates 12 physical keys. It is possible to contact the station by typing the relative reference number.

INSTALLATION:

The module can be installed with a flush-mounted or wall-mounted box

PROTECTION:

IP65, guarantees the protection of the device from dust and water jets.

IK07, degree of impact protection from the outside

SUPPLY:

12VDC power supply, not exceeding 2W total.

Data sheet

DS-KD-KP / S
System parameters
Processor Embedded MCU Processor
Operation method Physical button
Interfaces
Module-connecting 2 (1 input, 1 output)
Debug 1
General
Physical button

12

DIP switch

8

Power input

12 VDC (powered by the other module)

Power output

12 VDC (powered for the other module)

Power consumption

≤2W

Working temperature

-40 ° C to + 55 ° C (-40 ° F to 131 ° F)

Working humidity

10% to 95%

IP protection level

IP65, IK7

Installation

Flush mounting, surface mounting

Dimension

98.5 mm × 100 mm × 34.2 mm

Material

Stainless steel

Further details

DS-KD-KP / S DIAGRAM

Download

Download the English brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
