IP indoor station Hikvision DS-KH9510-WTE1 Wireless PoE Monitor Intercom 10.1 "LCD Display Touch Screen with resolution (1024 x 600), slot for MicroSD (Max 32GB), remote unlocking via software client or mobile client, omnidirectional microphone and integrated speaker, 1 microSD / SDHC / SDXC 32GB , Supports installation of Android applications , 8 Inputs + 2 Alarm Outputs, 1 RS485, 12 VDC & IEEE 802.3af PoE standard.
FIND INSTALLER
discover the available quantity
DS-KH9510-WTE1 | HIKVISION MONITOR INTERNAL STATION - AUDIO ALARM - TOUCH SCREEN - ANDROID APPLICATION SUPPORT
|
DISPLAY: 10.1 "LCD display, 1024x600 resolution, capacitive touch screen |
| ANDROID APP: Support installing Android applications |
|
COMPATIBLE INDOOR MONITOR: Intercommunicating station. This means it can communicate freely with other internal monitors |
|
MICROSD TF CARD SLOT: Supports 1 SD / SDHC / SDXC Card Slot ( Max 32GB ) ( NOT INCLUDED ) |
| AUDIO: Incorporates audio and microphone |
| ALARM: 8 Alarm Inputs + 2 Alarm Outputs |
| PHOTO: In surveillance or call mode, you can take screenshots (MicroSD presence required) |
|
RJ-45: Connection via RJ-45 Ethernet LAN port ( 10M / 100Mbps ) Self-adaptive |
|
POWER SUPPLY: 12 VDC power supply & IEEE 802.3af PoE standard |
Data sheet
| DS-KH9510-WTE1 | |
| System parameters | |
| Memory | 1 GB |
| Flash | 8 GB Emmc |
| Display parameters | |
| Display screen | 10.1-inch colorful IPS touch screen |
| Display Resolution | 1024 × 600 |
| Operation method | Capacitive touch screen |
| Brightness | Adjustable |
| Audio parameters | |
| Audio input: |
Built-in omnidirectional microphone |
| Audio output |
Built-in loudspeaker |
| Standard audio compression |
G.711 U, G.711 A |
| Audio quality |
Noise suppression and echo cancellation |
| Network parameters | |
| Wired Network |
10/100 Mbps self-adaptive |
| Wireless network | Wi-Fi 802.11 b / g / n |
| Network protocol | TCP / IP, SIP, RTSP |
| Interfaces | |
| Network port | RJ45 |
| RS-485 | 1 |
| Alarm in | 8 |
| Button | 1 |
| TAMPER | 1 |
| Alarm out | 2 Relay |
| Debugging port | 1 |
| Micro USB | For debug only |
| General | |
| Power Supply | 12 VDC & PoE standard IEEE 802.3af |
| Power consumption | ≤ 8 W |
| Working temperature | -10 ° C to 50 ° C (14 ° F to 122 ° F) |
| Working humidity | 10% to 90% |

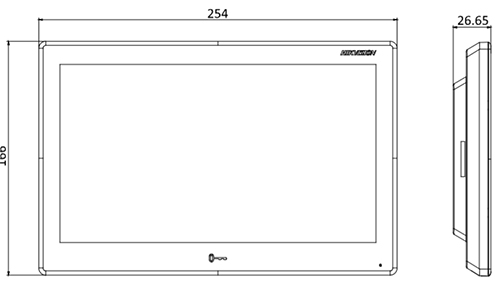

| Dimensions | 254 mm × 166 mm × 26.65 mm (10.0 "× 6.54" × 1.05 ") |
| Weight | 875 g (without package) 1060 g (with package) |
