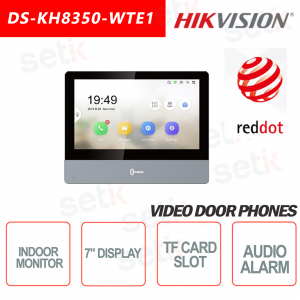

IP Indoor Station Winner of the RED DOT AWARD 2017 Hikvision DS-KH8350-WTE1 Wireless PoE Monitor Intercom 7" LCD Touch Screen Display with resolution (1024 x 600), MicroSD slot (Max 32GB), remote unlocking via software client or mobile client, integrated omnidirectional microphone and Speaker. Capture screenshots and store messages on TF card, 8 Inputs + 2 Alarm Outputs, 1 RS485, DC 12V power supply, PoE(802.3af).
PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
RED DOT AWARD WINNER 2017 The Red Dot Design Award is one of the largest and most important design awards in the world. The aim of the award is to honour the exceptional quality of designers and manufacturers. |
DS-KH8350-WTE1 | HIKVISION INTERNAL MONITOR STATION - AUDIO ALARM - TOUCH SCREEN - RED DOT 2017 WINNER
![DS-KH8350-TE](https://cdn.setik.biz/storage/images/Articoli/DS-KH8350-TE_BANNER.jpg)
DISPLAY: 7" LCD display 1024x600 resolution capacitive touch screen |
INDOOR MONITOR COMPATIBLE: Intercom Station. This means it can communicate freely with other internal monitors |
MICROSD TF CARD SLOT: Support 1 TF Card Slot (Max 32GB) ( NOT INCLUDED ) |
AUDIO: Embed audio and microphone |
ALARM: 8 Alarm Inputs + 2 Alarm Outputs |
PHOTO: In surveillance or call mode, you can take screenshots (MicroSD required) |
RJ-45: Connection via self-adaptive RJ-45 Ethernet LAN port (10M/100Mbps) |
LIVE CONNECTION: |
POWER SUPPLY: Power supply DC 12V, PoE(802.3af) |
Technical data sheet
DS-KH8350-WTE1 | |
System parameters | |
Memory | 128 MB |
Flash | 32 MB |
Operation system | Embedded Linux operation system |
Display parameters | |
Display screen | 7-inch colorful TFT screen |
Display Resolution | 1024 x 600 |
Operation method | Capacitive touch screen |
Audio parameters | |
Audio input: | Built-in omnidirectional microphone |
Audio output | Built-in loudspeaker |
Audio compression standard | G.711 U |
Audio compression rate | 64Kbps |
Audio quality | Noise suppression and echo cancellation |
Network parameters | |
Wired Network | 10/100 Mbps self-adaptive |
Network protocol | TCP/IP, SIP, RTSP |
Network interface | 1 RJ-45 10/100 Mbps self-adaptive |
Alarm input | 8-channel alarm inputs |
I/O output | 2 |
TF card | Max to 32G, SD 2.0 or lower version |
RS485 | Supported |
General | |
Power supply | IEEE802.3af, PoE standard 12 VDC/1 A |
Power supply via detector | 12V, 200mA |
Power consumption | ≤ 7W |
Working temperature | -10 °C to 55 °C (14 °F to 131 °F) |
Working humidity | 10% to 90% |
Dimensions | 180 mm × 140 mm × 22.4 mm (7.09" × 5.51" × 0.88") |
Weight | 786 g (with packaging) 600 g (without packaging) |
Certification | FCC, IC, CE, C-TICK, ROHS, REACH, WEEE, UL, CB, RCM |
Further details
![DS-KH8350-TE Technical Diagram](https://cdn.setik.biz/storage/images/Articoli/DS-KH8350-TE_schema.jpg)
