IP internal point Dahua VTH2421FW-P SIP internal PoE color monitor 7 "TFT touch screen 1024X600, H.264, G.711, 6 inputs + 1 alarm output, built-in speaker and microphone, supports two-way conversation and echo cancellation / DNR. Coloration Black , Connection with dahua ip cameras, SOS alarm, MicroSD slot, wall mounting
FIND INSTALLER
discover the available quantity
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!

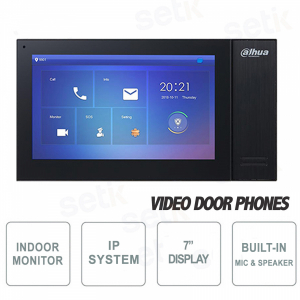

IP INTERNAL STATION DAHUA MONITOR SIP 7 "COLOR FOR INTERIORS - BLACK COLOR
DESCRIPTION:
Dahua's VTH2421FB-P station is one of the best internal PoE ip stations on the market.
Equipped with 7 "Capacitive Touch Screen LCD Display (1024x600), 6 inputs + 1 alarm output, Microphone, speaker and MicroSD slot.
There are some interesting functions such as alarm integration and LIVE connection with Dahua IP cameras, Echo cancellation and DND (do not disturb). It is able to receive notifications from the management center , leave video / text messages and make emergency calls .
Quality product. Dahua Security brand
Product details:
|
Data sheet
| Model | VTH2421FB-P | |
| System | Main Processor | Embedded Micro Processor |
| Operation System | Embedded LINUX OS | |
| Video | Compression | H.264 |
| Audio | Audio Compression | G.711 |
| Audio Input | All-direction Microphone | |
| Audio Output | Built-in Loudspeaker | |
| Bidirectional Talk | Support Dual-way Bidirectional talk | |
| Display | LCD Screen | 7 "1024x600, Capacitive |
| Operation Mode | Input |
Touch screen |
| Interface | Alarm input | 6 |
| Alarm output | 1 | |
| Network | Ethernet | 10M / 100Mbps Self-adaptive |
| network protocol | TCP / IP | |
| General | Installation | Surface & Desktop |
| Power | DC 12V | |
| Power Consumption | Standby ≤1W, Work ≤7W | |
| Working Temperature | -10 ° C ~ + 55 ° C | |
| Relative Humidity | 10% ~ 90% RH | |
| Dimensions | 119.6mm × 221.5mm × 21.5mm | |
| Weight | 0.35kg | |
Further details
 |
7 "TFT Touch Screen 1024x600 color display, Capacitive
|
 |
Supports two-way conversations |
 |
Ability to make group calls and emergency calls |
 |
LIVE connection with Dahua IP cameras |
 |
Connection via RJ-45 Ethernet LAN port (10M / 100Mbps) |
 |
Bidirectional audio (Integrated microphone and speaker) |
 |
6 Alarm inputs + 1 Alarm output |
 |
This product is covered by a 24 month warranty. |
