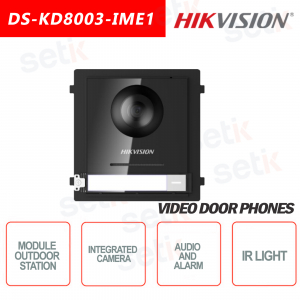

DS-KD8003-IME1 | OUTDOOR STATION MODULAR HIKVISION - AUDIO ALARM - 2 MEGAPIXEL HD CAMERA
|
CAMERA INTEGRATED INTO THE DEVICE: with 2 megapixel resolution, equipped with infrared illuminator |
|
ETHERNET CONNECTION: Connection via 10/100 Mbps self-adaptive Ethernet LAN port |
|
IN / OUT ALARM: 4 inputs and 2 alarm outputs |
|
REMOTE CONTROL: remote opening with monitor or app |
|
PROTECTION: ip65, protection against dust and water jets + 1 tampering tampering alarm |
|
SUPPLY: Power supply 12 VDC / PoE (IEEE 802.3af) |
Data sheet
| DS-KD8003-IME1 | |
| System parameters | |
| Processor: | Embedded MCU Processor |
| Operation system: | Embedded Linux operation system |
| Operation method: | Physical button |
| Video Parameters | |
| Room: | Low illumination 2 MP HD IR camera |
| Video Compression Standard: | H.264 |
| Resolution | Main stream: 1920 × 1080 Sub stream: 720 × 480 |
| BLC | supported |
| DNR | supported |
| WDR | supported |
| Anti-flicker | 50 Hz, 60 Hz |
| Field of view | Horizontal: 180 ° Vertical: 96 ° |
| Audio parameters | |
| Audio input |
Built-in omnidirectional microphone |
| Audio output |
Built-in loudspeaker (More than 85 dB within 20 cm) |
| Standard audio compression |
G.711 U |
| Audio compression rate |
64 Kbps |
| Audio quality |
Noise suppression and echo cancellation |
| Light supplement | |
| Light supplement mode |
IR supplement |
| Network parameters | |
| Ethernet | 10/100 Mbps self-adaptive Ethernet |
| Network protocol | TCP / IP, RSTP |
| Alarm parameters | |
| Tampering alarm | 1 |
| Interfaces | |
| Module-connecting | 1 |
| I / O input | 4 |
| Debug | 1 |
| Relay | 2 (30 V, 1 A) |
| General | |
| Physical button | 1 |
| Power supply | 12 VDC / PoE (IEEE 802.3af) |
| Power consumption | ≤ 10 W |
| Working temperature | -40 ° C to + 55 ° C (-40 ° F to 131 ° F) |
| Working Humidity: | 10% to 95% |
| Installation | Flush mounting, surface mounting |
| Dimension | 98mm × 99.8mm × 43.9mm (3.86 "× 3.93" × 1.73 ") |
| Weight | 554 g (with packaging) 375 g (without packaging) |
