External station with integrated camera with 1/2.8" CMOS sensor . Relay output for single-family door opener control, 1 alarm inputs, integrated speakers, 1 mechanical button, power supply 12 Vdc 1A/PoE ≤ 2.5 W (standby), ≤ 5 W (working). IP65 and IK10 protections . Dimensions 163.0mm×73.0mm×55.0mm
€224.00
€520.94 -57%LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
![meno](https://cdn.setik.biz/storage/images/site/Dahua_Logo.png)

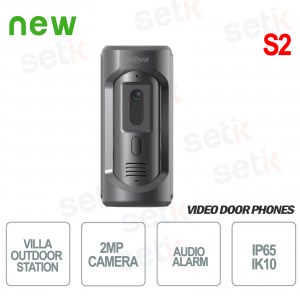

OUTDOOR STATION WITH 2MP CAMERA - AUDIO - SPEAKER - DAHUA
![External station - VTO2101E-P-S1 Postazione esterna per videocitofonia serie VTO2101E-P-S1](https://cdn.setik.biz/storage/images/Articoli/VTO2101E-P-S1_SMALL.jpg)
DESCRIPTION:
The outdoor station VTO2101E-P-S2 by Dahua, is one of the best stations on the market
Ideal for installations in villas, it is equipped with a camera with a 2Mp CMOS sensor.
IP65 / IK10 protection
Complete and quality product, Dahua brand.
Product Details:
![]()
|
Data sheet
Model | VTO2101E-P-S2 |
System | |
Main Processor | Embedded Processor |
Button Type | Mechanical |
Interoperability | ONVIF; CGI |
Network Protocol | RTSP; DNS; P2P; UPnP; RTP; RTMP; SIP; SSH; HTTP/HTTPS; ONVIF |
Basic | |
Room | 1/2.8" 2-MP CMOS HD Camera |
Field of View | H: 80°; V: 40°; D: 90° |
WDR | 120dB |
Noise Reduction | 3DNR; 2D NO |
Video Compression | H.264; H.265 |
Video Resolution | Main stream: 720p, WVGA, D1, and CIF; Sub stream: 1080p, WVGA, D1, QVGA, and CIF |
Video Frame Rate | PAL: 25 fps NTSC: 30fps |
Video Bit Rate | 768kbps–8Mbps |
Light Compensation | Auto IR |
Day/Night | Auto(ICR)/Color/B/W; Color/B/W |
Audio Compression | G.711a; G.711u; PCM |
Audio Input | 1 |
Audio Output | Built-in speaker |
Audio Mode | Two-way audio |
Audio Enhancement | Echo suppression/digital noise reduction; Echo suppression; Digital noise reduction |
Audio Bit Rate | 16kHz, 16bit |
Function | |
Communication Mode | Full digital |
Unlock Mode | Remote |
Leave Videos | Yes (SD card inserted in VTH is needed) |
Web Configuration | Yes |
Performance | |
Casing | Zinc alloy |
Port | |
RS485 | 1 |
Network Port | 1 × RJ-45 10/100Mbps Ethernet port |
Interface | |
Door Control | 1 |
Alarm In | 1 |
RS485 | 1 |
Alarm | |
Tamper Alarm | Yes |
General | |
Color appearance | Grey |
Power Supply | 1 |
Tamper Screw | 12VDC, 1A; PoE standards |
Power Adapter | Optional |
Installation | Surface Mount |
Certifications | THERE IS; FCC |
Accessories | Included: Alarm power ribbon cable, rain cover |
Product Dimensions | 163.0 mm × 73.0 mm × 55.0 mm (6.42" × 2.87" × 2.17") |
Protection | IP65 IK10 |
Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
Operating Humidity | 10%–90% (RH), non-condensing |
Lock Control | 1 |
Exit Button | 1 |
Alarm Input | 1 |
Operating Altitude | 0 m–3,000 m (0 ft–9,842.51 ft) |
Power Consumption | ≤ 2.5 W (standby), ≤ 5 W (working) |
Gross Weight | 0.8 kg (1.76 lb) |
Net Weight | 0.3 kg (0.66 lb) |
Further details
![]() | 2MP 1/2.8" CMOS image sensor. |
![]() | Present RJ-45 Ethernet LAN port (10M/100Mbps Self-adaptive) |
![]() | Present 1x RS485 |
![]() | 1 relay output for single-family door opener control, 1 alarm input |
![]() | 1x Mechanical call button |
![]() | Night vision. Car (ICR) of 5 Meters |
![]() | The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. ![]() |
![]() | IP65: Guarantees protection from dust and water jets (rain) |
![]() | IK 10 is the highest level of protection against direct damage. This allows the use of the camera even if there are risks of vandalism |
Power supply 12VDC 1A,PoE | |
![]() | Zinc |
![]() | This product is covered by a 24 month warranty. |
