IP PoE internal station Dahua VTH5421HB-W internal color monitor 7" TFT touch screen 1024X600, WIFI , H.264, 6 inputs + 1 alarm output. 1 audio input + 1 built-in speaker, Black colour , Connection with Dahua IP cameras, Alarm SOS, MicroSD slot, wall mounting
FIND INSTALLER
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!

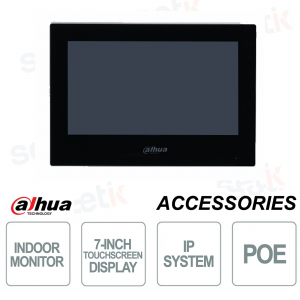

DAHUA IP INTERNAL STATION 7" TFT COLOR MONITOR FOR INDOORS - BLACK COLOR
DESCRIPTION:
The Dahua VTH5421HB-W station is one of the best internal PoE IP stations on the market.
Equipped with 7" Capacitive Touch Screen LCD Display (1024x600), 6 inputs + 1 alarm output and MicroSD Slot, WI-FI
There are some interesting functions such as alarm integration and LIVE connection with Dahua IP cameras, echo cancellation and DND (do not disturb). It is able to receive notifications from the management center , leave video/text messages and make emergency calls .
Quality product. Dahua Security brand
Product Details:
|
Data sheet
| VTH5421HB-W | |
| System | |
| Main Processor | Embedded processors |
| Operation system | Embedded Linux operation system |
| Interoperability | Support Onvif |
| Internet Protocol | RTSP, RTP, TCP, UDP, SIP |
| Basic | |
| Screen Type | Capacitive Screen |
| Display | 7 inch TFT display |
| Resolution | 1024(H)×600(V) |
| Audio Compression | G.711a; G.711u; PCM |
| Audio Input | 1 channel |
| Audio Output | 1 built-in speaker |
| Audio Mode | 2-way Audio |
| Audio Enhancement | Echo suppression |
| Audio Bit Rate | 16KHz, 16Bit |
| Function | |
| Communication Mode | Full digital |
| Information Release | Receive and view text information released by the management center |
| Leave Videos | Yes (insert an SD card into the indoor monitor) |
| DND Mode | Do not disturb period can be set; Do not disturb mode |
| Extension Quantity | Villa: 9 apartments: 4 Wi-Fi intercom: 1 main monitor, 2 extension monitors |
| Wifi | Yes |
| Wireless Standard | IEEE802.11b/802.11g/802.11n |
| Wireless Frequency Range | 2.412–2.472 MHz |
| Storage | Micro SD card (up to 64 GB) |
| Wireless Security Encryption | WPA/WPA2; WPA-PSK/WPA2-PSK |
| Performance | |
| Casing | PC + ABS |
| Port | |
| RS485 | 1 |
| Alarm Input | 6 |
| Alarm Output | 1 |
| Power Output | 1 (12V/200mA) |
| Door bell | Yes (Use alarm input port) |
| Network | One 10 /100 Mbps Ethernet |
| General | |
| Appearance Color | Black |
| Power Supply | 12VDC 1A Standard PoE (36–57V, 0.35A) |
| Installation | Surface mount |
| Certification | CE, FCC |
| Product Dimensions | 189.0 mm × 130.0 mm × 26.9 mm (7.44" × 5.12" × 1.06") |
| Operating Temperature | -10°C to +55°C (+14°F to +131°F) |
| Operating Humidity | 10%RH–90%RH (non-condensing) |
| Operating Altitude | Beneath 3000 m (9842.52 ft) |
| Power Consumption | ≤2W (standby), ≤5W (working) |
| Net Weight | 0.35 kg (0.78 lb) |
| Gross Weight | 0.56 kg (1.23 lb) |
Further details
 | 7" TFT Touch Screen 1024x600 color display, Capacitive
|
 | Supports 2-way Audio |
 | Connection via RJ-45 Ethernet LAN port (100Mbps) |
 | Two-way audio (integrated microphone and speaker) |
 | 6 Alarm Inputs + 1 Alarm Output |
 | This product is covered by a 24 month warranty. |
