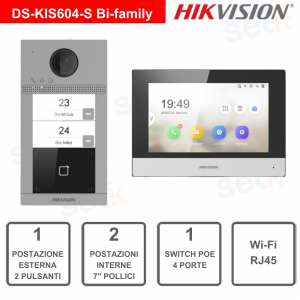

Hikvision DS-KIS604-S/Bi-family IP video intercom kit consisting of:
N.1 Outdoor station DS-KV8213-WME1 2 MP HD camera, Night Vision, Noise Suppression and Echo Cancellation, Access Control, PoE and Wi-Fi connectivity, IP 65 IK03
N.2 DS-KH6320-WTE1 WiFi Wireless PoE Intercom Monitor Intercom indoor station 7 Inch Touch Screen LCD display, MicroSD slot, remote unlocking via client software or mobile client, omnidirectional microphone and integrated speakers, screenshot capture and message storage on TF card, 8 Inputs + 2 Alarm Output, 1 RS485, DC 12V Power Supply, PoE (802.3af).
N.1 DS-3E0106HP -E network switch Poe 4 Doors
FIND INSTALLER
€980.94
€1,509.14 -35%
DS-KIS604-S/Bi-family | 2 MP IP VIDEO INTERCOM KIT
Hikvision DS-KIS604-S/Bi-family IP video intercom kit consisting of:
N.1 external station DS-KV8213-WME1 2 MP HD camera, Night Vision, Noise Suppression and Echo Cancellation, Access Control, PoE and Wi-Fi connectivity, IP 65 IK03. H.264 compression 129° horizontal and 75° vertical field of view, True WDR. Configuration via app. Material: Aluminium
No. 2 internal station DS-KH6320-WTE1 WiFi Wireless PoE Monitor Intercom 7 Inch Touch Screen LCD Display, 1024x 600 MicroSD slot, remote unlocking via software client or mobile client, integrated omnidirectional microphone and speaker, screenshot capture and message storage of up to 200 on TF card, 8 inputs + 2 alarm outputs, 1 RS485, DC 12V power supply, PoE (802.3af).
N.1 DS-3E0106HP -E network switch Poe 4 Doors
TWO-FAMILY VIDEO INTERCOM KIT COMPRISING: |
N.1 DOOR STATION WITH TWO BUTTONS: DS-KV8213-WME1
|
N.2 INTERNAL STATION WITH 7" INCH TOUCH SCREEN DS-KH6320-WTE1
|
N.1 NETWORK SWITCH 4 POE PORTS DS-3E0106HP -E
|
Data sheet
Indoor Station
- Operation system: Linux
- ROM: 32MB
- RAM: 128MB
- Processor: Embedded high performance processor
Display parameters
- Screen size: 7-inch
- Operation method: Capacitive touch screen
- Type: Colorful TFT
- Resolution: 1024 × 600
Video parameters
- Lens: /
- Resolution: /
- FOV: /
- Wide dynamic range (WDR): /
- Standard video compression: /
- Focal length: /
Audio parameters
- Audio input: 1 built-in omnidirectional microphone
- Audio compression standard: G.711U/G.711A
- Audio output: 1 built-in loudspeaker
- Audio compression bitrate: 64 Kbps
- Audio quality: Noise suppression and echo cancellation
- Volume adjustment: Adjustable
Capacity
- Message capacity:
- TF card inserted: 200 captured pictures, 200 alarm records
- Without TF card: 2 MB RAM for picture storage; The storage number is decided by the picture size, 200 alarm records
- Notice capacity: 200
- Linked indoor extensions capacity: 16
- Linked doorphone capacity: 17
- Linked network camera capacity: 16
Network parameters
- Network protocol: TCP/IP, SIP, RTSP
- Wi-Fi: 2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
- Bluetooth: /
- 3G/4G: /
- Zigbee: /
Device interfaces
- Alarm input: 8
- Network interface: 1 RJ-45 10/100 Mbps self-adaptive
- TAMPER: /
- RS-485: 1 RS-485 (Half duplex)
- USB: /
- TF card: Support TF card, up to 128G
- Alarm output: 2
- Lock control: 2 relays, Max. 30 VDC 0.3 A
General
- Button: /
- Installation: Surface mounting
- Indicator: /
- Weight:
- Net weight: 355 g (0.8 lb)
- Gross weight: 683 g (1.5 lb)
- Protective level: /
- Working temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working humidity: 10% to 90% (no-condensing)
- Dimension (W × H × D): 200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")
- Battery: /
- Application environment: Indoor
- Power consumption: ≤ 5 W
- Language:
- English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese (Brazil), Spanish, Hebrew, Romanian, Turkish, Estonian, Danish, Swedish, Norwegian, Finnish, Vietnamese, Croatian , Slovenian, Serbian, Arabic, Portuguese (Portugal), Lithuanian, Uzbek, Kazakh, Mongolian, Ukrainian
Outdoor Station
System Parameters
- Operation System : Embedded Linux operation system
- Operation Method : Two-button
- Flash : 32M
- RAM : 256M
Video Parameters
- Camera : 2MP HD camera
- Night Vision : Low illumination IR supplement mode: 3 m
- BLC : Support
- DNR : Support
- WDR : True WDR
- Field of View : Horizontal: 129°, Vertical: 75°
- Video Compression Standard : H.264
- Streams :
- Main stream: 1080p@30fps, 720p@25fps
- Sub stream: D1@25fps
- Resolution :
- Main stream: 1920 × 1080p, 720p
- Sub stream: 704×576
- Motion Detection : Support
- Anti-flicker Frequency : 50 Hz, 60 Hz
Audio Parameters
- Audio Intercom : Two-way audio communication
- Audio Input : Built-in omnidirectional microphone
- Audio Output : Built-in loudspeaker
- Audio Compression Standard : G.711 U
- Audio Compression Rate : 64 Kbps
- Audio Quality : Noise suppression and echo cancellation
Network Parameters
- Wired Network : 10/100 Mbps Ethernet
- Network Protocol : TCP/IP, RSTP
Access Control Parameters
- Reading Frequency : 13.56 MHz
- Card Type : Mifare card
Interfaces
- RS-485 : 1
- Wi-Fi : 2.4G Wi-Fi
- Debugging Port : 1
- TF Card : 0
- Door Contact Input : 2
- Exit Button Input : 2
- Grounding : 1
- Physical Button : 2
- Tamper Switches : 1
- Door Control : 2, breakdown voltage: 36 V
Performances
- Card Capacity : Max. 10000
- User Capacity : Max. 2000
- Linked Indoor Station : 2
- Linked Sub Door Station : Max. 16
- Linked Doorphone : Max. 8
- Protocol : ISAPI, RTSP, STMP, SNMP
Unlock Door
- Unlock Methods :
- Presenting cards
- Via Client Software
- Via App
- Via indoor station
General
- Protection Level : IP65, IK08
- Indicator : 3
- Power Supply : IEEE802.3af, PoE standard, 12 VDC
- Power Consumption : ? 10W
- Working Temperature : -40° C to 53° C (-40° F to 127.4° F)
- Working Humidity : 10% to 95%
- Installation : Surface mounting/ Flush mounting
- Dimension : 174 mm × 91 mm × 29 mm
