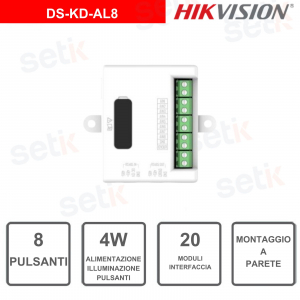

DS-KD-AL8 | BUTTON EXTENSION MODULE - 8 BUTTONS
DS-KD-AL8 Expansion M odule up to 8 buttons, supports cascade connection of up to 20 interface modules. Power supply for button lighting up to 4W. Wall mounting. Maximum power consumption of 6 W (full load power consumption of a cascade of 20 modules).
|
BUTTON EXPANSION: Can extend up to 8 buttons when used with a modular door station. |
|
BUTTON LIGHTING: Supports up to 4W power for button lighting. |
Data sheet
| System Parameters | Details |
|---|---|
| Operating System | Embedded operation system |
| CPU | Embedded MCU Processor |

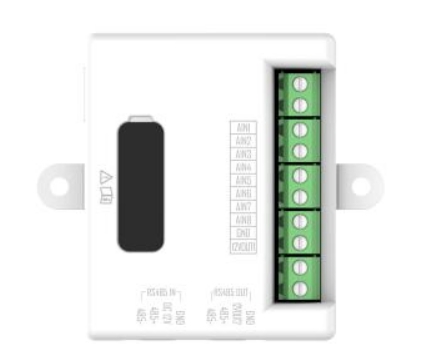

| Device Interfaces | |
| Alarm Input | 8 |
| DIP Switches | 1, 8 bits |
| Modular Connection Interface | 2 (485 + 12V DC) |
| Power Supply Output | Max to 4W, 12VDC |
| General | |
| Power Consumption | ≤ 6 W (full load power consumption of 20-module cascade) |
| Installation | Surface mounting |
| Weight (with package) | 100 g |
| Weight (without package) | 32.2 g |
| Working Temperatures | -30° C to 60° C (-22° F to 140° F) |
| Working Humidity | 10% to 90% |

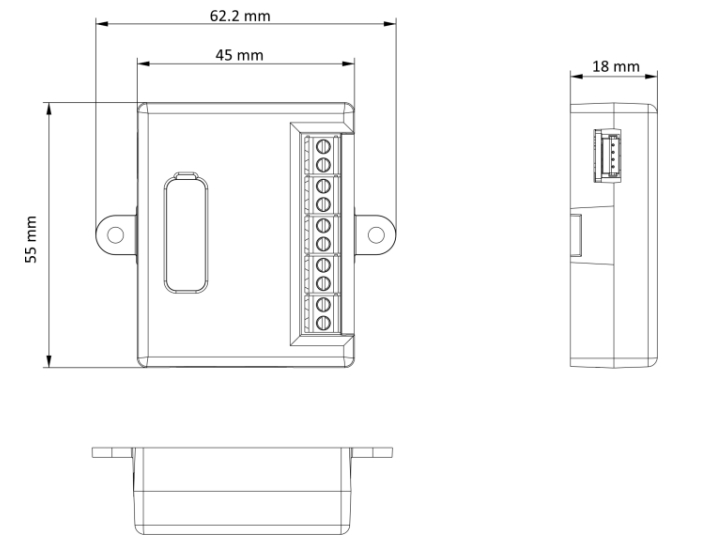

| Dimensions | 62.2 mm × 55 mm × 18 mm (2.45" × 2.17" × 0.71") |
