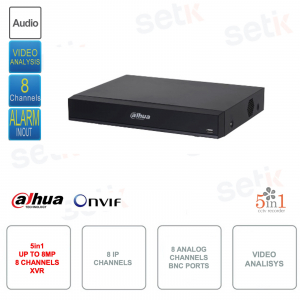

XVR IP ONVIF - 5in1 - Up to 8MP 4K Ultra HD - 8 IP channels and 16 analog channels - Audio and Alarm - Video Analysis

DAHUA SERIES X

If you want to learn more about this new series of Dahua 5 in1 XVR recorders , read the article we wrote!

Click here

Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on people and vehicles with high accuracy, enabling users to take quick action on defined targets. Based on Dahua's advanced technologies, WizSense provides smart and simple products.

New XVR series equipped with SMD Plus on all channels to benefit customers from AI upgrade. The series is designed to reduce false alarm rates and human vigilance costs, thereby bringing great value to customers looking for accurate human/vehicle alarm products to enhance the security level of various indoor and outdoor facilities.

All Onvif , the absolute standard for IP devices, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a device for its own sake that can never be used together with recording systems

This device supports Onvif version 21.12.

AI Coding: What is it about?

Compared with H.265, the AI codec can reduce up to 50% in bit rate and storage requirements without loss of decoding compatibility, providing clear human and vehicle details.

Recording resolution:

1.CVI: 4K@25/30fps; 6MP@20fps; 5MP@25fps; 4MP@25/30fps; 1080p@25/30fps; 720p@25/30fps; 720p@50/60fps.

2.TVI: 4K@15fps; 5MP@20fps; 4MP@25/30fps; 3MP@25/30fps; 1080p@25/30fps; 720p@25/30fps.

3.AHD: 4K@15fps; 5MP@20fps; 4MP@25/30fps; 3MP@25/30fps; 1080p@25/30fps; 720p@25/30fps.

8 analog channels (BNC Ports) +

8 IP channels, extendable to 16 IP channels (analog channels are converted to IP channels)
Bandwidth 128Mbps in / 128Mbps out

Possibility of connecting POS devices, obtaining all the information superimposed on the channel.

Pos search option by date or transaction

Internet Of Things (IoT):

Possibility to connect wireless external sensors, such as panic buttons, via USB gateway or gateway cameras

IoT Manager:

- Real-time view: Monitor and preview all IoT information in real time

- IoT Information Search: Detailed IoT information and movies corresponding to an access point search

- Sensor Manager: Includes sensor pairing, status and configurations of IoT devices

This video recorder supports all - channel Video Analysis (IVS) , Face Detection and Smart Search

VIDEO ANALYSIS (IVS)

Perimeter protection
Face detection and recognition
SMD Plus

Supports cameras from various brands: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and others

(operation with the models proposed here is to be checked on a case-by-case basis)

Supports 1x Audio / Video SATA Hard Drive up to 16TB!

CAUTION: Use specific audio/video discs on ZVR systems.
For more information, read our dedicated article .

HDMI port with resolution up to 4K

New ULTRA HD 4K Technology!
Even higher resolution than FULL-HD!
Greater detail available, greater sense of depth and realism.

VGA output with resolution up to 1920x1080

This DVR features 1 RCA Audio IN and 1 RCA Audio OUT

8 coaxial BNC audio inputs.

This product is covered by a 24-month manufacturer's guarantee.
