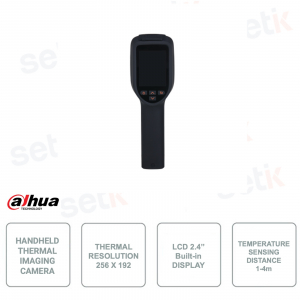

Dahua portable thermal imaging camera - For measuring body temperature - Thermal resolution 256 x 192
Dahua - TPC-HI20 - Portable thermal imaging camera - Ideal for measuring body temperature / fever - 256x192 uncooled VOx thermal sensor - 3.5mm thermal optics - 2.4 inch LCD display - Detection distance 1-4m - Optical resolution: 480x640 - Color reduction noise - H.265 codec - Battery life: 8 hours - Recharge in 2.5h - Supports 256GB MicroSD (not included) for images and videos - MicroUSB port - IP54 protection - Includes power supply - Acoustic alarm - Measurement precision: ± 2°C - Weight 350g.
FIND INSTALLER
€996.50
€2,491.24 -60%LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives
Description Product Details Data Sheet Further Details Download
PORTABLE THERMOSCANNER - THERMAL OPTICS 3.5MM - DAHUA - TPC-HI20

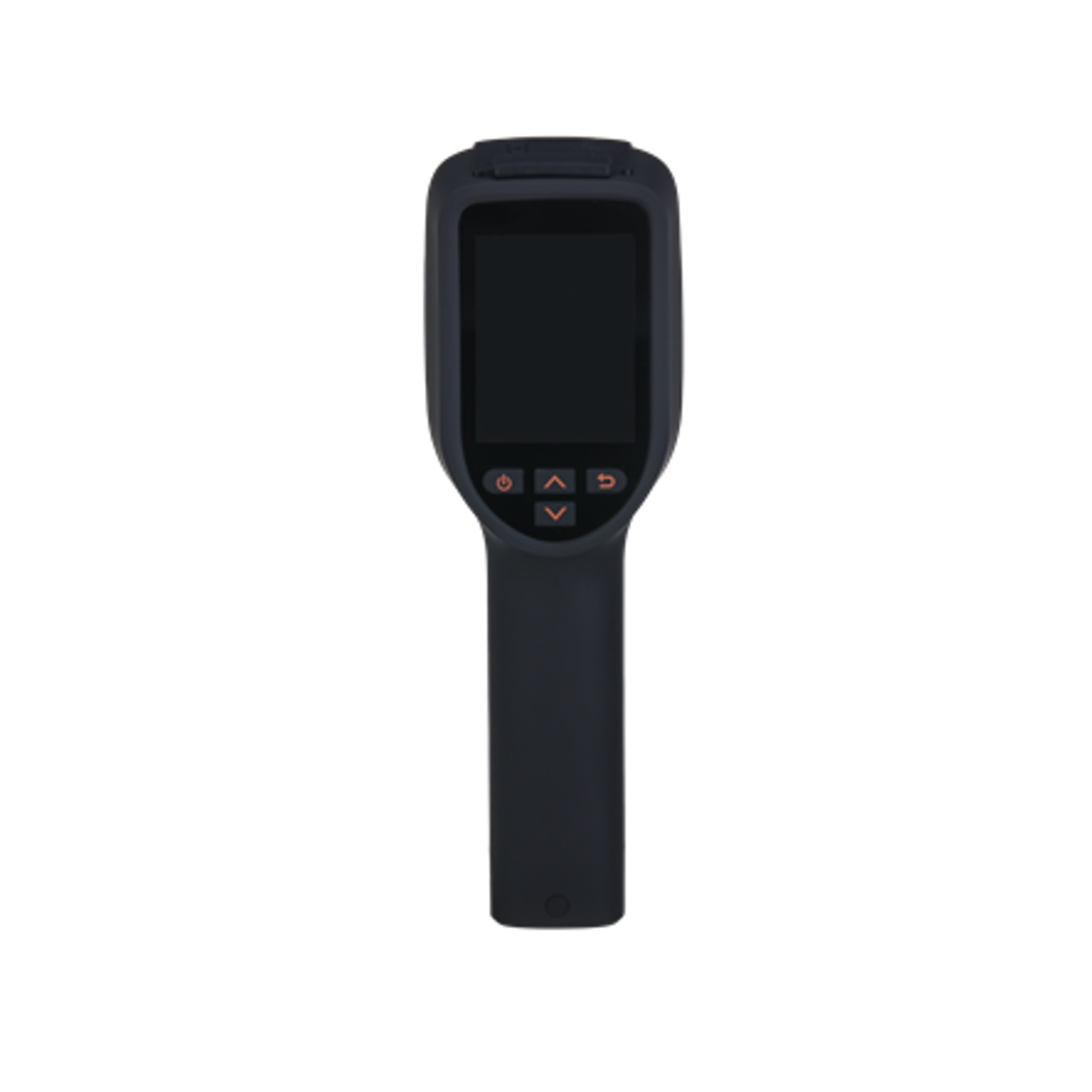

Portable thermal imaging camera - Dahua - TPC-HI20
Ideal product for body temperature/fever measurement - 256x192 uncooled VOx thermal sensor - 3.5mm thermal optics - Spectral range: 8 μm ~ 14 μm - 2.4 inch LCD display with 240x320 resolution - Thermal field angle: 37.8° x 50.6° - Thermalized lens without focus - Detection distance: from 1 to 4m - Optical resolution: 480x640 - Noise reduction - Codec H.265 - Battery life: 8 hours - Recharge in 2.5h - Supports 256GB MicroSD (not included) for image and video storage - MicroUSB port - IP54 degree of protection - Power supply: 5V DC or power supply included - Acoustic alarm - Measurement accuracy: ± 2°C - Weight 350g.
Product details
- Thermoscanner for detecting body temperature and fever - Dahua - TPC-HI20
- Thermal sensor: VOx, uncooled, with 256x192 resolution
- Pixel size: 12μm
- Thermal Sensitivity (NETD): ≤50mk (f/1.0)
- Spectral range: 8μm ~ 14μm
- Thermal focal length: 3.5mm
- Thermal field angle: 37.8° x 50.6°
- Thermalized lens without focus
- Noise reduction function
- Temperature sensing distance from 1 to 4 meters
- Temperature measurement accuracy: ± 2°C
- Video compression: H.265 codec
- Optical resolution: 480x640 at 25 frames per second
- Image format JPEG
- 2.4" LCD display (resolution : 240x320)
- It has an acoustic alarm
- SD Card Slot 256GB (SD Card is not included)
- 1x Micro USB port
- Power Supply: 5V DC (or included power adapter)
- Power Consumption: <1W
- Rechargeable battery (max autonomy: 8h)
- Battery recharge time of 2.5 hours
- Operating temperature: -20°C ~+550°C
- Relative Humidity: <90%.
- IP54 level protection

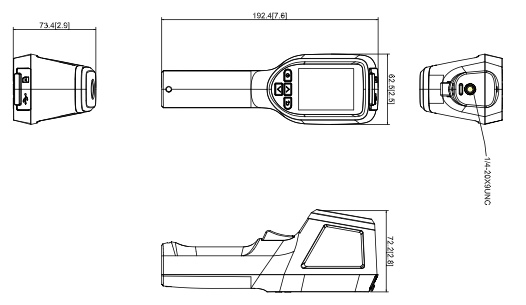

- Dimensions: 62.5 (W) x 192.4 (H) x 72.2 mm
- Weight: 350g
- Power supply: included
Data sheet
| TPC-HI20 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
DetectorType |
Vanadium Oxide Uncooled Focal Plane Detector |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Effective Pixels |
256×192 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Pixel Pitch |
12 μm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Spectral Range |
8μm~14μm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Thermal Sensitivity (NETD) |
≤40 mK@f/1.0 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Focal Length |
3.5mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Field of View |
H: 37.8°; V: 50.6° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Focus Mode |
Thermalized |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Thermal Close Focus Distance |
0.5m |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Openings |
F1.0 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Noise reduction |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Color Palettes |
4 (Whitehot/Blackhot/Rainbow/Ironbow) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Temperature Range |
Download the English brochure
 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
