DS-K1T804AMF - HIKVISION - Access control device - Wi-Fi - Authentication by fingerprint (integrated optical module) and/or Mifare1 card - Integrated 2.4 Inch LCD-TFT 320x240 display - 3,000 fingerprints - 3,000 cards -100,000 events - TCP/IP and WIFI communication - Supports Wiegand - RS-485 - USB - Tamper - Loudspeaker and buzzer - Alarm in/out interface - Power and status indicator - Ideal for wall installation - Black colour.
FIND INSTALLER

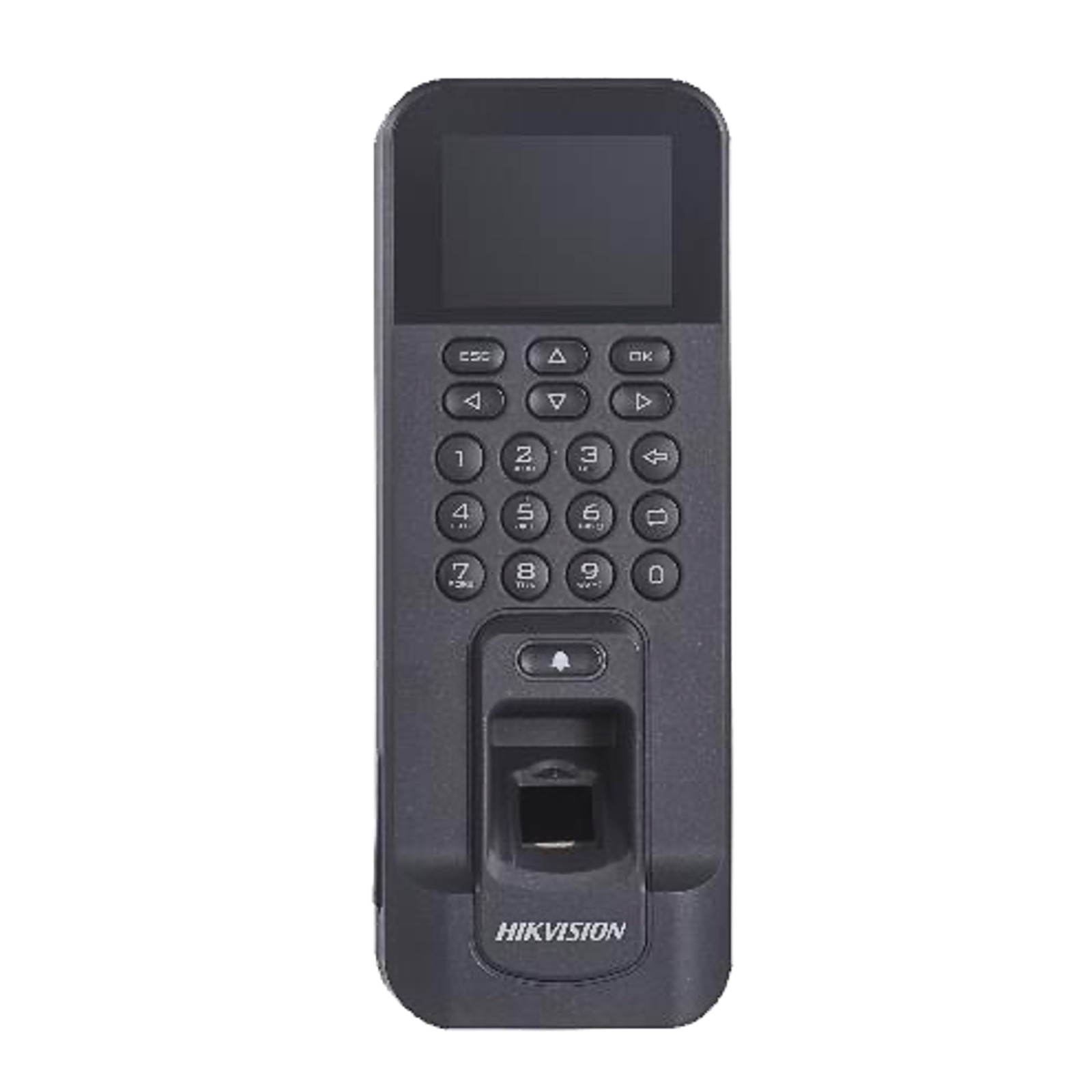

DS-K1T804AMF | HIKVISION | ACCESS CONTROL TERMINAL - WIFI - FINGERPRINT READER - MIFARE1 CARD READER - 2.4 INCH LCD DISPLAY
Hikvision's DS-K1T804AMF access control terminal allows access via authentication which can be done by fingerprint or / Mifare1 card reader - RS485 and Wiegand interface - 3,000 users - 3,000 recordable fingerprints - 100,000 recordable events - WIFI and TCP/IP - Alarm: Output/Input - USB - 2.4 inch 320x240 LCD TFT display - 1 buzzer - 1 loudspeaker - Tamper - USB - Power supply: 12DC V/1A - Status and power indicator For wall mounting Black color - HIKVISION - DS-K1T804AMF
MAIN FEATURES:
- Access control terminal - Hikvision - DS-K1T804AMF
- Mifare M1 card recognition module
- Fingerprint scan module
- Storage capacity:
- 3,000 tiles
- 3,000 fingerprints
- 100,000 events - Alarm input/output interface
- Wiegand support
- TCP/IP communication protocol
- Wifi
- Integrated 2.4 inch 320x240 TFT LCD display
- 1 loudspeaker, 1 buzzer
- Power and status indicator

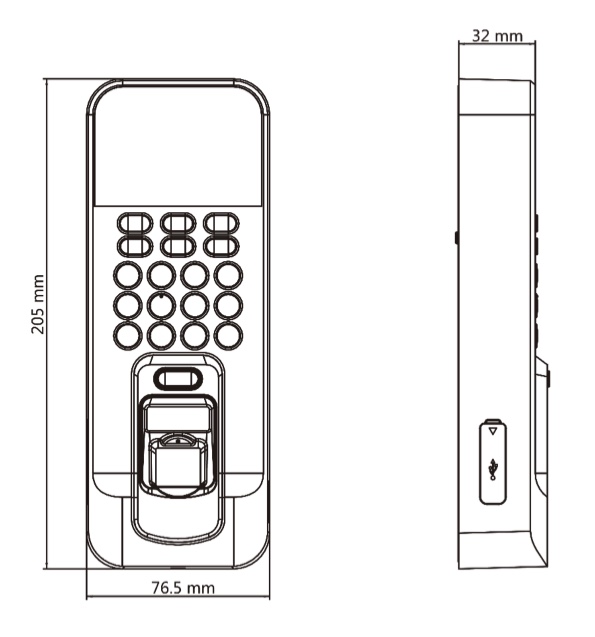

- Dimensions: 205mm × 76.5mm × 37mm
- Operating temperature: -10°C to +55°C
- Ideal for wall installation
- Black colour
Data sheet
| DS-K1T804AMF | |
Display | |
Screen size | 2.4-inch |
Resolution | 320×240 |
Type | LCD-TFT display screen |
Audio | |
Audio outputs | 1 loudspeaker, 1 buzzer |
Network | |
Wired networks | TCP/IP, 10/100Mbps, self-adaptive |
Wifi | Support |
interface | |
Network interface | 1 |
RS-485 | 1 |
Wiegand | 1 |
Lock control | 1 |
Exit button | 1 |
Door contact input | 1 |
Alarm input | 1 |
Alarm output | 1 |
TAMPER | 1 |
USB | 1 |
Capacity | |
Card capacity | 3000 |
Fingerprint capacity | 3000 |
Event capacity | 100,000 |
Authentication | |
card type | Mifare 1 card |
|
Card reading distance | 0 to 4.5cm |
Card reading duration | ? 1s |
Fingerprint module | Optical fingerprint module |
Fingerprint comparing mode | 1:1 and 1:N |
Fingerprint recognition duration | ? 1s |
General | |
Indicator | Power/status (red/green) |
power supplies | 12VDC/1A |
Working temperatures | -10°C to +55°C (14°F to +131°F) |
Working humidity | 10% to 90% (no condensing) |
Color | Black (included), gold (optional), silver (optional), white (optional) |
Dimensions | 205mm × 76.5mm × 37mm (8.07" × 3.01" × 1.46") |
Installation | Surface mounting |
