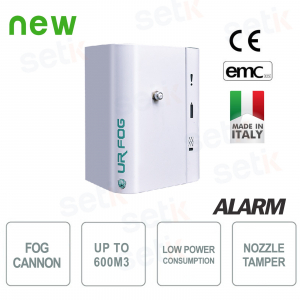

UR FOG FAST 03 1C Fog-free Antitheft Device, ideal for protecting small / medium areas (shops, apartments, ATMs). Shoot up to 200/300 m3 of thick fog in about 15 seconds. Equipped with 1 cylinder , wall or corner installation. F3SN2201C
https://www.setik.biz/en/fog-cannons/2574-ur-fog-f3sn2201c-Fogging-ur-fog-fast-03-1c-antifurto-.html
€1,234.03
€1,451.80 -15%
taxes included
PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
HELVETIA-UR FOG PARTNERSHIP: Do you have a business? Discover the benefits you can get from this collaboration! |
FAKE ANTI-THEFT FAST 03 1C UR FOG
URFog FAST 03 1C |
Ideal misting system to protect small / medium areas such as shops, houses, ATMs.
It shoots up to 200/300 m3 of dense fog in about 15 seconds, it is equipped with a single low-pressure removable mist cylinder and can be installed either on the wall or at an angle.
Product details
- Nebbiogeno - UR FOG
- Emission up to 600m3 of fog (with full cylinder)
- Smoke-like liquid certified as not harmful to health
- Single cylinder 400ml F3SNBOMTS (Vertical) (included)
- Possibility of mounting F3SNBOMTSOR horizontal cylinder
- Power supply: 220 or 110V
- It meets the standards: CE and EMC
- It meets European standards
- Can also be installed at an angle
- White color
- Dimensions: 26.5x23.0xh34.5
- Weight: 10kg
Data sheet
| Model | F3SN2201C |
| Machine | |
| WEIGHT OF THE FOG MACHINE | About 9Kg |
| WEIGHT WITH PACKAGING | About 11 kg |
| UNITS ON ONE PALLET 100X120 | 30 |
| DIMENSION OF THE MACHINE | 26,5x23,0xh34,5 |
| DIMENSION OF THE PACKAGING | 32,0x25,0xh43,0 |
| Colors | white |
| WORKING TIME WITHOUT MAINS POWER | About 2 hours |
| HEAT UP TIME FROM COLD | about 70 minutes |
| VERTICAL OR CORNER MOUNTING | yes |
| HORIZONTAL MOUNTING | yes |
| SERIAL / USB PORT FOR MONITORING | yes |
| NOZZLE TAMPER | yes |
| SERIAL BUS FOR STANDARD PROTOCOL | yes |
| Fog Generator | |
| NEW HEATING SYSTEM PLUS | yes |
| MAX FOG SINGLE SHOT 1.5 M VISIBILITY | up to 300 m3 |
| MAX FOG SINGLE SHOT ZERO VISIBILITY | up to 200 m3 |
| MAX SECONDS OF FOG | 15 sec |
| MAX FOG EMISSION WITH FULL FOG TANK | 600 m3 |
| NUMBER OF FLUID TANK | 1 |
| FLUID TANK CAPACITY | 400 ml |
| SHOOTING SPECIFICATION | programmable in seconds |
| CYLINDER MODEL | A 03 AH 03 |
| CYLINDER INCLUDED | 1 |
| DOUBLE FOG TANK ADVANTAGE | NO |
| Electrical Specifications | |
| POWER SUPPLY | 220 OR 110V |
| AVERAGE POWER CONSUMPTION | 37W |
| BACK UP BATTERY | YES |
| OPTIONAL DEMO / ANTIROBBERY KIT | YES |
| WIRED INPUTS ARMING AND SHOOTING | YES |
| WIRED OUTPUTS | YES |
| STANDARD COMMUNICATION PROTOCOL | YES |
| Standards | |
| COMPLIES WITH EUROPEAN CE | YES |
| FOG FLUID IS CERTIFIED | YES |
| MEETS EUROPEAN STANDARD | YES |
More details
 | For operation: |
To operate the fog generator, it is necessary:
- 230V power supply (for the heat exchanger heating system)
- 6 stylus batteries (for cylinder engines)
- 12V power supply for electronic card power supply
It is recommended to supply the 12V via the alarm control panel.
For the connections between the alarm control panel - switches, etc., refer to the installation and use manual.
 | The fastest fog generators in the world |
Up to 200 m3 in 15 seconds. It is impossible to steal what is impossible to see this sentence has a great sense when we mean UR Fog since in a few seconds you can not see anything.
The densest fog
Thanks to the innovative fluid formulation with a high percentage of glycol, it ensures a dense fog that is totally impenetrable to visibility.
Removable tanks
Removable and without need for recharging.
Low energy consumption
The perfect insulation system offers very low energy consumption which saves on costs compared to other spray systems.
Nozzle tamper
Another exclusive, patented and very useful advantage that automatically detects if the nozzle is tampered with and sends an alert signal
Smart bus standart protocol
A unique serial bus to connect to the electronic card an additional card that allows the machine to be easily interfaced with alarms and control the nebulization system even remotely. A standard protocol for all machines.
Innovative technology and performance
UR FOG misting systems are innovative in their technology and performance, in order to guarantee maximum protection against theft.
Safe and certified
UR FOG spray systems are certified according to European legislation. The fog fluid is tested and is absolutely safe. They are not dangerous for objects, animals, people and leave no residue.
Accessories
UR-FOG ACCESSORIES:
 | F01STH - Wall bracket for FAST 01 |
| F03STH - Wall bracket for FAST 03 - EASY 03 |
| F02STH - Wall bracket for FAST 02 |
| F23STHPRO - Wall bracket for FAST PRO 02/03 |
 | FELSTH - Ellipse line bracket |
 | FPU4000ST - FAST 4000 PUMP PRO PLUS bracket |
 | FPUM - PUMP 4000 handle |
 | F23PRUG7 - 7CM Nozzle Extension |
 | F1MO3UG3 - 3-hole nozzle |
 | F23KITD - Demo Kit for FAST 01/02 and FAST / FAST PRO |
 | URTR - Remote control with receiver |
 | URT - Additional remote control |
 | F! 23KEY - Armament key |
 | F23KITA - Anti- theft cable |
 | F23PA - Anti- theft button |
 | URRS232 - rs232 5 / 12V transceiver |
 | URRE - Relay Card |
 | URCL - Cloud Lan card |
 | F1SO4PS - Power supply |
 | F1M04BATT - Battery 2Ah |
Download
No brochures available
WHO IS UR FOG?
UR Fog is one of the most solid Italian companies in the fog systems market.
The UR FOG team is made up of professionals and engineers with over 20 years of experience in both new product development and distribution management worldwide. From 2012 to date they have obtained several patents, created new technologies such as single and double cylinder technology, born at the very beginning of the activity and introduced important innovations such as the adjustable nozzle.
One of the strengths of this company and thanks to which they are often chosen, is the speed of ejection fog, a critical aspect for the products of many other competing brands.
