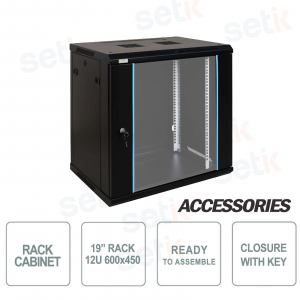

Pulsar wall cabinet to assemble Rack 19 "12U / 600x450

Pulsar wall cabinet to assemble Rack 19 "12U / 600x450
-57%

Pulsar RWA1264 19 "Rack metal enclosure wall cabinet box to be assembled to protect DVR surveillance recorders, access control, intrusion detection, RVL, LAN etc. Front door with key lock (2 keys included), possibility to add RAZB16 lock on the side panel (additional accessory) Dimensions 12U / 600x450

Reference: RWA1264

Brand: Pulsar

EAN: 5902135314333

FIND INSTALLER

€194.33

€451.94 -57%
taxes included
Tax included
  Hurry up! Only a few pieces left in our warehouse!
 Available
discover the available quantity


METAL ENCLOSURE 19 "RACK CABINET TO ASSEMBLE - 12U / 600X450 - PULSAR

Made by IIYAMA Metal container box to be assembled - Pulsar
Useful for enclosing and protecting DVRs, security recorders, access control, anti-intrusion, RTV, LAN
Front door with key lock (two keys included) - Dimensions: 600x450 12U Rack 19 "
Possibility of adding an additional RAZB16 closure laterally

Product details

Pulsar armadio a muro da assemblare

  • 19 "Rack wall cabinet to assemble - Pulsar
  • Useful for enclosing security recorders, access control, anti-intrusion, RVL, LAN
  • Front door with key lock (2 keys included)
  • Possibility to add RAZB16 closure to the side panel (additional accessories)
  • Aesthetically refined and resistant to mechanical damage
  • Wall mountable
  • Dimensions: Mounting W = 19 ", H = 12U, D = 271 mm / External W = 600, H = 636, D = 450 [mm, +/- 2]
  • Material: cold produced steel SPCC 1.2mm, 1.5mm - RAL 9004
  • Supported weight: 70kg

Data sheet

Model RWA1264
Mounting Dimensions W = 19 ", H = 12U, D = 271mm
External dimensions: W = 600, H = 636, D = 450 [mm, +/- 2]
Net / gross weight 23.2 / 24.7 [kg]
Materials

- RACK mounting rails: cold-rolled steel SPCC 1,5mm

- top and bottom panel: cold-rolled steel SPCC 1,2mm RAL 9004

- frame: cold-rolled steel SPCC 1,2mm RAL 9004

- front door: 5mm toughened glass / SPCC 1,2mm RAL 9004

- side panels: cold-rolled steel SPCC 1,2mm RAL 9004

- rear plate: cold-rolled steel SPCC 1,2mm RAL 9004

Static load: 70 kg
Use: inside, IP20
Notes:

- adjustable distance between front and rear RACK rails (range - see point 5.1)

- ventilation holes in the top panel (2 x 105x105mm - mounting dimensions)

- cable ducts in the top and bottom panel (340x56mm)

- lockable front door - repeatable code (2 keys included)

- possibility of reverse front door - opening left / right

- side panels - lock assembly possible - RAZB16 (additional equipment)

- possibility of disassembly rear panel (518x567mm) - ready-to-assemble

Declarations

RoHS

Further details



Download

English brochure
English instructions
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
