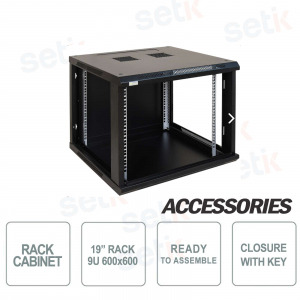

Pulsar RWA966 Rack 19 "metal box wall cabinet to be assembled to protect DVR surveillance recorders, access control, anti-intrusion, RVL, LAN etc. Front door with key lock (2 keys included), possibility to add RAZB16 closure on the side panel (additional accessory) Dimensions 9U / 600x600
€171.86
€399.67 -57%CONTENITORE METALLICO ARMADIO RACK 19" DA ASSEMBLARE - 9U/600X600 - PULSAR
Utile per racchiudere e proteggere DVR registratori di sicurezza, controllo accessi, antintrusione, RTV,LAN
Porta anteriore con chiusura a chiave (due chiavi comprese) - Dimensioni: 600x600 9U Rack 19"
Possibilità di aggiungere lateralmente chiusura supplementare RAZB16
Dettagli prodotto
- Armadio a muro Rack 19" da assemblare - Pulsar
- Utile per racchiudere registratori di sicurezza, controllo accessi, antintrusione, RVL, LAN
- Porta anteriore con chisura a chiave (2 chiavi comprese)
- Possibilità di aggiungere al pannello laterale, chiusura RAZB16 (accessori supplementari)
- Esteticamente curato e resistente a danneggiamenti meccanici
- Installabile a muro
- Dimensioni: Montaggio W=19", H=9U, D=447 mm / Esterne W=600, H=502, D=600 [mm, +/-2]
- Materiale: acciaio prodotto a freddo SPCC 1,2mm, 1,5mm - RAL 9004
- Peso supportato: 70kg
Scheda tecnica
Model | RWA966 |
Mounting Dimensions | W=19", H=9U, D=447mm |
External dimensions: | W=600, H= 502, D= 600 [mm, +/-2] |
Net/gross weight | 23,5 25 [kg] |
Materials |
- RACK mounting rails: cold-rolled steel SPCC 1,5mm - top and bottom panel: cold-rolled steel SPCC 1,2mm RAL 9004 - frame: cold-rolled steel SPCC 1,2mm RAL 9004 - front door: 5mm toughened glass / SPCC 1,2mm RAL 9004 - side panels: cold-rolled steel SPCC 1,2mm RAL 9004 - rear plate: cold-rolled steel SPCC 1,2mm RAL 9004 |
Static load: | 70 kg |
Use: | inside, IP20 |
Notes: |
- adjustable distance between front and rear RACK rails - ventilation holes in the top panel (2 x 105x105mm - mounting dimensions) - cable ducts in the top and bottom panel (340x56mm) - lockable front door – repeatable code (2 keys included) - possibility of reverse front door – opening left/right - side panels - lock assembly possible - RAZB16 (additional equipment) - possibility of disassembly rear panel (518x434mm) - ready-to-assemble |
Declarations |
RoHS |
