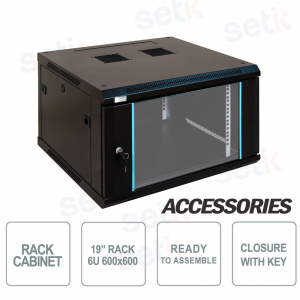

Pulsar wall cabinet to assemble Rack 19 "6U / 600

Pulsar wall cabinet to assemble Rack 19 "6U / 600
-57%

Pulsar RWA666 Rack 19 "metal box wall cabinet to be assembled to protect DVR surveillance recorders, access control, anti-intrusion, RVL, LAN etc. Front door with key lock (2 keys included), possibility to add RAZB16 closure on the side panel (additional accessory). Dimensions 6U / 600x600

Reference: RWA666

Brand: Pulsar

EAN: 8057457616805

FIND INSTALLER

€161.28

€375.08 -57%
taxes included
Tax included
  Hurry up! Only a few pieces left in our warehouse!
 Last items in stock
discover the available quantity


METAL CONTAINER CABINET RACK 19 "TO ASSEMBLE - 6U / 600X600 - PULSAR

Made by IIYAMA Metal container box to assemble - Pulsar
Useful to enclose and protect DVR security recorders, access control, anti-intrusion, RTV, LAN
Front door with key lock (two keys included) - Dimensions: 600x600 6U Rack 19 "
Possibility to add laterally additional RAZB16 closure

Product details

Pulsar armadio a muro da assemblare

  • Rack 19 "wall cabinet to assemble - Pulsar
  • Useful for enclosing security recorders, access control, anti-intrusion, RVL, LAN
  • Front door with key lock (2 keys included)
  • Possibility to add RAZB16 closure to the side panel (additional accessories)
  • Aesthetically cared for and resistant to mechanical damage
  • Can be installed on the wall
  • Dimensions: Assembly W = 19 ", H = 6U, D = 447 mm / External W = 600, H = 372, D = 600 [mm, +/- 2]
  • Material: cold-rolled steel SPCC 1.2mm, 1.5mm - RAL 9004
  • Supported weight: 70kg

Data sheet

Model RWA666
Mounting Dimensions W = 19 ", H = 6U, D = 447mm
External dimensions: W = 600, H = 372, D = 0 [mm, +/- 2]
Net / gross weight 20.2 21.7 [kg]
materials

- RACK mounting rails: cold-rolled steel SPCC 1,5mm

- top and bottom panel: cold-rolled steel SPCC 1,2mm RAL 9004

- frame: cold-rolled steel SPCC 1,2mm RAL 9004

- front door: 5mm toughened glass / SPCC 1,2mm RAL 9004

- side panels: cold-rolled steel SPCC 1,2mm RAL 9004

- rear plate: cold-rolled steel SPCC 1,2mm RAL 9004

Static load: 70 kg
Use: inside, IP20
Notes:

- adjustable distance between front and rear RACK rails

- ventilation holes in the top panel (2 x 105x105mm - mounting dimensions)

- cable ducts in the top and bottom panel (340x56mm)

- lockable front door - repeatable code (2 keys included)

- possibility of reverse front door - opening left / right

- side panels - lock assembly possible - RAZB16 (additional equipment)

- possibility of disassembly rear panel (518x303mm)

- ready-to-assemble

Declarations

Compliant

Further details



Download

English leaflet
Instructions English
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
