Pulsar wall cabinet to assemble Rack 19 "6U / 600

Pulsar wall cabinet to assemble Rack 19 "6U / 600
-57%

Pulsar RWA664 19 "Rack metal enclosure wall cabinet box to be assembled to protect surveillance recorders, access control, burglar alarm , RVL, LAN etc. Front door with key lock (2 keys included), possibility to add RAZB16 lock on the side panel (additional accessory).

Reference: RWA664

Brand: Pulsar

EAN: 5902135314319

Manufacturer Object ( [id] => 37 [name] => Pulsar [description] =>

The company is a leader in Poland in this sector but is present in many countries in Asia and Europe, so much so that it is growing both in terms of number of sales and the number of new markets in which it is making its way. The quality of the products and the service provided to customers are the strong points that have made the Pulsar brand so successful. The company is attentive to the production process and to the development of new research methods in order to guarantee a service that always meets the needs of customers. Pulsar is constantly expanding the range of products offered, ranging from accessories for alarm systems to those for video surveillance systems. Among the proposals of Pulsar are: accessories for metal containers and for RACK power supplies and cabinets and accessories for cabinets.

[short_description] =>

Accessori impianti allarme Pulsar

Since 1994, Pulsar has been distinguished by the production of access controls and accessories and components for alarm systems and video surveillance systems.

[id_address] => [date_add] => 2019-06-07 15:19:24 [date_upd] => 2020-06-18 15:49:37 [link_rewrite] => pulsar [meta_title] => Alarm components Pulsar [meta_keywords] => Alarm components Pulsar, box pulsar [meta_description] => Pulsar is a manufacturer of components for alarm and active access control systems from 1994. Discover now the wide range of Pulsar accessories available online! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

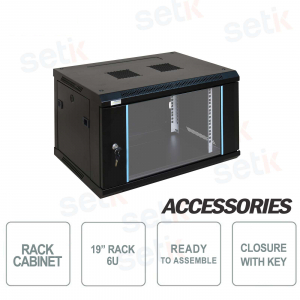

METAL ENCLOSURE 19 "RACK CABINET TO ASSEMBLE - 6U / 600X450 - PULSAR

Made by IIYAMA Metal container box to be assembled - Pulsar
Useful for enclosing and protecting DVRs, security recorders, access control, anti-intrusion, RTV, LAN
Front door with key lock (two keys included) - Dimensions: 600x450 6U Rack 19 "
Possibility of adding an additional RAZB16 closure laterally

Product details

Pulsar armadio a muro da assemblare

  • 19 "Rack wall cabinet to assemble - Pulsar
  • Useful for enclosing security recorders, access control, anti-intrusion, RVL, LAN
  • Front door with key lock (2 keys included)
  • Possibility to add RAZB16 closure to the side panel (additional accessories)
  • Aesthetically refined and resistant to mechanical damage
  • Wall mountable
  • Dimensions: Mounting W = 19 ", H = 6U, D = 271 mm / External W = 600, H = 372, D = 450 [mm, +/- 2]
  • Material: cold produced steel SPCC 1.2mm, 1.5mm - RAL 9004
  • Supported weight: 70kg

Data sheet

Model RWA664
Mounting Dimensions W = 19 ", H = 6U, D = 271mm
External dimensions: W = 600, H = 372, D = 450 [mm, +/- 2]
Net / gross weight 16.5 / 18 [kg]
Materials - RACK mounting rails: cold-rolled steel SPCC 1,5mm
- top and bottom panel: cold-rolled steel SPCC 1,2mm RAL 9004
- frame: cold-rolled steel SPCC 1,2mm RAL 9004
- front door: 5mm toughened glass / SPCC 1,2mm RAL 9004
- side panels: cold-rolled steel SPCC 1,2mm RAL 9004
- rear plate: cold-rolled steel SPCC 1,2mm RAL 9004
Static load: 70 kg
Use: inside, IP20
Notes:

- adjustable distance between front and rear RACK rails
- ventilation holes in the top panel (2 x 105x105mm - mounting dimensions)
- cable ducts in the top and bottom panel (340x56mm)
- lockable front door - repeatable code (2 keys included)
- possibility of reverse front door - opening left / right
- side panels - lock assembly possible - RAZB16 (additional equipment)
- possibility of disassembly rear panel (518x303mm)
- ready-to-assemble

Declarations

RoHS

Further details



Download

English brochure
English instructions
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
