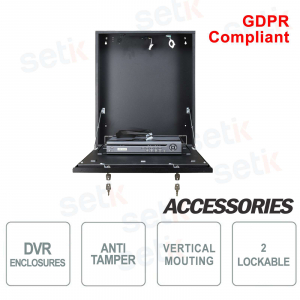

Pulsar AWO530 Metal cabinet box enclosure to protect medium sized DVR surveillance recorders. Equipped with anti-sabotage tamper, closure with 2 locks , vertical orientation, compliant with GDPR protection of personal data.
FIND INSTALLER
€179.79
€418.12 -57%
discover the available quantity
MEDIUM SIZE METALLIC CASE FOR DVR PROTECTION - AWO530 - PULSAR
Pulsar metal container boxUseful for enclosing and protecting medium-sized security DVR recorders
2 locks with key - Can be installed vertically - Tamper anti-sabotage protection
Compliant with the protection of personal data (GDPR)
|
X DVR CABINET: WHAT IS IT ABOUT? IS IT IMPORTANT TO HAVE IT? Pulsar's metal cases protect the recorder from unauthorized access or theft, Made from 1mm sheet steel, the set includes two keys for a lock and a tamper switch which indicates opening the case or unwanted removal of the enclosure from the wall.
In addition, the structure of the containers complies with the requirements of the General Data Protection Regulation (GDPR) , as personal data must be protected and stored securely.
To find out more, go to the " More details" tab |
| PULSAR: THE COMPLETE RANGE OF VERTICAL CABINETS | |||
| AWO528 | AWO529 | AWO530 | |
| Dimensions | W=320, H=430, D + D =82+14 [mm, +/-2] | W=435, H=500, D+D2=121+14 [mm, +/-2] | W=535, H=650, D+D2=121+14 [mm, +/-2] |
| Recorder space | W =260, H =250, D =55 [mm, +/-2] | W1 =375, H1 = 335, D1 = 95 [mm, +/-2] | W1=470, H1=485, D1=95 [mm, +/-2] |
| GO TO THE PRODUCT | GO TO THE PRODUCT | GO TO THE PRODUCT | |
| Alternatives |
ALTERNATIVE WITH TAMPER SPACE WHITE COLOR ALTERNATIVE ALTERNATIVE WITH WHITE TAMPER |
ALTERNATIVE WITH TAMPER SPACE WHITE COLOR ALTERNATIVE ALTERNATIVE WITH WHITE TAMPER |
ALTERNATIVE WITH TAMPER SPACE WHITE COLOR ALTERNATIVE ALTERNATIVE WITH WHITE TAMPER |
Product details
- DVR container box - Pulsar
- Useful for enclosing small surveillance DVR security recorders
- Dimensions: W=535, H=650, D+D 2 =121+14 [mm, +/-2]
- Internal dimensions x the recorder: W 1 =470, H 1 =485, D 1 =95 [mm, +/-2]
- Tamper protection : tamper - anti-opening and anti-tearing from the wall
- Closure with 2 locks and keys
- Possibility to mount ARAW45 fan (optional)
- Can be installed vertically on the wall
- The structure complies with the protection of personal data (GDPR)
Data sheet
| model | AWO530 |
| Dimensions | W=535, H=650, D + D =121+14 [mm, +/-2] |
| Dimensions of the recorder compartment: | W =470, H =485, D =95 [mm, +/-2] |
| Weight net/gross: | 12.16kg / 13.16kg [+/-0.1kg] |
| Operating environment: | class II, -10°C÷ 40°C |
| Material description: | sheet steel DC01, thickness: 1.0mm, corrosion protection, color: RAL9005 (black matt) |
| Destination: | indoors |
| Tamper protection: | 2 x microswitches: opening and detachment of the enclosure, 0,5A@50V/DC max. NC - normally closed contacts |
| Closing: | Lock MR008 (different code) x 2 pcs |
| Notes: |
distance from the wall 14mm, the fan with a temperature sensor, product code ARAW45, can be mounted to the enclosure The set includes two keys (different code) for each lock |
| declarations |
RoHS |
Further details
|
GDPR | NEW PRIVACY AND VIDEO SURVEILLANCE REGULATION: The introduction of the new General Data Protection Regulation also involves the video surveillance sector.
The Privacy Guarantor, in fact, specifies that " the conservation of images must be protected so that there is no risk of unauthorized access to data" , punished as indicated by art. 615-ter of the penal code. Precise safety standards must therefore be respected which minimize the risks relating to both the loss and destruction of data, as well as unauthorized access, also in compliance with the transmission of data as indicated in art. 31 et seq. of the Privacy Code READ OUR ARTICLE! |
