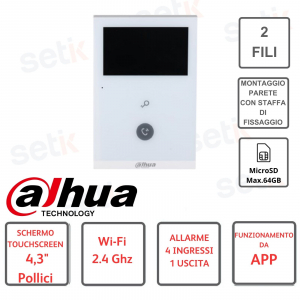

INDOOR MONITOR DAHUA 2 WIRE-WIFI 4.3 TOUCHSCREEN

INDOOR MONITOR DAHUA 2 WIRE-WIFI 4.3 TOUCHSCREEN
-57%

Wi-Fi indoor monitor - Dahua - VTH5113H-W - Compatible 2-wire interface - 4.3 inch capacitive touchscreen TFT display - 480 × 272 pixels - Built-in operating system - 4 inputs and 1 output alarm - Two-way audio - Speaker - - Suppression eco - RS-485 - 64GB MicroSD slot (not included) - Home doorbell - Includes bracket - Weight 548.5g - Polycarbonate + ABS - Wi-Fi 2.4 GHz IEEE802.11b/802.11g/802.11n - For wall mounting - White color .



Reference: VTH5113H-W

Brand: Dahua

FIND INSTALLER

€190.43

€442.86 -57%
taxes included
Tax included
 Available in 5 days

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


WI-FI MONITOR - 4.3 INCH TFT - TOUCHSCREEN - 2 WIRE - TWO-WAY AUDIO - SPEAKER - ALARM - DAHUA - VTH5113H-W


DESCRIPTION:

The Dahua VTH5113H-W station is one of the best indoor monitors on the market.
Equipped with 4.3" 480 x 272 TFT Capacitive Touch Screen Display, Two-way Audio, Speaker and Echo Suppression - 4 Alarm Inputs / 1 Alarm Output - Micro SD Card Slot up to 64GB (sold separately).
Ideal for wall mounting (bracket included) - Doorbell - RS485 - Wi-Fi 2.4 GHz - Operating System

White color.

Product Details:

  • Indoor station Wi-Fi Monitor 4.3 inch TFT capacitive touchscreen - Dahua - VTH5113H-W
  • Embedded Processor
  • 2-wire interface
  • 4.3" TFT capacitive touch screen display, 480x 272
  • Alarm integration, with 4 inputs and 1 output
  • Two-way audio
  • Integrated speaker
  • Echo suppression
  • Doorbell
  • Supports DND (Do Not Disturb) mode
  • Interface 1 RS-485
  • Wi-Fi 2.4 GHz IEEE802.11b/802.11g/802.11n
  • Micro SD Card Slot (Max 64GB, sold separately)
  • Number of extensions 5
  • Wall mounting, with bracket included
  • Power supply: 2-wire switch
  • Operating temperature: -10°C to +55°C
  • Relative humidity: 10%-95% RH (non-condensing)
  • Altitude: maximum 3000m
  • Dimensions: 176.3mm × 119.3mm × 20.0mm
  • Item Net Weight: 548.5g
  • High quality product
  • Material: Polycarbonate + ABS
  • White color
  • 24 month warranty

Data sheet

System

Main Processor

Embedded Processor

Operating System

Embedded operating system

Network Protocol

IPv4;UDP;DNS;TCP

Basic

Screen Type

Capacitive Touchscreen

Display Screen

4.3" TFT

Screen Resolution

480(H)×272(V)

Audio Compression

G.711a; G.711u; PCM

Audio Input

1 channel

Audio Output

Built-in speaker

Audio Mode

Two-way audio with VTO (half–duplex); Two-way audio with app (full-duplex)

Audio Enhancement

Echo suppression/digital noise reduction

Audio Bit Rate

16kHz; 16 bits

Function

Leave Videos

Yes (SD card needed)

DND Mode

Do not disturb period can be set;
Do not disturb mode can be set

Number of Extensions

5

Wifi

Yes

Wireless Standard

IEEE802.11b/802.11g/802.11n

Wireless Frequency Range

2.4 GHz

Storage

Micro SD card (up to 64 GB)

Port

RS-485

1

Alarm Input

4

Alarm Output

1 channel

Power Output

1 (12V, 200mA)

Door Bell

Yes (use the alarm input port)

Performance

Casing Material

PC + ABS

General

Appearance Color

White

Power Supply

2-wire controller

Power Adapter

Optional

Installation

Surface Mount

Certifications

THERE IS

Accessories

Included: Power cord, alarm ribbon cable, bracket, branch terminal
Sold separately: 2-wire controller

Product Dimensions

176.3 mm × 119.3 mm × 20.0 mm (6.94" × 4.70" × 0.79") (L × W × H)

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

10%–95% (RH)

Operating Altitude

0 m–3000 m (0 ft–9842.52 ft)

Power Consumption

≤2.2W (standby), ≤10W (working)

Gross Weight

548.5 g (1.21 lb)

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
