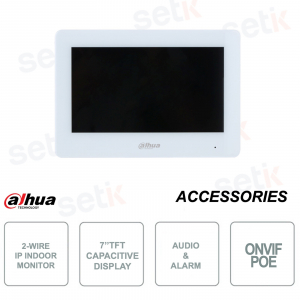

IP MONITOR - 7 INCH TFT - TOUCHSCREEN - 2 WIRE OR RJ45 - IP - BIDIRECTIONAL AUDIO - SPEAKER - ALARM - DAHUA - VTH5422HW


DESCRIPTION:

Dahua's VTH5422HW Android station is one of the best indoor monitors on the market.
Equipped with 7" 1024x600 Capacitive Touch Screen TFT Display, Two-Way Audio, Speaker and Echo Suppression - H.265 Video - 6 Alarm Inputs / 1 Alarm Output - SD Card Slot up to 64GB (sold separately).
Ideal for wall mounting (bracket included) - Bell - RS485 - RJ45 Lan Ethernet 10/100Mbps - Linux Operating System - SOS alarm.

White color.

Product details:

  • Indoor station IP Monitor 7 inch TFT capacitive touchscreen - Dahua - VTH5422HW
  • LinuxOS
  • Onvif and PoE
  • Embedded Processor
  • 2-wire or RJ45 interface
  • Display 7" TFT capacitive touch screen, 1024x600
  • H.264 and H.265 video compression
  • Alarm integration, with 6 inputs and 1 output
  • Two-way audio
  • Integrated speaker
  • Echo cancellation
  • Doorbell
  • DND (Do Not Disturb) mode supported
  • 1 RS485 interface
  • SD Card slot (Max 64GB, sold separately)
  • Mounting to apply on the wall, with bracket included
  • Power supply: 2-wire switch (Transmission distance at full power 50m)
  • Altitude: maximum 3000m
  • Dimensions: 189.0mm × 130.0mm × 26.9mm
  • Item net weight: 388g
  • Material: Polycarbonate + ABS
  • White color
  • 24 months warranty

Data sheet

VTH5422HW

Technical Specs

System

main processor

Embedded processor

Operating System

Embedded Linux operating system

Interoperability

ONVIF®

NetworkProtocol

SIP; IPv4; RTSP; RTP; TCP; UDP

Basic

ScreenType

capacitive touch screen

Display

7" TFT

Screen Resolution

1024×600

Audio Compression

G.711a; G.711Mu; G.711u; pcm extension

Audio inputs

1

Audio Outputs

Built-in speaker

Sound Mode

Two-way audio

Audio Enhancement

Echo suppression

Audio Bit Rate

16KHz, 16Bit

Function

Communication Mode

Full digital 2-wire

Information Release

Receive and view text information released by the management center (After SD card is installed, picture information can be received and viewed.)

Leave Videos

Yes (insert an SD card into the indoor monitor)

DND Mode

DND period and DND mode can be set.

Number of Extensions

Villa: 3 Apartment: 3

Performance

Casing

PC + ABS

Port

RS-485

1

Alarm Inputs

6

Alarm Output

1

Power Output

1 (12V/100mA)

Door Bell

Yes (use any alarm input port)

Network

One two-wire port and one 10Mbps/100Mbps Ethernet port (one of them can be selected)

General

Color

Black or white

Power Supply

Two-wire switch (max power transmission distance: 50m); PoE standards

Installation

Surface mount

Certifications

THERE IS; FCC; ul

accessory

Bracket and alarm ribbon cable (included)

Dimensions 189.0mm × 130.0mm × 26.9mm (7.44" × 5.12" × 1.06")
Operating Temperature 10°C to +55°C (+14°F to 131°F)
Operating humidity 20% to 93% (non condensing)
Operating Altitude Beneath 3000 m (9842.52 ft)
power consumption Standby ≤ 2W; working ≤ 6W
Net Weight 388g (0.86lb)
Gross Weight 741 g (1.63 lb)
