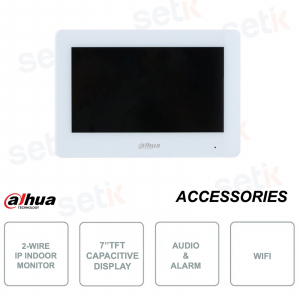

IP MONITOR - 7 INCH TFT - TOUCHSCREEN - 2 WIRES OR RJ45 - IP - TWO-WAY AUDIO - SPEAKER - ALARM - DAHUA - VTH5422HW-W


DESCRIPTION:

The Dahua VTH5422HW-W Android station is one of the best indoor monitors on the market.
Equipped with 7" 1024x600 Capacitive Touch Screen TFT Display, Two-way Audio, Speaker and Echo Suppression - H.265 Video - 6 Alarm Inputs / 1 Alarm Output - SD Card Slot up to 64GB (sold separately).
Ideal for wall mounting (bracket included) - Doorbell - RS485 - RJ45 Lan Ethernet 100M - Linux Operating System - SOS Alarm.

Color White.

Product Details:

  • Indoor IP Monitor 7 inch TFT capacitive touchscreen - Dahua - VTH5422HW-W
  • Linux-OS
  • Embedded Processor
  • 2-wire or RJ45 interface
  • 7" TFT capacitive touch screen display, 1024x600 (1MP)
  • Number of possible extensions: Villa: 3 - Apartment: 2
  • H.264 and H.265 Video Compression
  • Alarm integration, with 6 inputs and 1 output
  • Two-way audio
  • Built-in speaker
  • Echo suppression
  • Doorbell
  • Supports DND (Do Not Disturb) mode
  • Interface 1 RS485
  • SD Card Slot (Max 64GB, sold separately)
  • Wall mountable, with bracket included
  • Power supply: 2-wire switch (Transmission distance at maximum power 50m)
  • Serving temperature: -10°C to +55°C
  • Relative humidity: 10%-95% RH (non-condensing)
  • Altitude: maximum 3000m
  • Dimensions: 189.0mm × 130.0mm × 26.9mm
  • Item net weight: 350g
  • High quality product
  • Material: Polycarbonate + ABS
  • Color: White
  • 24 month warranty

Technical data sheet

VTH5422HW-W

Technical Specs

System

Main Processor

Embedded processor

Operating System

Embedded Linux operating system

Network Protocol

RTSP; RTP; SIP; DNS; SSH

Basic

Screen Type

Capacitive touchscreen

Display

7" TFT

Screen Resolution

1024 × 600

Audio Compression

G.711a; G.711Mu; G.711u; PCM

Audio Input

1

Audio Output

Built-in speaker

Audio Mode

2-way Audio

Audio Enhancement

Echo suppression

Audio Bitrate

16kHz; 16 Bit

Function

Communication Mode

Digital 2-wire

Information Release

Receive and view text information released by the management center

Leave Videos

Yes (insert an SD card into the indoor monitor)

DND Mode

Do not disturb period can be set; Do not disturb mode

Number of Extensions

Villa: 3 Apartment: 2

Wi-Fi

Yes

Wireless Standard

IEEE802.11b/802.11g/802.11n

Wireless Frequency Range

2.4GHz

Wireless Security Encryption

WPA/WPA2; WPA-PSK/WPA2-PSK

Storage

Micro SD card (up to 64 GB)

Performance

Casing

PC + ABS

Port

RS-485

1

Alarm Input

6

AlarmOutput

1

Power Output

1 (12V/200mA)

Door Bell

Yes (use any alarm input port)

Network

One two-wire port and one 10 Mbps/100 Mbps Ethernet port (one of them can be selected)

Alarm

SOS

Yes

General

Color

White

Power Supply

48VDC 1.25A

Installation

Surface mount

Certifications

CE; FCC

Accessories

Bracket and alarm ribbon cable (included)

Dimensions

189.0 mm × 130.0 mm × 26.9 mm (7.44" × 5.12" ×

1.06")

Operating Temperature –10 °C to +55 °C (+14 °F to 131 °F)
Operating humidity 10%-95% RH (non-condensing)
Operating Altitude Above 3000 m (9842.52 ft)
Power Consumption Standby ≤ 2W; working ≤ 6 W
Net Weight 0.35 kg (0.78 lb)
Gross Weight 0.56 kg (1.23 lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
