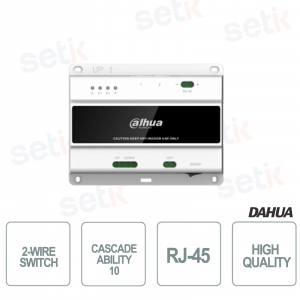

VOICE BASIC MODULE + VIDEO STANDARD PROTOCOL SIP - DAHUA
DESCRIPTION:
Dahua's VTNS2003B-2 basic module is one of the best modules on the market.
This module Supports 10 levels of cascade through the 2-wire port, Supports connection to 20 indoor monitors and 2 door stations, Supports connection through RJ45 port
Compatible with Dahua Security outdoor stations
Quality product. Dahua Security
Product Details:
 |
Data sheet
| Model | VTNS2003B-2 |
|---|---|
| Status Indicator Light | 4 |
| Communication Mode | 2-wire |
| Cascade Ability | 10 |
| port | Two 2-wire ports for cascade |
| port | Two RJ45 ports, 10 Mbps / 100 Mbps Ethernet |
| port | One 2-wire device port |
| Casing | PC + ABS |
| Appearance color | White |
| Power Supply | DC 48V, 1A – 3A |
| Power Adapter | Optional |
| Installation | Guide rail mount |
| Certifications | THERE IS; FCC; UL |
| Accessory | Power converter cable |
| Product Dimensions | 131.1 mm × 103 mm × 40 mm (5.16 "× 4.06" × 1.57 ") |
| Operating Temperature | -10 ° C to + 55 ° C (14 ° F to 131 ° F) |
| Operating Humidity | 10% –95% (RH, non-condensing) |
| Operating Altitude | 0-3000 m |
| Power Consumption | ≤ 15W (KIT) |
| Net Weight | 0.25kg (0.55lb) |
| Gross Weight | 0.39 kg (0.86 lb) |
Further details
Currently not availableDownload
