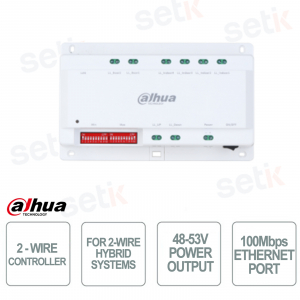

Two-wire controller for two-wire hybrid systems - Power output 48-53V 1 ethernet port 100Mbps - White color

Two-wire controller for two-wire hybrid systems - Power output 48-53V 1 ethernet port 100Mbps - White color
QUESTIONS ABOUT THE PRODUCT

 
-57%

Two-wire Controller - Dahua - VTNC2113C - Ideal control unit for use in hybrid two-wire systems - Isolates power and signal transmission from the input power terminal - 1 100Mbps Ethernet port - White color - Made of ABS and polycarbonate plastic - 48-53V power output.



Reference: VTNC2113C

Brand: Dahua

FIND INSTALLER

DAHUA: LOSS LEADER×

 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>


TWO-WIRE CONTROL UNIT - FOR HYBRID TWO-WIRE SYSTEMS - POWER OUTPUT 48-53V - 1 ETHERNET PORT - WHITE - DAHUA - VTNC2113C

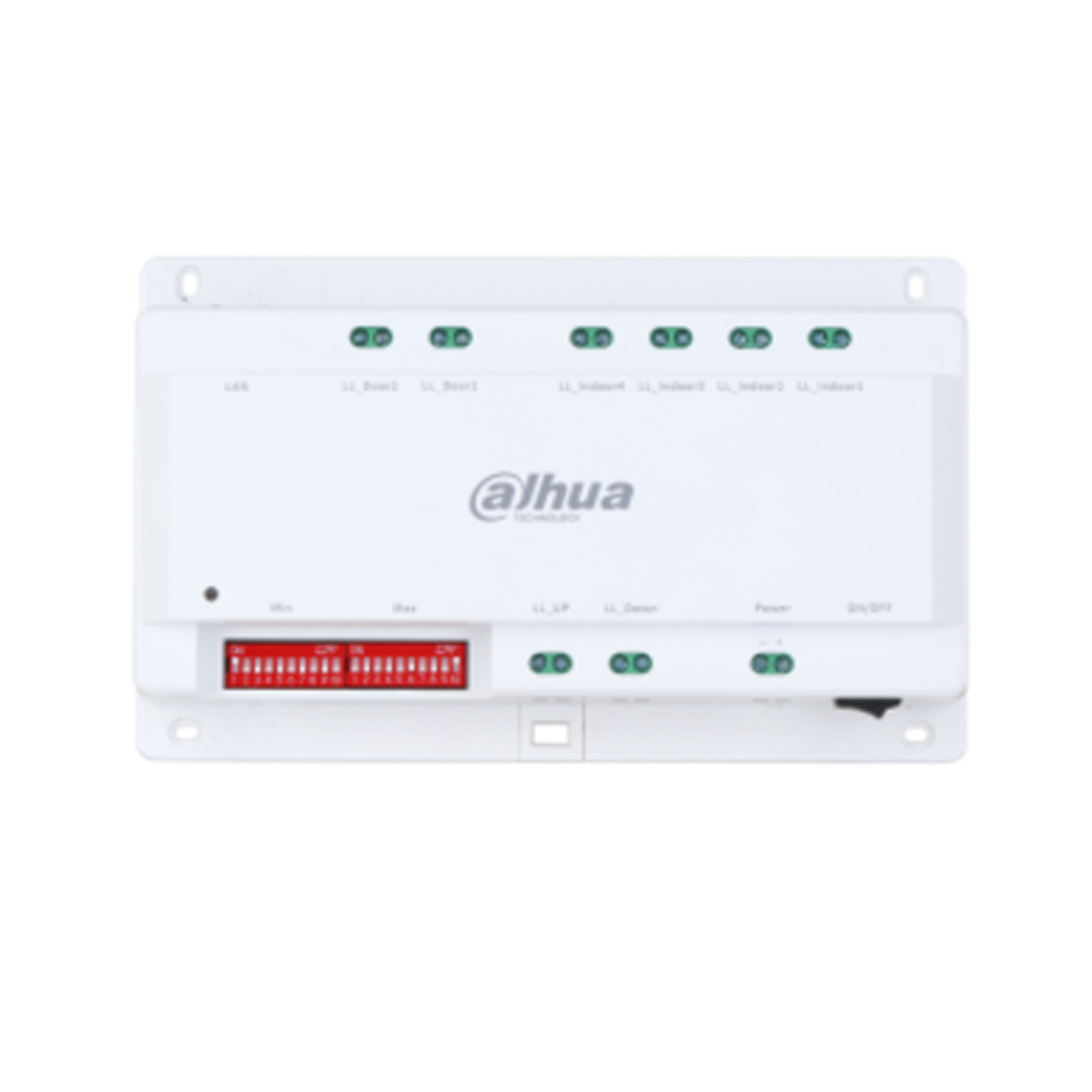

Sistema bifilare completo Dahua

DESCRIPTION:
Dahua VTNC2113C controller is one of the best controllers available on the market.
Ideal for isolating the power supply and signal and thus reducing the absorption of signals by the input terminal power supply during transmission.

Quality product. Dahua Technology, ideal for use in video intercom.

Product Details:

  • Controller - Dahua - VTNC2113C
  • Two-wire control unit
  • Isolates power and signal from interference from the power input
  • Power Output 48-53V
  • 1 x 100Mbps Ethernet port
  • White color
  • Made of polycarbonate and ABS plastic
  • Dimensions: 117mm × 191mm × 38mm
  • Operating temperature range: –10 °C to +55 °C
  • Allowed altitude: 0-3000m
  • Scope of application: video intercom
  • CE Certificate
  • High quality product

Technical data sheet

VTNC2113C
System
Main Processor Embedded Processor
Operating System Embedded Linux operating system
Network Protocol UDP;TCP;IPv4;DNS;SSH
Function
Communication Mode Analog
WebConfiguration Yes

Performance

Casing Material

PC + ABS

Port
Network Port 1 × 100 Mbps Ethernet port

General

Appearance Color

White

Power Supply

48–53 VDC, 4 A

Power Adapter

Optional

Installation

Rail Mount Guides

Certifications

THERE IS

Product Dimensions

117 mm × 191 mm × 38 mm (4.61" × 7.52" × 1.50")

Operating Temperature

–10 °C to +55 °C (14 °F to +131 °F)

Operating Humidity

10%–95% non-condensing

Operating Environment

Indoor

Operating Altitude

0 m–3,000 m (0 ft–9,842.51 ft)

Power Consumption

≤4W (standby), ≤100W (working)

Storage Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Storage Humidity

30%–75%

Further details

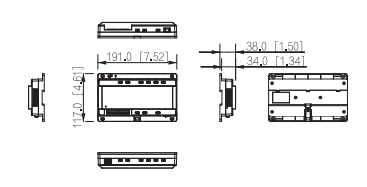

VTNC2113C dimensions
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
