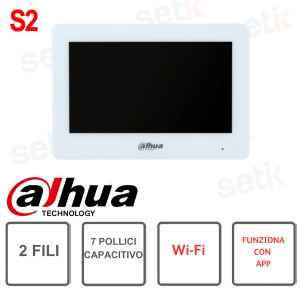

WI-FI MONITOR - 7 INCH TFT - TOUCHSCREEN - 2 WIRES - TWO-WAY AUDIO - SPEAKER - ALARM - S2 VERSION - DAHUA -VTH5123H-W-S2


DESCRIPTION:

The VTH5123H-W-S2 station from Dahua is one of the best indoor monitors on the market.
Equipped with 7" 1024x600 Capacitive Touch Screen TFT Display, Two-way Audio, Speaker and Echo Suppression - 6 Alarm Inputs / 1 Alarm Output - Micro SD Card Slot up to 64GB (sold separately).
Ideal for wall mounting (bracket included) - Doorbell - RS485 - Wi-Fi 2.4 GHz - Integrated Operating System - Can be connected to the HDCVI camera

Color White.

Product Details:

  • Indoor Wi-Fi Monitor 7 inch TFT capacitive touchscreen - Dahua - VTH5123H-W-S2
  • Embedded Processor
  • 2-wire interface
  • 7" TFT capacitive touch screen display, 1024X600
  • Alarm integration, with 6 inputs and 1 output
  • Two-way audio
  • Built-in speaker
  • Echo suppression
  • Doorbell
  • Supports DND (Do Not Disturb) mode
  • Interface 1 RS-485
  • Wi-Fi 2.4 GHz IEEE802.11b/802.11g/802.11n
  • Micro SD Card Slot (Max 64GB, sold separately)
  • Number of extensions 5
  • Wall mountable, with bracket included
  • Power supply: 2-wire switch
  • Serving temperature: -10°C to +55°C
  • Relative humidity: 10%-95% RH (non-condensing)
  • Altitude: maximum 3000m
  • Dimensions: 130mm × 189mm × 23.9mm
  • Item Weight: 0.633g
  • High quality product
  • Material: Polycarbonate + ABS
  • Color: White
  • 24 month warranty

Technical data sheet

System

Main Processor

Embedded Processor

Operating System

Embedded Operating System

Network Protocol

IPv4; UDP; DNS; TCP

Basic

Screen Type

Capacitive Touchscreen

Display Screen

7" TFT

Screen Resolution

1024 (H) × 600 (V)

Audio Compression

G.711a; G.711u; PCM

Audio Input

1

Audio Output

Built-in speaker

Audio Mode

Two-way audio with VTO (half–duplex);Two-way audio with app (full–duplex)

Audio Enhancement

Echo suppression/digital noise reduction

Audio Bitrate

16KHz;16 Bit

Function

Leave Videos

Yes (SD card needed)

DND Mode

Do not disturb period can be set; Do not disturb mode can be set.

Number of Extensions

Villa: 4
Apartment: 2

Wi-Fi

Yes

Wireless Standard

IEEE802.11b/802.11g/802.11n

Wireless Frequency Range

2.4GHz

Storage

Micro SD card (up to 64 GB)

Port

RS-485

1

Alarm Input

6

AlarmOutput

1

Power Output

1 (12V, 200mA)

Door Bell

Yes (use the alarm input port)

Performance

Casing Material

PC + ABS

General

Appearance Color

White

Power Supply

2-wire Controller

Power Adapter

Optional

Installation

Surface Mount

Certifications

CE; FCC

Accessories

Included: Power cord, 485 and Power output ribbon cable, alarm ribbon cable, bracket, branch terminal
Sold separately: 2-wire controller

Product Dimensions

130 mm × 189 mm × 23.9 mm (5.12" × 7.44" × 0.94")

Operating Temperature

–10 °C to +55 °C (14 °F to +131 °F)

Operating Humidity

10%–95% (RH)

Operating Altitude

0 m–3000 m (0 ft – 9842.52 ft)

Power Consumption

≤ 2.5W(standby), ≤10W(working)

Gross Weight

0.633 kg (1.40 lb)

Storage Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Storage Humidity

95% (RH), (non-condensing)
