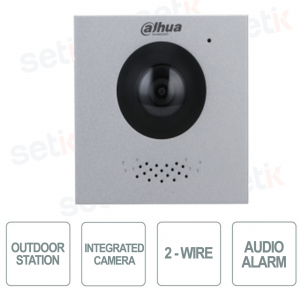

Two-wire outdoor station with integrated camera with 2MP CMOS sensor of 1/2.5" and viewing angle of 160°. Compatible with two-wire interface and RS-485. 1 Exit button, 2-way voice communication. Power supply 12 V 1 A. IP65 and IK07. Dahua. VTO4103F-1



Reference: VTO4103F-1

Brand: Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DAHUA: LOSS LEADER×


 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>

DAHUA 8X8×


  DAHUA 8MEGAPIXEL
8MEGAPIXEL CAMERAS WITH

 QUANTITY DISCOUNT   AND  FREE SHIPPING!
 DISCOVER THEM NOW >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

STEEL OUTDOOR STATION WITH CAMERA - SPEAKER - DAHUA

DESCRIPTION:
The external station Dahua's VTO4103F-1 is one of the best stations on the market
Ideal for installations in villas thanks to its refined design.
Equipped with an adjustable camera with 2Mp CMOS sensor, it allows a viewing angle of approximately 160°.

Product Details:

Postazione esterna in acciaio Dahua serie VTO4202F-P-S2
  • External station - Dahua
  • Category: Video Intercom
  • Built-in adjustable camera with 1/2.5" 2Mp CMOS image sensor, 160° viewing angle
  • IP65 and IK07
  • Supports night vision
  • Supports mobile software
  • Contact the internal monitor or management center
  • Support remote unlock
  • Support group call function
  • Connection via LAN port
  • 1 Exit button
  • Power supply 12V 1A
  • Surface or recessed mounting with optional special containers
  • IP65 grade
  • IK07
  • Quality product
  • 24 month warranty

Technical data sheet

Model VTO4103F-1
System
Main Processor Embedded processor
Operating System Embedded Linux Operation System
Button Type Mechanical
Basic
Room 1/2.5" 2 MP CMOS low illumination HD color fisheye camera
Field of View H: 168.6°; V: 87.1°; D: 176.7°
WDR 120dB
Noise Reduction 3D NR
Video Resolution P: 960 (H) × 576 (V)
N: 960 (H) × 480 (V)
Video Frame Rate P: 25 fps
N: 30fps
Light Compensation Auto IR
Day/Night Auto(ICR)/Color/B/W
Audio Input 1 channel
Audio Output Built-in speaker
Audio Mode Two-way audio (half-duplex)
Audio Enhancement Echo suppression/digital noise reduction
Function
Communication Mode Analog
Unlock Mode IC card, ID card, password, fingerprint, and remote unlock (A sub-module must be connected to the main module for the first 4 methods)
Leave Videos Yes (SD card inserted in VTH is needed)
Performance
Casing Material Aluminum alloy
Port
RS-485 1
AlarmOutput 1 channel
Power Output 1 channel, 12V, 1A
Exit Button 1 channel
Door Status Detection 1 channel
Lock Control 1 channel
Alarm
Tamper Alarm Yes
General
Appearance color Silver, black
Power Supply 2-wire controller
Installation Flush Mount; Surface Mount
Certifications THERE IS
Accessories Surface mount box (optional), flush mount box (optional), panel (optional)
Product Dimensions 100 mm × 100 mm × 49.4 mm (3.94" × 3.94" × 1.94")
Protection IK07; IP65
Operating Temperature –40 °C to +60 °C (–40 °F to +140°F)
Operating Humidity 10%–90%
Operating Environment Outdoor
Operating Altitude 0 m–3000 m (0 ft–9,842.52 ft)
Power Consumption ≤4W (standby), ≤12W (working)
Gross Weight 435g (0.96lb)

Further details

Funzioni della postazione esterna VTO4202F-P-S2
Videocitofono con telecamera integrata

Camera built into the device.
1/2.5"2Mp CMOS image sensor.
Viewing angle approximately 160°

2Mp CMOS image sensor

1 Uscita Relè per comando apri porta mono famigliare 1 Alarm Output

Possibility of integration into a VOIP system , as if it were a common VoIP line.

It is possible to answer from any internal VoIP station.


Protezione Waterproof Station suitable for outdoor environments thanks to the Waterproof feature
Protezione Antivandalo Vandal-resistant all-steel panel

12VDC_Power

Power supply 12Vdc

Italian Guarantee Icon This product is covered by a 24 month warranty.
