Onvif PoE outdoor station with integrated camera with 1 / 2.5 "2MP CMOS sensor and 160 ° viewing angle. Compatible with two-wire and RJ45 interface. 1 Exit button, 2-way voice communication. Power supply 48 V DC or PoE . IP65 and IK07. Dahua. VTO4202F-P-S2
€175.74
€408.70 -57%Scrivici dove e ti sconteremo la differenza fino a fine mese!
DESCRIPTION:

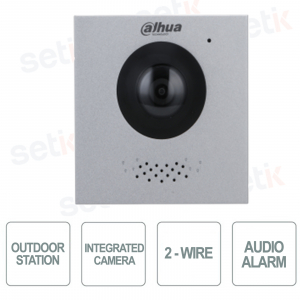

The outdoor station VTO4202F-P-S2 from Dahua, is one of the best stations on the market
Ideal for installations in villas thanks to its careful design.
Equipped with an adjustable camera with 2Mp CMOS sensor, it allows a viewing angle of about 160 °.
|
| Model | VTO4202F-P-S2 |
| System | |
| Main Processor | Embedded processor |
| Operating System | Embedded Linux Operation System |
| Button Type | Mechanical |
| Interoperability | ONVIF®; CGI |
| Network Protocol | SIP; P2P; IPv4; UPnP; SNMP; DNS; DDNS; RTSP; RTP; TCP; UDP |
| Basic | |
| Room | 1 / 2.5 "2MP CMOS Low Illumination HD Colorful Fisheye Camera |
| Field of View | Horizontal: 168.6 °; vertical: 87.1; diagonal: 176.7 ° |
| Focal Length | 1.9 mm |
| WDR | 120 dB |
| Noise Reduction | 3D NR |
| Video Compression | H.265 |
| Video Resolution | 50Hz: Main Stream (720P @ 25 fps), sub stream (1080P @ 25 fps) 60Hz: Main Stream (720P @ 30 fps), sub stream (1080P @ 30 fps) |
| Video Frame Rate | 25 fps |
| Video Bit Rate | 256 Kbps to 4 Mbps |
| Light Compensation | Auto IR |
| Day / Night | Auto (ICR) |
| Audio Compression | G.711a; G.711u; PCM |
| Audio Input | 1 channel |
| Audio Output | Built-in speaker |
| Audio Mode | 2-way voice communication |
| Audio Enhancement | Echo suppression / digital noise reduction |
| Audio Bit Rate | 16 KHz, 16 Bit |
| Status Indicator Light | 3 |
| Port | |
| Electric Lock | 1 |
| Alarm Output | 1 |
| Power Output | 1-ch 12 VDC 100mA |
| Exit Button | 1 |
| Door Status Detection | 1 |
| Lock Control | 1 |
| Network Port | One RJ45 10M / 100M network port |
| General | |
| Appearance color | Silver |
| Power Supply | Dahua 2-wire switch (max. Power supply distance 50m) DC 48V 1A Standard PoE |
| Power Adapter | Optional |
| Installation | Flush / surface mount |
| Certifications | THERE IS; FCC; UL |
| Accessory | Flush / surface mount |
| Product Dimensions | 100mm × 100mm × 36mm (3.94 "× 3.94" × 1.41 ") |
| Protection | IK07; IP65 |
| Operating Temperature | –30 ° C to + 60 ° C (–22 ° F to 140 ° F) |
| Operating Humidity | 10% –90% (RH, non-condensing) |
| Operating Altitude | 0 m – 3000 m |
| Power Consumption | ≤ 12W |
| Net Weight | 0.35 kg (0.77 lb) |
| Gross Weight | 0.4 kg (0.88 lb) |
 |
Camera integrated into the device. 2Mp CMOS image sensor |
 |
Connection via RJ-45 Ethernet LAN port (10M / 100Mbps) |
 |
1 Alarm output |
 |
Possibility of integration into a VOIP system , as if it were a common Voip line. It is possible to answer from any internal Voip station.
|
 |
Station suitable for outdoor environments thanks to the Waterproof feature |
 |
Panel completely in steel resistant to vandalism |
|
|
12Vdc power supply |
 |
This product is covered by a 24 month warranty. |
