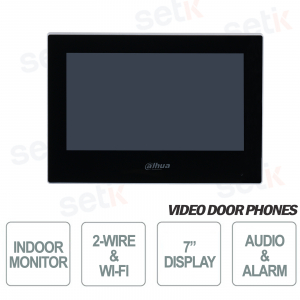

Internal station 2 wires and WIFI Dahua Monitor SIP 7 Inch Touch Black

Internal station 2 wires and WIFI Dahua Monitor SIP 7 Inch Touch Black
BEST PRICE -57%

Internal station 2 wires and WIFI Dahua VTH2622G-W internal SIP monitor 7" TFT touch screen 1024X600, G.711a Audio Compression, 6 inputs + 1 alarm output, 1 Audio Input, Speaker, WI-FI Frequency IEEE802.11b/g/n , Viewing dahua IP cameras, surface mounting, black colour.



Reference: VTH2622G-W

Brand: Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DAHUA: LOSS LEADER×


 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>

DAHUA 8X8×


  DAHUA 8MEGAPIXEL
8MEGAPIXEL CAMERAS WITH

 QUANTITY DISCOUNT   AND  FREE SHIPPING!
 DISCOVER THEM NOW >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

INDOOR STATION 2-WIRE/WIFI DAHUA MONITOR SIP 7" - AUDIO AND ALARM - BLACK


Product Details:

  • Dahua 2-Wire/WIFI Internal Station
  • 7" TFT touchscreen
  • 7" capacitive touchscreen display (1024x600)
  • Alarm: 6 inputs + 1 output
  • Bidirectional Audio: 1 Audio Input + Integrated Speakers
  • Echo Suppression / Digital Noise Reduction
  • Extensions: Apartments 2; Villa 3
  • Wifi : IEEE802.11b/802.11g/802.11n | Wireless Frequency: 2.4GHz
  • Two-wire port and one 10/100 Mbps Ethernet port
  • Installation: surface
  • Black colour
  • Dimensions: 189.6mm × 134.6mm × 26.0mm
  • 24 month warranty


Data sheet

Model VTH2622G-W
Main Processor Embedded processors
Operating System Embedded Linux operating system
Interoperability ONVIF®; SDK
Network Protocol RTSP; RTP; SIP; DNS; SSH
ROM 128MB
RAM 128MB
CPU Dual core 1.2GHz
Screen Type Capacitive touchscreen
Display 7" TFT
Screen Resolution 1024×600
Audio Compression G.711a; G.711u; PCM
Audio Input 1
Audio Output Built-in speaker
Audio Mode 2-way Audio
Audio Enhancement Echo suppression
Audio Bit Rate 16kHz; 16 bits
Communication Mode Digital 2-wire
Information Release Receive and view text information released by the management center
Leave Videos Yes (SD card inserted in VTO is needed)
DND Mode Do not disturb period can be set; Do not disturb mode
Number of Extensions Villa: 3 Apartment: 2 Wi-Fi intercom: 1 main monitor, 2 extension monitors
Wifi Yes
Wireless Standard IEEE802.11b/802.11g/802.11n
Wireless Frequency Range 2.4 GHz
Wireless Security Encryption WPA/WPA2;WPA-PSK/WPA2-PSK
Casing PC + ABS
Alarm Input 6
Alarm Output 1
Door Bell Yes (use any alarm input port)
Network One two-wire port and one 10Mbps/100Mbps Ethernet port (one of them can be selected)
Appearance Color Black
Power Supply 48 VDC 1.25 A
Installation Surface Mount
Certifications THERE IS; FCC
Dimensions 189.6 mm × 134.6 mm × 26.0 mm (7.50" × 5.30" × 1.00")
Operating Temperature –10°C to +55°C (+14°F to 131°F)
Operating Humidity 10%–95% RH (non-condensing)
Operating Altitude Beneath 3000 m (9842.52 ft)
Power Consumption Standby ≤ 2W; working ≤ 6 W
Net Weight 0.34 kg (0.74 lb)
Gross Weight 0.58 kg (1.27 lb)

Further details



7" TFT Touch Screen 1024x600 display

Questo DVR presenta ingressi / uscite audio Two-way audio (Built-in Audio Input and Speaker)
This DVR presents 8 alarm entries and 1 alarm exit 6 Alarm Inputs + 1 Alarm Output
Italian Guarantee icon This product is covered by a 24 month warranty.
