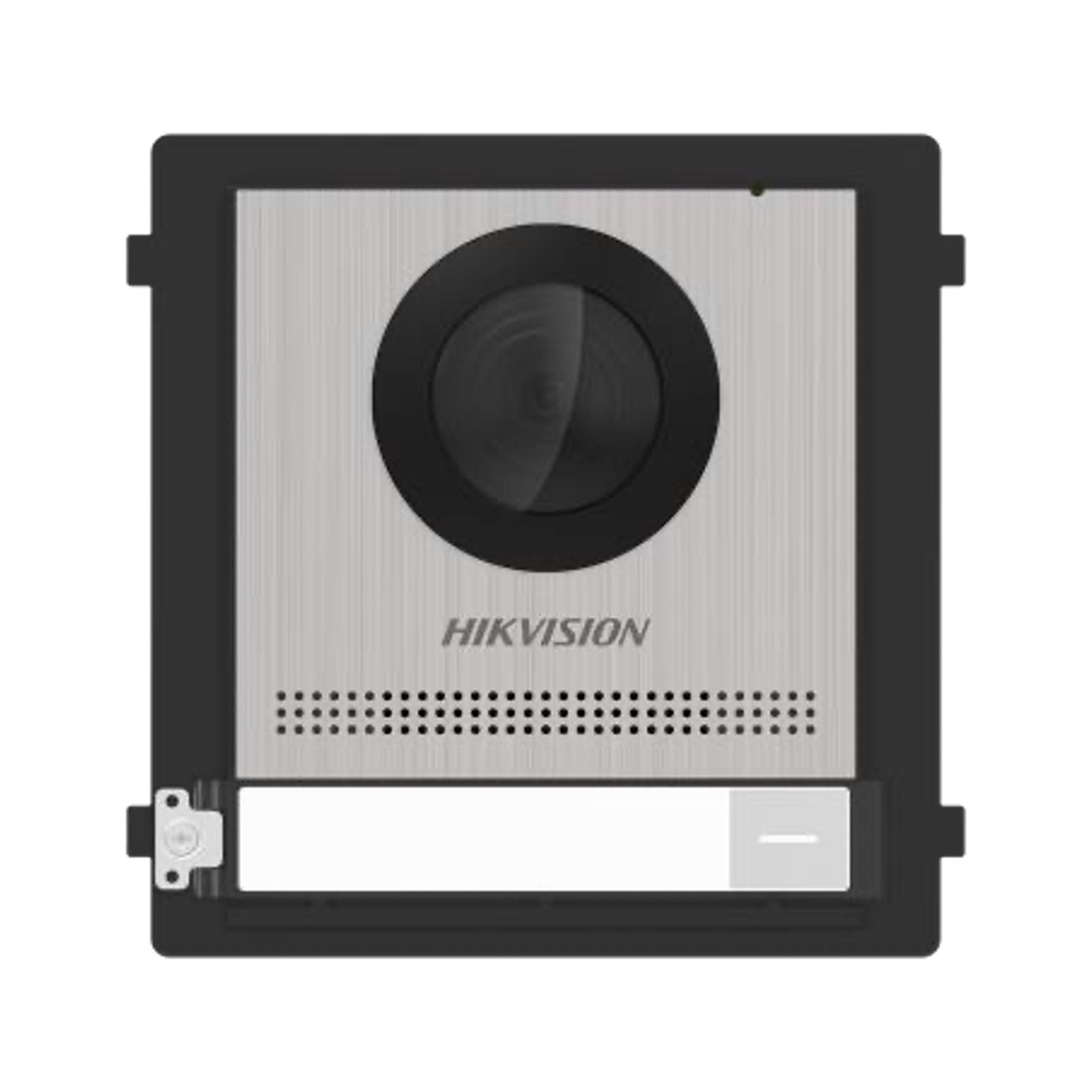

Main module for outdoor station DS-KD8003Y-IME2/S , Two-wire, Ideal for low-light environments, Access control function, 2MP Full HD Fisheye Camera with 3m IR, Single physical call button - Tamper - Customizable Nametag, Suppression of echo and audio background noise, H.264 compression, WDR, adjustable volume, 4 alarm inputs - Integrated microphone and speaker - Exit Button - RS-485 - IP65 protection - Ideal for use in outdoor environments.
FIND INSTALLER

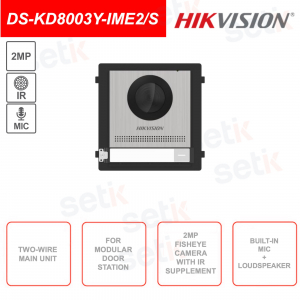

DS-KD8003Y-IME2/S | HIKVISION OUTDOOR STATION - AUDIO IN/OUT - TWO WIRE - TAMPER ALARM - 2 MEGAPIXEL HD FISHEYE CAMERA - IR
The outdoor station DS-KD8003Y-IME2/S , is a modular station with 2MP 2 Megapixel resolution, two power wires (two-wire), Fisheye Camera with additional infrared IR lighting and 3m range, Customizable Nametag, h.264 video compression , digital noise and echo suppression, Tamper alarm, 4 alarm inputs - Single physical call button - Exit button - WDR Wide Dynamic Range - Integrated omni-directional microphone - Integrated speaker - RS-485 Supported - Quality product - Ideal for recessed or wall mounting - Perfect for outdoor use with IP65 protection - HIKVISION - DS-KD8003Y-IME2/S
CAMERA INTEGRATED IN THE DEVICE: with 2 megapixel resolution, equipped with IR infrared illuminator with illumination range up to 3m, Fisheye H.264 Video Codec. |
PROTECTION: IP65 protection, ideal for outdoor use |
AUDIO: Equipped with speaker and omnidirectional microphone with echo and noise suppression function. |
DIET: 12 VDC or 24VDC power supply on two wires. |
Data sheet
| DS-KD8003Y-IME2/S | |
System parameters | |
Operation system | Embedded Linux operation system |
ROM | 32MB |
RAM | 256MB |
Processor | Embedded Processor |
Video parameters | |
Lens | 1 |
Resolution | 2 MP |
FOV | Horizontal: 146°, Vertical: 82° |
Wide dynamic range (WDR) | Support |
Supplement light | IR light, up to 3 m |
Standard video compression | H.264 |
Audio parameters | |
Audio input | 1 built-in omnidirectional microphone |
Standard audio compression | G.711U, G.711A |
Audio output | 1 built-in loudspeaker |
Audio compression bitrate | 64Kbps |
Audio quality | Noise suppression and echo cancellation |
Volume adjustment | Adjustable |
Capacity | |
User capacity | 2000 |
Face capacity | NA |
Linked indoor station capacity | 500 |
Sub door station capacity | 16 |
|
Device interfaces | |
Alarm input | 4 (2 exit buttons and 2 door contacts by default) |
Network interface | NA |
TAMPER | 1 |
Exit button | 2 (2 for lock control) |
RS-485 | 1 (1 for Hikvision's sub module communication) |
USB | NA |
Lock control | 2 relays, Max. to 30 VDC, 2 A |
Door contact input | 2 |
Two-Wire IP interface | 1 |
General | |
Button | 1 |
Installation | Surface mounting, flush mounting |
Weight | Net weight: 0.430 Gross weight: 0.551 kg kg |
Protective level | IP65 |
Working temperatures | -40 °C to 60 °C (-22 °F to 140 °F) |
Working humidity | 10% to 90% |

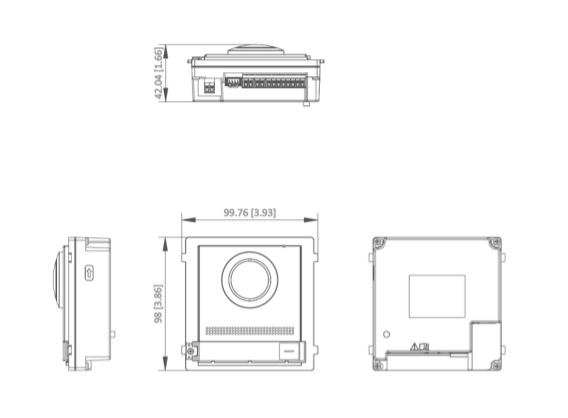

Dimension (W × H × D) | 100mm × 98mm × 42mm |
Power supply | Powered by KAD704Y or KAD706Y series distributor |
Application environment | Outdoors |
Power consumption | ≤4W |
Language | English,French,Portuguese,BrazilianPortuguese,Spanish,Russian,German,Italian,Polish, Turkish,Vietnamese,Arabic,Czech,Hungarian,Dutch,Romanian,Bulgarian,Ukrainian,Croatian,Serbian,Greek,Slovak |
