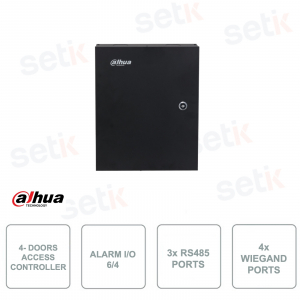

CONTROLLER FOR ACCESS CONTROL - 4 DOORS - CARD, FINGERPRINT AND PASSWORD READER - DAHUA - ASC2204C-S

Controller multiporta Dahua ASC2202B-D

DESCRIPTION:
Dahua Security's ASC2204C-S controller is one of the best two-door access controllers on the market.
This device allows you to manage 4 gates and supports cards, passwords, fingerprints

Extremely reliable product.

Product details

Controller per controllo accessi per due porte bidirezionale Dahua
  • Access controller for two gates - Dahua Security - ASC2204C-S
  • Control up to 4 (four) gates
  • It supports cards, passwords, fingerprints
  • Interface to RS485 or Wiegand readers
  • 4x Wiegand ports
  • 5x RS485 ports
  • Up to 100,000 users and 500,000 events
  • Up to 100,000 access cards, 3,000 fingerprints
  • Alarm: 6 inputs and 4 outputs
  • Alarm:
    Anti Passback
    Tamper
    Duress
    Door Unlock Timeout
    Intrusion
    Illegal Card Exceeding Threshold
    Duress Fingerprint
  • Lock Control: 4 channels (NO by default)
  • Anti-tamper tamper
  • Buzzers
  • WatchDog function to avoid device crash
  • IP rating: IP20/IK04
  • Operating temperature: –30°C to +60°C
  • Dimensions: 337mm × 272mm × 90mm
  • Power supply 100-240V AC
  • Type-C iron container
  • Weight: 3.5kg
  • For use indoors
  • Ideal for wall installation

Data sheet

ASC2204C-S

System

main processor

Embedded processor

Internet Protocol

IPv4; TCP; UDP

OSDP Protocol

Yes

SDKs

Yes

Basic

Product Appearance

Type C Iron Container

Buzzers

Yes

Casing material

SECC steel board

Function

UnlockMode

card swiping; Remotes; Password; Fingerprints

Period List

128

Holiday period

128

Network Update

Yes

First Card Unlock

Yes

Remote Verification

Yes

Blocklist/Allowlist

Yes

Peripheral Card Reader

4-Channel RS-485 card reader
4-Channel Wiegand card reader

Multi-door Interlock
