Access Control - RS485 and Wiegand - 2 gates - Card reader - Fingerprint reader - Password

Access Control - RS485 and Wiegand - 2 gates - Card reader - Fingerprint reader - Password
-57%

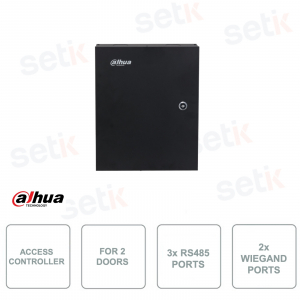

Access controller - Dahua - ASC2202C-S - Supports Wiegand and RS485 - For control of two doors - Authentication with access card reading, fingerprint, password (combined authentication possibility) - 2 inputs and 2 alarm outputs - RJ45 Ports 10/ 100M - IP20/IK04 protection - For wall installation - For indoor use - Type-C iron container - Tamper - Buzzer.



Reference: ASC2202C-S

Brand: Dahua

FIND INSTALLER

€348.86

€811.30 -57%
taxes included
Tax included
 Available in 5 days

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


CONTROLLER FOR ACCESS CONTROL - CARD, FINGERPRINT AND PASSWORD READER - DAHUA - ASC2202C-S

Controller multiporta Dahua ASC2202B-D

DESCRIPTION:
Dahua Security's ASC2202C-S controller is one of the best two-door access controllers on the market.
This device allows you to manage two gates and two readers and supports cards, passwords, fingerprints

Extremely reliable product.

Product details

Controller per controllo accessi per due porte bidirezionale Dahua
  • Access controller for two gates - Dahua Security - ASC2202C-S
  • Double gate control
  • It supports cards, passwords, fingerprints
  • Interface to RS485 or Wiegand readers
  • 2x Wiegand ports
  • 3x RS485 ports
  • Up to 100,000 users and 500,000 events
  • Up to 100,000 access cards, 3,000 fingerprints
  • Alarm: 2 inputs and 2 outputs
  • Alarm:
    Anti Passback
    Tamper
    Duress
    Door Unlock Timeout
    Intrusion
    Illegal Card Exceeding Threshold
    Duress Fingerprint
  • Lock Control: 2 channels (NO by default)
  • Anti-tamper tamper
  • Buzzers
  • WatchDog function to avoid device crash
  • IP rating: IP20/IK04
  • Operating temperature: –30°C to +60°C
  • Dimensions: 337mm × 272mm × 90mm
  • Power supply 100-240V AC
  • Type-C iron container
  • Weight: 3.5kg
  • For use indoors
  • Ideal for wall installation

Data sheet

ASC2202C-S

System

Main Processor

Embedded processor

Internet Protocol

IPv4; TCP; UDP

OSDP Protocol

Yes

SDKs

Yes

Basic

Product Appearance

Type C Iron Container

Buzzers

Yes

Casing material

SECC steel board

Function

UnlockMode

card swiping; Remotes; Password; Fingerprints

Period List

128

Holiday period

128

Network Update

Yes

First Card Unlock

Yes

Remote Verification

Yes

Blocklist/Allowlist

Yes

Peripheral Card Reader

2-Channel RS-485 card reader
2-Channel Wiegand card reader

Multi-door Interlock

Yes
