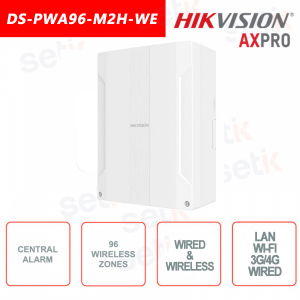

Wireless and wired alarm control unit - AXPRO Plus - WI-FI - LAN - 3G - 4G - 96 zones - 868Mhz

Main features

- TCP/IP, Wi-Fi and GPRS/3G/4G network
- Next generation wireless protocol: Tri-X/Cam-X
- Battery housing 7Ah
- Long RF transmission distance
- Two-way communication with AES-128 encryption
- Connects up to 96 wireless zones/outputs (including 48 PIRCAM), 16 wired zones, 2 wired outputs, 48 wireless key fobs, 4
repeaters, 6 sounders, 8 tag readers and keyboards
- Capacity varies by device model
- Supports up to 48 network users, including 1 installer, 1 administrator and 46 regular users
- Voice prompt
- Configuration via web client, mobile client and Convergence Cloud
- The configuration of Hik-Connect and Hik-ProConnect depends on the user's access level
- Alarm notification via messages or phone calls
- Viewing live video from Hik-Connect
- Alarm video clip by email and APP
- Upload alarm reports to ARC
- Support LED indicator to indicate system status
- SIA-DC09 protocol and support both Contact ID and SIA data formats
- Supports Hik-IP Receiver and Hik-IP Receiver Pro for ARC communication

Download the Brochure | English

AXPRO HIKVISION ALARMS VS AJAX ALARMS. Read our blog post !

AXPRO SYSTEM - BEYOND SAFETY

AXPro is the new intelligent and professional wireless system with latest generation "Tri-X" radio technology. It is a complete solution, supports Video Intruder Verification technology and is versatile as it can be integrated with other security systems such as Video Surveillance, Video Intercom and Access Control. It also supports metadata from AcuSense devices and Heat Pro Thermal Cameras. AXPro boasts a simple, intuitive programming interface suitable for both professional audiences and end users.

TRI-X & CAM-X Wireless Technology

TRI-X is a proprietary radio protocol that guarantees greater safety and simplicity in communication. It allows you to associate and program the system devices via the HikProConnect APP , monitoring the components and their status with real-time alerts. Tri-X and Cam-X dual frequency and multi-channel Frequency Hopping technology provide interference immunity, long distance communication up to 2,000m and long device life [up to 6 years].

Simple and intuitive programming

Thanks to the Hik-ProConnect software dedicated to the installer and available both on the portal and in the APP version, system configuration will be extremely simple. The control unit immediately recognizes the radio devices via the Hik-ProConnect APP thanks to the QR Code scan. Manual activities and installation times decidedly optimized. After configuring the detectors and accessories, it will be possible to proceed with programming their parameters and delivering the system to the user.

Management via APP: Hik-ProConnect and Hik-Connect

Hikvision AXPro alarms are compatible with the Hikvision Official APPs Hik-ProConnect , dedicated to installers and Hik-Connect , for end users.


Hik-ProConnect: cloud platform specially designed for installers.
- Time optimization
- Adding devices remotely or on site
- Simplified programming
- Creation of specific rules for the plant
- Remote monitoring of the system
- Identification of any malfunctions and immediate resolution
- Sending automatic reports
- Reduction of plant visits and increased efficiency

Hik-ProConnect: cloud platform specially designed for end users.
- Full management of all Hikvision devices/products
- View system status
- Activation/deactivation of the alarm
- Receive alarm notifications wherever you are
- Monitoring of the status of each individual device [signal level, battery status, ambient temperature]
