Wireless alarm control unit - AXPRO - WI-FI - LAN - 3G - 4G - 96 zones - 868Mh

Wireless alarm control unit - AXPRO - WI-FI - LAN - 3G - 4G - 96 zones - 868Mh
-35%

AXPRO PLUS HIKVISION

DS-PWA96-M2-WE - AXPRO Plus HUB Hikvision - Wireless alarm control unit with TCP/IP, WIFI and GPRS/3G/4G connectivity, Tri-X/Cam-X wireless protocol, two-way communication with AES-128 encryption, Up to 96 Wireless Zones/Outputs ( Includes 48 PIRCAMs ), Video Verification , Up to 48 Network Users, Alarm Notification by Message or Phone Call, Battery Slot , 12v 7Ah Lithium Battery and Video Verification




Reference: DS-PWA96-M2-WE

Brand: Hikvision

EAN: 6931847164294

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


HIKVISION: NET PRICES×


THIS PRODUCT IS ONLINE AT A SPECIAL PRICE!
Check out the other products that are part of the promotion! Prices valid until 30.04.2025
Netti Hikvision

ALARM HIKVISION×


  SPECIAL DISCOUNTS AND FREE SHIPPING!
DS-PWA64-Kit-WE |  DS-PWA96-M2H-WE  |  DS-PWA96-Kit-WE
 Take advantage now >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>


NEW AXPRO PLUS VERSION, WHAT CHANGES?

Video Verification and Battery Housing

AXPro Alarms Hikvision

Hikvision AXPro Alarms

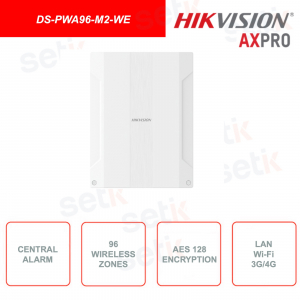

DS-PWA96-M2-WE | AXPRO PLUS CONTROL UNIT 96 ZONES HIKVISION TCP/IP/WIFI/GPRS/3G/4G - VIDEO VERIFICATION - FREQUENCY 868MHZ

The AXPro Plus DS-PWA96-M2-WE control panel supports up to 96 wireless inputs (Includes 48 Pircam ). It is able to communicate alarms and other notifications in real time via TCP/IP, Wi-Fi and GPRS/3G/4G network with push notifications, sms, voice. Thanks to the voice guide, installation and use will be simple and fast. Ideal solution for medium sized residential and commercial applications, Battery Housing and Video Verification



Main features

- AXPRO Plus
- TCP/IP version, Wi-Fi and 3/4G network
- Video verification
- Battery housing 7Ah
- Next generation wireless protocol: Tri-X/Cam-X
- Long RF transmission distance
- Two-way communication with AES-128 encryption
- Connects up to 96 wireless zones/outputs (including 48 PIRCAMs), 48 wireless keyfobs, 4 repeaters, 6 sounders, 8 tag readers.
48 wireless key fobs, 4 repeaters, 6 buzzers, 8 tag readers and keyboards. It supports up to 48 network users, including 1 installer, 1 administrator and 46 normal users.
- Voice prompt
- Configuration via web client, mobile client and Convergence Cloud
- The configuration of Hik-Connect and Hik-ProConnect depends on the user's access level
- Alarm notification via messages or phone calls
- Viewing live video from Hik-Connect
- Alarm video clips via email and APP
- Support LED indicator to indicate system status
- SIA-DC09 protocol and support both Contact ID and SIA data formats.
- Supports Hik-IP Receiver and Hik-IP Receiver Pro for ARC communication
- Battery housing
- Dimensions: 261 x 199 x 86.4mm

Download the brochure | English


AX PRO M2

Technical Specs

Basic

Frequency

868Mhz

Wireless type

2-way wireless

Wireless Security

Frequency Hoping 128 AES Encryption

Wireless Zones

Up to 96 (Up to 48 PIRCAMs)

Wireless Outputs

Wired Zones

AXPRO HIKVISION ALARMS VS AJAX ALARMS. Read our blog post !

AXPRO SYSTEM - BEYOND SAFETY

AXPro is the new intelligent and professional wireless system with latest generation "Tri-X" radio technology. It is a complete solution, supports Video Intruder Verification technology and is versatile as it can be integrated with other security systems such as Video Surveillance, Video Intercom and Access Control. It also supports metadata from AcuSense devices and Heat Pro Thermal Cameras. AXPro boasts a simple, intuitive programming interface suitable for both professional audiences and end users.

axpro hikvision alarm system

TRI-X & CAM-X Wireless Technology

TRI-X is a proprietary radio protocol that guarantees greater safety and simplicity in communication. It allows you to associate and program the system devices via the HikProConnect APP , monitoring the components and their status with real-time alerts. Tri-X and Cam-X dual frequency and multi-channel Frequency Hopping technology provide interference immunity, long distance communication up to 2,000m and long device life [up to 6 years].



Intruder Verification

Intruder Verification is the HD video alarm service that manages video verification from any Hikvision IP camera. Provides recording of a 7-second video clip containing pre and post event which is sent from the control panel buffer or via the NVR/IP camera archive. The end user will be able to access the video and live feed of the camera directly from the HikConnect APP.



Simple and intuitive programming

Thanks to the Hik-ProConnect software dedicated to the installer and available both on the portal and in the APP version, system configuration will be extremely simple. The control unit immediately recognizes the radio devices via the Hik-ProConnect APP thanks to the QR Code scan. Manual activities and installation times decidedly optimized. After configuring the detectors and accessories, it will be possible to proceed with programming their parameters and delivering the system to the user.



Management via APP: Hik-ProConnect and Hik-Connect

Hikvision AXPro alarms are compatible with the Hikvision Official APPs Hik-ProConnect , dedicated to installers and Hik-Connect , for end users.

Hik-ProConnect: cloud platform specially designed for installers.
- Time optimization
- Adding devices remotely or on site
- Simplified programming
- Creation of specific rules for the plant
- Remote monitoring of the system
- Identification of any malfunctions and immediate resolution
- Sending automatic reports
- Reduction of plant visits and increased efficiency

Hik-ProConnect: cloud platform specially designed for end users.
- Full management of all Hikvision devices/products
- View system status
- Activation/deactivation of the alarm
- Receive alarm notifications wherever you are
- Monitoring of the status of each individual device [signal level, battery status, ambient temperature]

Downloads

Download the brochure Brochure
