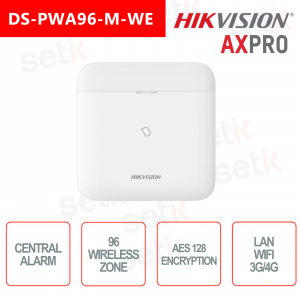

Central Alarm Hikvision AXPro Wi-Fi 3G / 4G 96 Zone 868MHz

Central Axiom Hub bidirectional radio RF 868MHz, 98 inputs, 48 remote controls, 4 repeaters, 6 sirens and 8 tag readers and keypads. LAN + WIFI + 3G / 4G. Video clip management of 7 seconds on alarm through native integrated with HikVision cameras, anti-opening and anti-tear tamper, internal backup battery. Alarm transmission with voice protocol, push notification, Contact ID and Contact ID, integrated Vocal Guido, simplified programming via HIK Connect app, IVMS4200 and WEB. Video surveillance, alarm and video door entry integration via HikConnect APP and IVMS

Main features

♦ 3G / 4G, Wifi, LAN version
♦ Supports up to 96 wireless inputs, 48 remote controls, 4 repeaters, 6 sirens and 8 tag readers and keypads.
♦ Supports viewing of event videos via mobile client and email
♦ Compatible with Hik-ProConnect [app for installers] and Hik-Connect [app for end users]
♦ Voice command for configuration and operations
♦ Configuration via web client, mobile client or client software
♦ Push alarm notifications via message, call and email
♦ Compatible with SIA-Contact ID protocol
♦ Two-way long distance communication
♦ AES-128-bit data encryption
♦ Support LED indicator for system status indication
♦ 4520mAh lithium backup battery, supports up to 12h of power supply
♦ White color
♦ Dimensions: 170.0 mm (6.7 ") x 170.0 mm (6.7") mm x 38.6 mm (1.5 ")

Documentation: Brochure

AXPRO HIKVISION ALARMS VS AJAX ALARMS. Read our blog article!

AXPRO SYSTEM - BEYOND SAFETY

AXPro is the new intelligent and professional wireless system with latest generation "Tri-X" radio technology. It is a complete solution, supports Video Intruder Verification technology and is versatile as it can be integrated with other security systems such as video surveillance, video door entry systems and access control. It also supports metadata from AcuSense devices and Heat Pro Thermal Cameras. AXPro boasts a simple, intuitive programming interface suitable for both professional and end users.

TRI-X & CAM-X Wireless Technology

TRI-X is a proprietary radio protocol that guarantees greater safety and simplicity in communication. It allows you to associate and program system devices via the HikProConnect APP , monitoring their components and their status with real-time alerts. Tri-X and Cam-X dual frequency and multi-channel Frequency Hopping technology provide interference immunity, long distance communication up to 2,000m and long device life [up to 6 years].

Intruder Verification

Intruder Verification is the HD video alarm service that manages the video verification coming from any Hikvision IP camera. Provides the recording of a 7second video clip containing pre and post event which is sent from the control panel buffer or through the NVR / IP camera archive. The end user will be able to access the video and live of the camera directly from the HikConnect APP.

Simple and intuitive programming

Thanks to the Hik-ProConnect software dedicated to the installer and available both on the portal and in the APP version, the configuration of the system will be extremely simple. The control unit immediately recognizes the radio devices via the Hik-ProConnect APP thanks to scanning via QR Code. Definitely optimized manual activities and installation times. After configuring the detectors and accessories, it will be possible to program their parameters and deliver the system to the user.

Management via APP: Hik-ProConnect and Hik-Connect

AXPro Hikvision alarms are compatible with Hikvision Hik-ProConnect Official APPs, dedicated to installers and Hik-Connect , for end users.


Hik-ProConnect: cloud platform specially designed for installers.
- Time optimization
- Adding devices remotely or on site
- Simplified programming
- Creation of specific rules for the plant
- Remote monitoring of the system
- Identification of any malfunctions and immediate resolution
- Sending of automatic reports
- Reduction of plant visits and increased efficiency

Hik-ProConnect: cloud platform specially designed for end users.
- Complete management of all Hikvision devices / products
- View of the system status
- Arming / disarming of the alarm
- Receive alarm notifications wherever you are
- Monitoring of the status of each individual device [signal level, battery status, ambient temperature]
