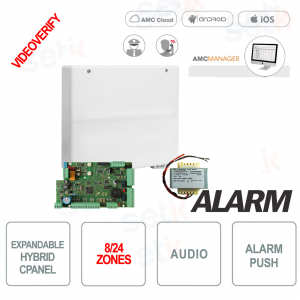

X 824 V - EN 50131 / GRADE 2 - 8/24 WIRED ZONES - 64 WIRELESS ZONES - VIDEO VERIFICATION - ALARM CONTROL UNIT
Hybrid AMC wired /radio alarm control unit for residential installations, 8 zones expandable to 24 wired, 64 radio zones. 8 SMS / Voice numbers + 8 for CMS, Integrated PSTN, GPRS/3G/4G Module, IP Module, Remote Management via App (IOS-Android), Box and Power Supply Included, Remote Programming via PC Software.
FIND INSTALLER
€316.29
€372.10 -15%
discover the available quantity
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives
X 824V | AMC ELECTRONICS
ALARM CONTROL UNIT - 8/24 WIRED ZONES - 64 ZONES - WIRE/RADIO - VIDEO VERIFICATION
Hybrid AMC wired /radio alarm control unit for residential installations, 8 expandable zones Up to 24 wired, 64 wireless zones. 8 SMS / Voice numbers + 8 for CMS, Integrated PSTN, GPRS/3G/4G Module, IP Module, Remote Management via App (IOS-Android), Video Verification, Box and Power Supply Included, Remote Programming via PC Software.
Product details
- Hybrid wired / radio alarm control unit - AMC
- 8 Zones expandable to 24 wired
- 64 wireless zones
- Can be equipped with IP module (DC09 IP protocol for Contact ID and SIA IP)
- Can be equipped with GPRS/3G module (voice call, SMS, Contact ID, DC09 IP protocol for Contact ID and SIA IP)
- Integrated PSTN (voice dialing, Contact ID, SIA fsk, etc.)
- AMC Cloud Free
- Mobile viewing with official AMC MANAGER application (iOS / Android)
- Ability to increase the number of zones on the motherboard using dual and triple zone configurations with EOL resistors
- Removable clamps
- Voice Support
- BUS line (4 wires) RS485
- Multiformat CMS
- Integrated Voice Management
- Box and Power Supply Included
- EN 50131
- Grade 2
- Class 2
Data sheet
| model | X 824 V |
| Zones |
8 - 24 double and triple zones with EOL resistors + 2 zones for each keypad* (max 8 zones) |
| Radio zones | 64 zones |
| Go out | 5 on board expandable to 8 (with output cards or keyboards) |
| User Codes / Remote Control Keys | 32 |
| Areas | 4 |
| Groups | 4 |
| Keyboards | 4 |
| Inserters | 4 |
| Events memory | 1000 |
| Telephone Numbers | 8 for SMS / voice + 8 for CMS |
| Communication | Integrated PSTN, GPRS/3G/4G module, plug-in IP module |
| IP Remote Management - GPRS/3G | via App (iOS - Android) |
| IP Remote Programming - GPRS/3G | via PC software |
| Multi-user management Via App | YES |
| Video verification | YES |
| Timer programmers | 4 for each day of the week |
Further details
DISCOVER THE ALTERNATIVES
| Reference | Zones | Go out | Multi-user management via App | Video verification |
|---|---|---|---|---|
| x412 | 4-12 Zones Double and Triple zone with EOL + resistors 2 Zones for each keypad* (Max 4 Zones) |
5 on board Expandable to 8 (With output cards or keyboards) |
No | No |
| X 412V | 4-12 Zones Double and Triple zone with EOL + resistors 2 Zones for each keypad* (Max 4 Zones) |
5 on board Expandable to 8 (With output cards or keyboards) |
Yup | Yup |
| x824 | 8-24 Zones Double and Triple zone with EOL + resistors 2 Zones for each keypad* (Max 8 Zones) |
5 on board Expandable to 8 (With output cards or keyboards) |
No | No |
| X 824 V | 8-24 Zones Double and Triple zone with EOL + resistors 2 Zones for each keypad* (Max 8 Zones) |
5 on board Expandable to 8 (With output cards or keyboards) |
Yup | Yup |
| x864 | 8-64 Double and triple zones Balancing with EOL resistors | 5 on board Expandable to 17 (With output cards or keyboards) |
No | No |
| X 864 V | 8-64 Double and triple zones Balancing with EOL resistors | 5 on board Expandable to 17 (With output cards or keyboards) |
Yup | Yup |
