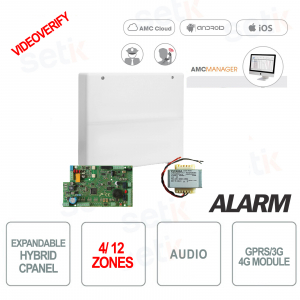

Hybrid Alarm Control Panel Expandable from 4 to 12 inputs - Video verification - AMC

Hybrid Alarm Control Panel Expandable from 4 to 12 inputs - Video verification - AMC
-15%

X 412 V - EN 50131 / GRADE 2 - 4/12 WIRED ZONES - 64 WIRELESS ZONES - VIDEO VERIFICATION - ALARM CONTROL UNIT
Hybrid AMC wired /radio alarm control unit for residential installations, 4 zones expandable to 12 wired, 64 radio zones. Can be equipped with GPRS/3G/4G module and IP module, PSTN (already on board), voice support, alarm notifications. Manageable from smartphone via app, Multiformat CMS, Multiuser Management via app, Video Verification, Integrated Voice Management. EN 50131, Grade 2, Class 2. Box and Power Supply Included , X 412 V AMC Elettronica

Reference: X 412 V

Brand: AMC

EAN: 8057457613071

FIND INSTALLER

€250.95

€295.24 -15%
taxes included
Tax included
  Hurry up! Only a few pieces left in our warehouse!
 Last items in stock
discover the available quantity

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


X 412V | AMC ELECTRONICS

ALARM CONTROL UNIT - 4/12 WIRED ZONES - 64 RADIO ZONES - WIRE/RADIO - VIDEO VERIFICATION


Hybrid AMC wired/radio alarm control unit for residential installations, 4 expandable zones Up to 12 wired, 64 wireless zones. Can be equipped with GPRS/3G/4G module and IP module, PSTN (already on board), voice support, alarm notifications. Manageable from smartphone via app, Multiformat CMS, Multiuser Management via app, Video Verification, Integrated Voice Management. EN 50131, Grade 2, Class 2. Box and Power Supply Included, X 412 V

Product details

Centrale d'allarme 4 zone espandibili a 16 AMC
  • Hybrid wired / radio alarm control unit - AMC
  • 4 Zones expandable to 12 wired
  • 64 wireless zones
  • Can be equipped with IP Module (DC09 IP protocol for Contact ID and SIA IP)
  • Can be equipped with GPRS/3G/4G (voice call, SMS, Contact ID, DC09 IP protocol for Contact ID and SIA IP)
  • Integrated PSTN (voice dialing, Contact ID, SIA fsk, etc.)
  • AMC Cloud Free
  • Mobile viewing with official AMC MANAGER application (iOS / Android)
  • Possibility to increase the number of zones on the motherboard (X412V-X824) using the double and triple zone configurations with EOL resistors
  • Voice Support
  • BUS line (4 wires) RS485
  • Multiformat CMS
  • Multi-user management Via APP
  • Video verification
  • Integrated Voice Management
  • Including Box and Power Supply
  • EN 50131
  • Grade 2
  • Class 2

Data sheet

model X412V
Zones

4 - 12 zones
double and triple zone with
EOL resistors + 2 zones for each keypad* (max 4 zones)

Radio zones 64 zones
Go out 5 on board expandable to 8 (with output cards and keyboards)
User Codes / Remote Control Keys 32
Areas 4
Groups 4
Keyboards 4
Inserters 4
Events memory 1000
Telephone Numbers 8 for SMS / voice + 8 for CMS
Communication Integrated PSTN, GPRS/3G/4G module, plug-in IP module
Remote Management via app (iOS - Android)
Remote Programming via PC software
Multi-user management Yup
Video verification Yup
Timer programmers 4 for each day of the week

Further details

DISCOVER THE ALTERNATIVES

ReferenceZonesGo outMulti-user management via AppVideo verification
x412 4-12 Zones Double and Triple zone with EOL + resistors
2 Zones for each keypad* (Max 4 Zones)
5 on board Expandable to 8
(With output cards or keyboards)
No No
X 412V 4-12 Zones Double and Triple zone with EOL + resistors
2 Zones for each keypad* (Max 4 Zones)
5 on board Expandable to 8
(With output cards or keyboards)
Yup Yup
x824 8-24 Zones Double and Triple zone with EOL + resistors
2 Zones for each keypad* (Max 8 Zones)
5 on board Expandable to 8
(With output cards or keyboards)
No No
X 824 V 8-24 Zones Double and Triple zone with EOL + resistors
2 Zones for each keypad* (Max 8 Zones)
5 on board Expandable to 8
(With output cards or keyboards)
Yup Yup
x864 8-64 Double and triple zones Balancing with EOL resistors 5 on board Expandable to 17
(With output cards or keyboards)
No No
X 864 V 8-64 Double and triple zones Balancing with EOL resistors 5 on board Expandable to 17
(With output cards or keyboards)
Yup Yup
