Hybrid Alarm Control Panel Expandable from 8 to 64 video verification inputs - AMC

Hybrid Alarm Control Panel Expandable from 8 to 64 video verification inputs - AMC
-15%

X 864 V - 8/64 WIRED ZONES / 64 WIRELESS ZONES / EN 50131 / GRADE 2 / VIDEO VERIFICATION - ALARM CONTROL UNIT

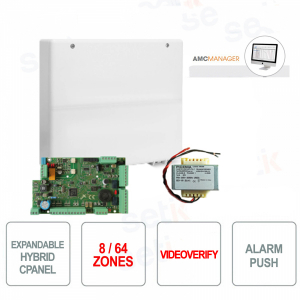

Hybrid AMC wired /radio alarm control unit for residential installations, 8 zones expandable to 64 wired, 64 radio zones. VIDEO VERIFICATION control, Can be equipped with GPRS/3G module and IP module, PSTN (already on board), Voice support, Alarm Notifications. Manageable from smartphone via app, Multiformat CMS, Integrated Voice Management. EN 50131, Grade 2, Class 2, Box and Power Supply Included . X 864V AMC Electronics

Reference: X 864 V

Brand: AMC

EAN: 8057457614146

Manufacturer Object ( [id] => 26 [name] => AMC [description] =>

Founded in 1974, AMC Elettronica can count on an international distribution network with only made in Italy products. One of the most important qualities of this company is the attention paid to design and customers’ needs. AMC Elettronica is not only distribution, but also production and analysis. Indeed, in the establishment in Lurago d’Erba there is a fully automated production line for the SMT technology electronic boards and a “test laboratory” for checking and testing. Control panels, Sirens and Motion sensors are only some of the products made and distributed by AMC Elettronica. AMC Elettronica, a brand which is a synonym of quality and professionalism, offers to its customers even a free Cloud service and an official free App "AMC Manager" compatible with Android and Apple.

[short_description] =>


Setik now distributes AMC Elettronica, an Italian brand specialising in the intrusion detection sector.

[id_address] => [date_add] => 2018-02-01 09:38:22 [date_upd] => 2025-02-18 12:20:02 [link_rewrite] => amc [meta_title] => AMC Elettronica intrusion security and accessories [meta_keywords] => AMC intrusion security,AMC Antintrusion [meta_description] => Since 1974 AMC Elettonica has been dealing with security systems and is one of the leading Italian manufacturers of burglar alarms, burglar alarm systems and alarms. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

Did you know that... WE ARE AMC PRIME DISTRIBUTORS?
Discover all the AMC products in our catalogue

X 864V | AMC ELECTRONICS

ALARM CONTROL UNIT - 8/64 WIRED ZONES - 64 ZONES - WIRED/RADIO - EN50131 - GRADE 2

Hybrid AMC wired/radio alarm control unit for residential installations, 8 expandable zones Up to 64 wired, 64 wireless zones.
VIDEO VERIFICATION control, Can be equipped with GPRS/3G module and IP module, PSTN (already on board), Voice support, Alarm Notifications.
Manageable from smartphone via app, Multiformat CMS, Integrated Voice Management. EN 50131, Grade 2, Class 2. X 864 V

Centrale d'allarme 8 zone espandibili a 64 AMC
  • Hybrid wired / radio alarm control unit - AMC
  • 8 Zones expandable to 64 wired
  • 64 wireless zones
  • Can be equipped with IP Module (DC09 IP protocol for Contact ID and SIA IP)
  • Can be equipped with GPRS/3G (voice call, SMS, Contact ID, DC09 IP protocol for Contact ID and SIA IP)
  • Integrated PSTN (voice dialing, Contact ID, SIA fsk, etc.)
  • Mobile viewing with official AMC PLUS application (iOS / Android)
  • Voice Support
  • Integrated Voice Management
  • EN50131
  • Box and Power Supply Included
  • Grade 2
  • Class 2

model X864V
Zones

8 - 64 wired double and triple balanced with EOL resistors

Radio zones 64 zones
Video verification Yup
Go out 5 on board expandable to 17 (with output cards and keyboards)
User Codes / Remote Control Keys 64
Areas 8
Groups 4
Keyboards 8
Inserters 8
Events memory 1000
Telephone Numbers 8 for SMS / voice + 8 for CMS
Communication Integrated PSTN, GPRS/3G module and plug-in IP module
IP Remote Management - GPRS/3G via app (iOS - Android)
IP Remote Programming - GPRS/3G via PC software
Timer programmers 8 for each day of the week

Further details

DISCOVER THE ALTERNATIVES

ReferenceZonesGo outMulti-user management via AppVideo verification
x412 4-12 Zones Double and Triple zone with EOL + resistors
2 Zones for each keypad* (Max 4 Zones)
5 on board Expandable to 8
(With output cards or keyboards)
No No
X 412V 4-12 Zones Double and Triple zone with EOL + resistors
2 Zones for each keypad* (Max 4 Zones)
5 on board Expandable to 8
(With output cards or keyboards)
Yup Yup
x824 8-24 Zones Double and Triple zone with EOL + resistors
2 Zones for each keypad* (Max 8 Zones)
5 on board Expandable to 8
(With output cards or keyboards)
No No
X 824 V 8-24 Zones Double and Triple zone with EOL + resistors
2 Zones for each keypad* (Max 8 Zones)
5 on board Expandable to 8
(With output cards or keyboards)
Yup Yup
x864 8-64 Double and triple zones Balancing with EOL resistors 5 on board Expandable to 17
(With output cards or keyboards)
No No
X 864 V 8-64 Double and triple zones Balancing with EOL resistors 5 on board Expandable to 17
(With output cards or keyboards)
Yup Yup
