38236.01.BL1 HUB Black Ajax wireless central hub bidirectional with Jeweller protocol 868MHz and GPRS / LAN connectivity. Internal antenna, anti-tampering, up to 100 wireless devices connectable, suitable for indoor environments. Black Version
Hub #38236
>> FREE AJAX ADHESIVE SIGN
SAVE - CLICK HERE
discover the available quantity
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives
38236.01.BL1 | AJAX HUB BLACK ALARM CONTROL PANEL 868MHZ BIDIRECTIONAL - BLACK VERSION
>> FREE AJAX ADHESIVE SIGN

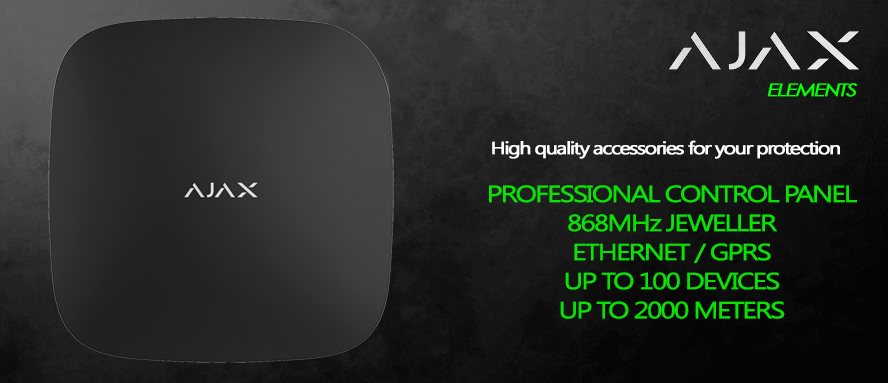

ALARM CONTROL UNIT AJAX HUB 868MHZ LAN / GPRS
The Ajax Hub alarm control panel is a key element of the Ajax security system. The device monitors the operation of all Ajax detectors and immediately sends an alarm signal to the owner and the Central Monitoring Station. 38236.01.BL1 #38236
Main features:
♦ Ajax HUB alarm control panel - Setik
♦ 868MHz Jeweler protocol
♦ Ethernet / GPRS communication
♦ Grade 2 Certificate
♦ Up to 100 wireless devices connectable
♦ AC power input 110-250V and rechargeable backup battery (max. 15 hours life)
♦ 3 year warranty
Product details
|
|
SUPER GIFT | 1X AJAX SIGN ADHESIVE PROTECTED AREA Adhesive Sign Area Protected by Intrusion System Alarm System Customized AJAX |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ajax Hub - The brain of the security system | 38236.01.BL1 Device capable of controlling all devices, collecting data, using communication via Ethernet and/or GPRS - Analyze threats - Filters out false alarms by only notifying you of a real threat. - Sabotage-proof, with activations and connectors inside the device - Jeweller technology that allows the detectors to be placed up to 2,000 meters away - Connection via GSM/GPRS (GSM also as a backup connection in case of internet interruption) - Management of up to 100 devices - Up to 50 users + 1 surveillance (via Contact ID) supported - SIM Card Support: Micro SIM 2G - Alert in case of power failure - Internal battery with up to 15 hours of battery life (without power supply) - The new devices can be connected with a simple switch and with the help of QR codes - Check detectors every 12-300 seconds (settable time) - Radio interference detection, encrypted channels in case of sabotage - Jeweller 868MHz communication protocol - Power supply: 110-250V AC - Quick installation - Color: Black - Dimensions: mm 163 x 163 x 36 DIFFERENCES BETWEEN HUBS
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
WHY CHOOSE AJAX ALARMS? Ajax is synonymous with quality and ease of use.
All Ajax products use the latest generation wireless technology and can be programmed directly from a smartphone or PC.
Thanks to the User and Pro applications , you can have complete virtual control of the entire alarm system, 24 hours a day. Here is the real difference compared to other competitors! With a few simple taps , you can: ♦ Arm / Disarm the alarm ♦ Get instant notifications ♦ Get detailed information about the device status ♦ Perform remote testing and configurations ♦ Automatic updates
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Technical data sheet
| Model: Alarm | 38236.01.BL1 |
| Classification | The radio channel central unit with GSM and Ethernet modules |
| Maximum number of devices connected to the hub | 100 |
| Maximum number of cameras connected to the hub |
10 |
| Maximum number of users |
50 |
| Maximum number of rooms |
50 |
| Maximum number of groups |
9 |
| Mobile applications |
iOS 9.1 and later |
| Communication Channels | Ethernet, GSM (850/900/1800/1900 MHz) |
| Alarm signal |
Delivery time: 0.15 s |
| Communication with Central Monitoring Station |
Contact ID |
| Processor | ARM |
| Operating System | HubOS |
| Power supply | Mains supply: 110−250V Battery backup: Li-Ion 2 A/h Up to 15 hours of offline operation when Ethernet is switched off |
| SIM card support | Micro SIM 2G |
| Operating temperature range | +5°C to +40°C |
| Anti-sabotage | Protection against fraud Jamming detection Tamper resistant |
| Video surveillance | IP video cameras with RTSP |
| Remote setup | + |
| Dimensions | 162.7×162.7×35.9mm |
| Weight | 350 g |
| Certification | Grade 2, CE |
| Warranty | Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty. |
| Complete set | Ajax Hub intelligent control panel Power cable Ethernet cable Installation kit SIM card (depending on region) User's guide |
Further details
MUCH MORE THAN AN ALARM CENTRE
The device collects information about the detector's operation in an encrypted format, analyzes the data and, in case of an alarm, notifies the system owner and the Central Monitoring Station within milliseconds.
JEWELLER TECHNOLOGY
The device uses Jeweller radio technology to monitor detectors and ensure a quick response to danger.
Change the entire system to clear frequencies during jamming. The device is protected against viruses at the software level.
INSTALLATION
Ready to operate out of the box.
It is set up using the mobile application and the detectors are connected with just one click.
It can be mounted in minutes using the SmartBracket mount.
Download
Brochure (Italian)
WHO IS AJAX?
Founded in 2011, Ajax creates wireless alarm and fire systems with JEWELER wireless technology that allows you to safely monitor all connected network devices. Ajax offers solutions for the home, office or commercial activities, manageable via App, always updated and compatible with iOS and Android systems. Ajax devices are easy to install, in fact it takes only 15 seconds to connect the control panel to the sensors. They can also be integrated with surveillance cameras, have an almost zero margin of error and, in case of danger, in less than 150 milliseconds they send a notification (sms, push or call).
Ajax alarm systems use the latest wireless technology that makes all products reliable and always connected. In addition to excellent performance, Ajax systems are distinguished by their modern and elegant design.
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification
fill out this form
