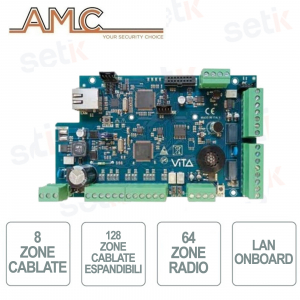

VITA 128 - 8 WIRED ZONES EXPANDABLE UP TO 128 - 64 RADIO ZONES - VIDEO MONITORING - ALARM CONTROL UNIT
Hybrid AMC wired/radio alarm control panel for residential installations, 8 zones expandable to 128 wired, 64 radio zones . Can be equipped with integrated LAN, audio support already on board, possibility of integrating GPRS/4G module (optional)
Voice support, Alarm Notifications. Manageable from smartphone via app.
FIND INSTALLER
VITA128 | AMC ELECTRONICS
ALARM CONTROL UNIT - 8 WIRED ZONES EXPANDABLE UP TO 128 - 64 RADIO ZONES - WIRED/RADIO - VIDEO MONITORING
AMC Hybrid wired/radio alarm control panel for residential installations, 8 zones expandable Up to 128 wired, 64 radio zones. Can be equipped with integrated LAN and audio support, Voice support, Alarm notifications. Manageable from smartphone via app.
Programming can be done locally with the keyboard or via cable software. Programming with the software can be done remotely Multi-format CMS, BUS line (4 wires) RS485
Product details
- Hybrid Wired / Radio Alarm Control Panel - AMC
- 8 Zones expandable to 128 wired
- 64 radio zones
- Can be equipped with IP Module (DC09 IP protocol for Contact ID and SIA IP)
- Phone numbers 8 for SMS/voice + 8 for CMS
- AMC Cloud Free
- Mobile viewing with official AMC app (iOS / Android)
- Voice Support
- BUS line (4 wires) RS485
- Multi-format CMS
- Multi-user management via APP
- Video Verification
- Central with removable terminals
Technical data sheet
- ZONE
- 8 - 128 zone
- double and triple balancing with EOL resistors
- RADIO ZONES
- 64 zone
- EXITS
- 5 on board, expandable to 8 (with output cards or keyboards)
- USER CODES
- 32
- AREAS
- 4
- GROUPS
- 4
- KEYBOARDS
- 4
- INSERTERS
- 4
- EVENT MEMORY
- 1000
- TELEPHONE NUMBERS
- 8 for SMS/voice + 8 for CMS
- COMMUNICATION
- Built-in LAN, GPRS/4G module (optional)
- REMOTE MANAGEMENT
- via App (iOS - Android)
- REMOTE PROGRAMMING
- via PC software
- MULTI-USER MANAGEMENT VIA APP
- YES
- VIDEO VERIFICATION
- YES
- TIMER PROGRAMMERS
- 4 for each day of the week
Further details
DISCOVER THE ALTERNATIVES
| Reference | Areas | Exits | Multi-user management via App | Video Verification |
|---|---|---|---|---|
| X 412 | 4-12 Zones Double and Triple zone with EOL resistors + 2 Zones for each keyboard* (Max 4 Zones) | 5 on board Expandable to 8 (With output cards or keyboards) | No | No |
| X 412 V | 4-12 Zones Double and Triple zone with EOL resistors + 2 Zones for each keyboard* (Max 4 Zones) | 5 on board Expandable to 8 (With output cards or keyboards) | Yes | Yes |
| X 824 | 8-24 Zones Dual and Triple zone with EOL resistors + 2 Zones for each keyboard* (Max 8 Zones) | 5 on board Expandable to 8 (With output cards or keyboards) | No | No |
| X 824 V | 8-24 Zones Dual and Triple zone with EOL resistors + 2 Zones for each keyboard* (Max 8 Zones) | 5 on board Expandable to 8 (With output cards or keyboards) | Yes | Yes |
| X 864 | 8-64 Zone Double and Triple Balancing with EOL resistors | 5 on board Expandable to 17 (With output cards or keyboards) | No | No |
| X 864 V | 8-64 Zone Double and Triple Balancing with EOL resistors | 5 on board Expandable to 17 (With output cards or keyboards) | Yes | Yes |
