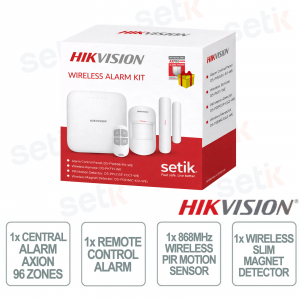

Professional wireless home alarm system tri-x Wireless 868Mhz Hikvision Kit AXIOM PRO 96 Zones with wireless communication:
♦ 1 Hikvision Axiom Alarm Center lan wi-fi GPRS 96 zones | DS-PWA96-M-WE
♦ 1 Wireless Keyfob Alarm Remote Control | DS-PKF1-WE
♦ 1 868Mhz wireless pir motion sensor | DS-PDP15P-EG2-WE
♦ 1 Wireless Slim Magnet Detector 1600m 868Mhz | DS-PDMC-EG2-WE
HIKVISION ADHESIVE SIGN AS A GIFT!
FIND INSTALLER
€488.49
€751.52 -35%
|
HAVE YOU ALREADY SEEN THE 64 ZONE VERSION? |
DS-PWA96-Kit-WE | HIKVISION AXIOM PRO HUB GPRS 868MHZ WIRELESS 96 ZONE CENTRAL ALARM KIT
INSTALLERS SPECIAL - PROMOTIONAL PRICE!
DAHUA ADHESIVE SIGN AS A GIFT
Hikvision aims to offer maximum security for its customers and this is why, every time it designs a product, it creates it Smart . Being Smart for Hikvision means having products compatible with other security systems , such as Hikvision surveillance cameras and so on.
|
WHAT DOES THIS KIT INCLUDE? .png) |
|
|
SUPER GIFT | 1X HIKVISION PROTECTED AREA STICKER SIGN Adhesive sign for the area protected by the anti-intrusion system and personalized HIKVISION alarm system |
|
AXIOM HUB: WHAT IS IT ABOUT? Axiom HUB is the new and innovative radio intrusion detection control unit that natively integrates Hikvision video management. The Wi-Fi transmission and the advanced Intruder Verification technology for video verification of alarms make Axiom HUB the ideal control unit for the protection of property and people in residential and small business applications. with an elegant design, simple to install and use thanks to the guide integrated voice. It is compatible with the HiK-Connect app, for complete control of the system (arming, disarming and monitoring. The revolutionary Intruder Verification video verification function allows users and supervisors to quickly verify and confirm system alarms through high-resolution video clips BROWSE THE BROCHURE
|
|

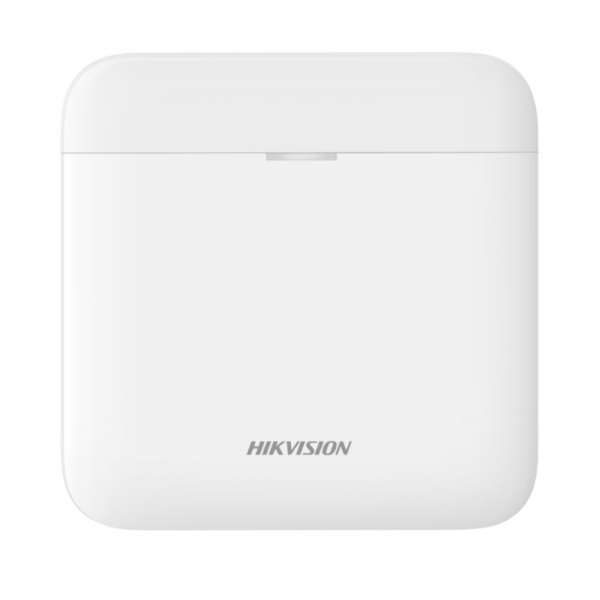

1x AXIOM HUB 3G/4G Alarm Control Unit (DS-PWA96-M-WE): Axiom Hub bidirectional RF 868MHz radio control unit, 98 inputs, 48 remote controls, 4 repeaters, 6 sirens and 8 tag readers and keypads. LAN+WIFI+3G/4G. Management of 7-second video clips on alarm via native integration with HikVision cameras, anti-opening and anti-tear tamper, internal backup buffer battery. Alarm transmission with voice protocol, push notification, Contact ID and Contact ID, integrated voice guidance, simplified programming via HIK Connect app, IVMS4200 and WEB. Video surveillance, alarm and video intercom integration via HikConnect APP and IVMS Documentation: Brochures |

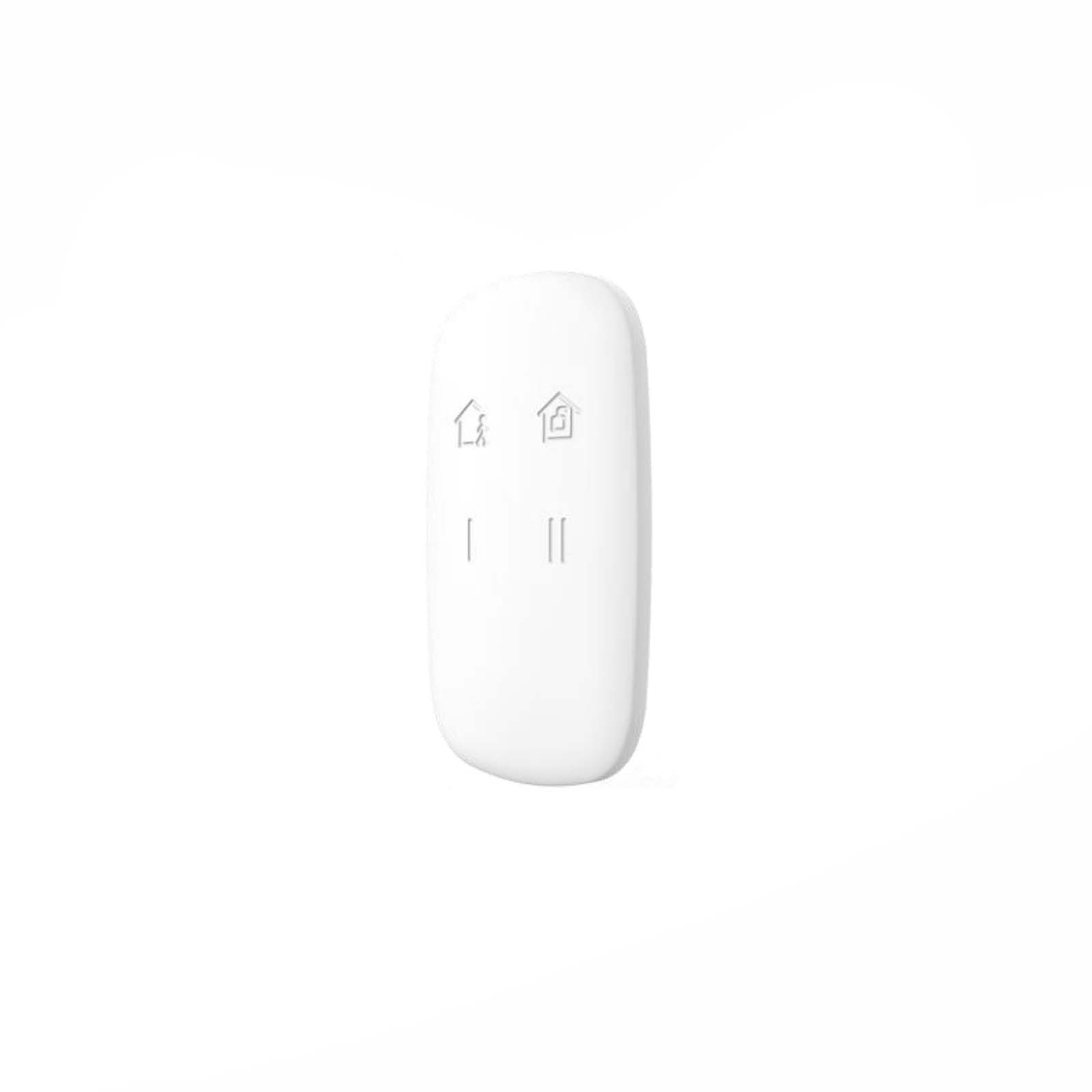

 1x Hikvision AXIOM HUB Wireless Keyfob Remote Control (DS-PKF1-WE):
Documentation: Brochures |

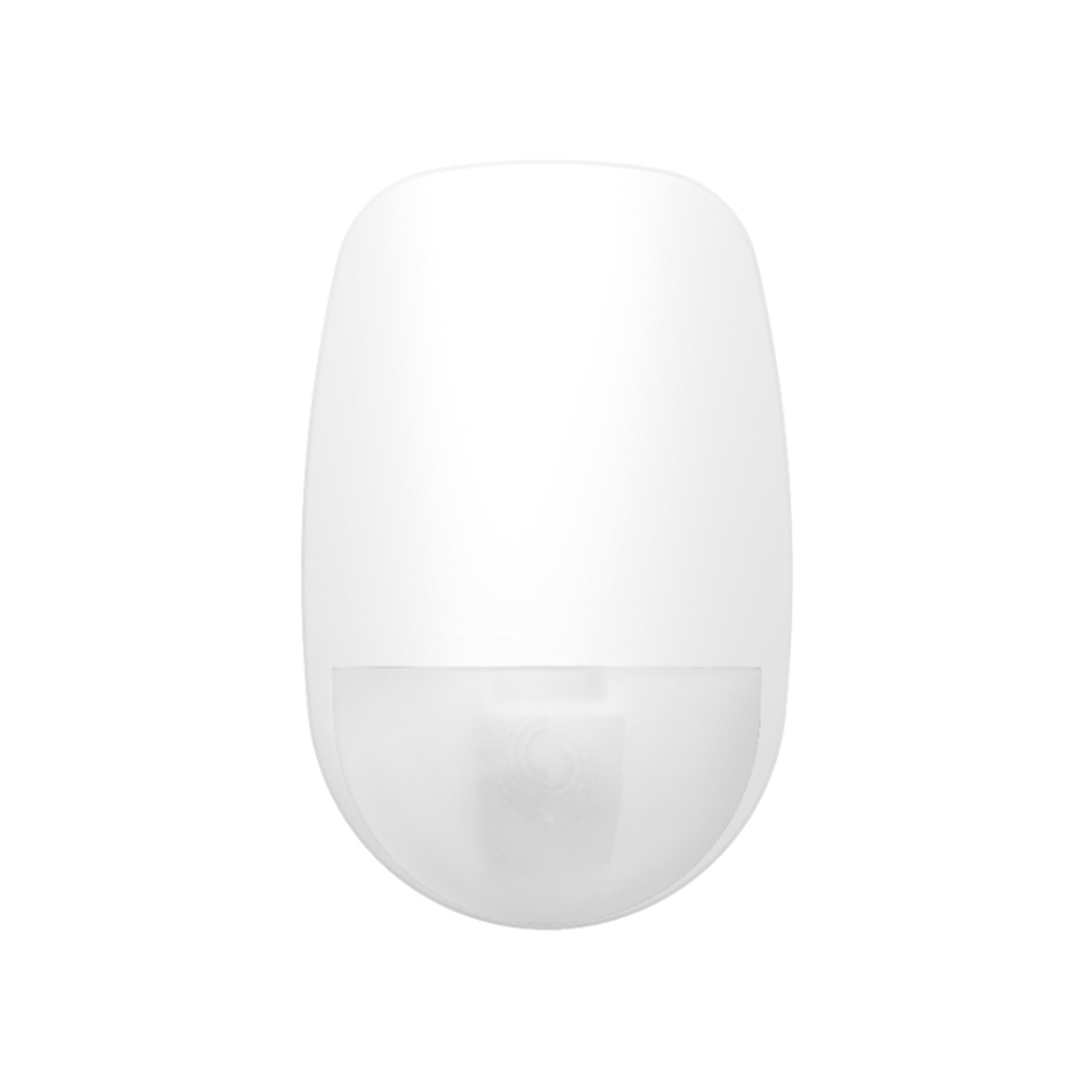

 1x PIR MOTION SENSOR (DS-PDP15P-EG2-WE: DS-PDP15P-EG2-WE with bidirectional wireless technology, this detector is the ideal choice for having a protected and safe home. - Volumetric lens; detection range 15m; angle 85.9° Documentation: Brochures |

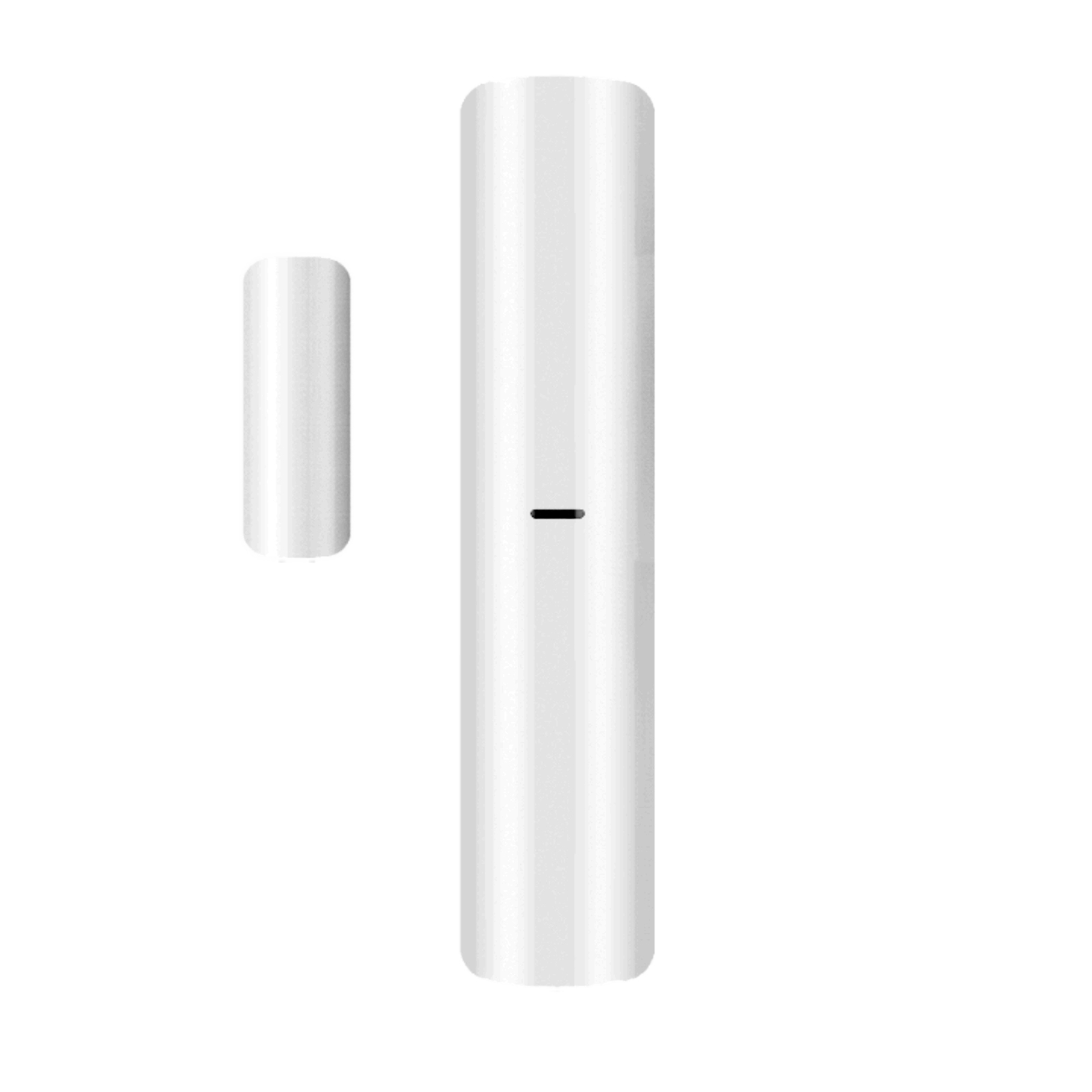

 1x Wireless Magnetic Contact (DS-PDMC-EG2-WE): - Communication frequency: 868MHz Documentation: Brochures |
Data sheet
| DS-PWA96-M-WE | |
| Basic | |
| Frequency | 868Mhz |
| Wireless type | 2-way wireless |
| Wireless Security | Frequency Hoping 128 AES Encryption |
| Wireless Zones | Up to 96 |
| Wireless outputs | (Up to 48 PIRCAMs) |
| Wireless Tag Readers & keypads | Up to 8 |
| Wireless Sounders | 6 (3 Internal+3 External) |
| Wireless Keyfobs | 48 |
| Wireless Repeaters | 4 |
| Tags | 48 |
| PIRCAM | Supported |
| Onboard IP CAMERA Integration | 4*7s clips have their own storage, not overrides each other |
| User | |
| Installations | 1 |
| Admin | 1 |
| Users | 46 |
| Key Software Features | |
| Areas | 32 |
| Voice prompt | Supported |
| Loudspeaker built in | Supported |
| Tag reader built in | Supported |
| LED status | Arm/Disarm, Alarm, Tamper, Fault, Cloud, Power |
| Memory log stored | 5000 |
| RS-232 output | Supported |
| Programming tools | Hik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/ Convergence Cloud |
| Firmware upgrade | APP Manual or Web |
| Arm Modes | Away/Stay |
| Automatic Arm/Disarm Timers | Supported |
| Forced Arming with Open Zones | Supported |
| Diagnostics of via the APP or Web | Supported |
| Communication | |
| LAN port | Supported |
| Wi-Fi on board | Supported(2.4G) |
| 3/4G on board | Supported |
| SIM Slot | Dual (Micro SIM) |
| SMS notification | Supported |
| Alarm voice call | Supported |
| ARC protocol | SIA DC09(SIA level 2, Contact ID), ISUP, ISAPI (SDK) Hik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Ademco 685) Supports video verification and remote control |
| User APP for operating | Supported |
| Installer APP for programming | Supported |
| Web server for maintenance (offline configuration) | Supported |
| Hardware | |
| Battery Stand by | 12 Hours |
| Power Supply | Built in power supply |
| Battery pack | Built in on board Battery Li |
| Housing | Plastic |
| Automat | |
| Schedules | Wall switch & Relay & Plug (Has time schedule) |
| Approvals | |
| EN | EN50131 Grade 2 |
| THERE IS | Supported |
| Rohs/Reach/WEEE | Supported |
| Others | |
| Operation temperatures | -10 °C to +55 °C |
| Dimension(W x H x D) | 170.0 mm (6.7") x 170.0 (6.7") mm x 38.6 mm (1.5") |
| Weight | 557.5 g(19.7 oz) |
MAXIMUM RELIABILITY
Axiom HUB uses solid and effective Pyronix Hikvision radio technology.
Stability is guaranteed by a historic and proven presence on the market and the sensors and radio transmission present a degree of reliability that has no equal. Thanks to its technological pluses, it guarantees stable and long-range communication up to 800m in an open field.
TWO-WAY RADIO TECHNOLOGY
Axiom HUB guarantees maximum transmission reliability thanks to the confirmation of receipt of the sent message and retransmission in the event of non-delivery. The proprietary dual antenna hopping algorithm allows you to always use the best channel for transmission while advanced jamming detection prevents attempted system disruptions, both accidental and intentional.
CONFIGURATION VIA WEB SERVER
Axiom HUB has a built-in web server that allows you to configure the device via a web browser. To guarantee maximum flexibility and time saving, configuration can be carried out quickly and effectively using a laptop PC or compatible smart device.
SIMPLE AND INTUITIVE PROGRAMMING
The configuration of the Axiom HUB system, thanks to the simple and intuitive interface, is immediate. Two configuration modes are possible: on-site installation with connection to the panel directly via web browser or with iVMS-4200 video management software and system programming through the Hik-Connect app. In addition, the "one push to learn" function present on all wireless intrusion devices guarantees simple and rapid learning of the same, bringing advantages in terms of time and money.
LAN, WI-FI AND 4G COMMUNICATION
The variety of communication technologies of Axiom HUB is unparalleled, in fact it has LAN, Wi-Fi, GPRS and 3G/4G connections natively integrated into the control panel. IP transmission channels can be used simultaneously to communicate with multiple devices, ensuring maximum safety in alarm transmission. In the event of an alarm event, Axiom HUB manages the transmission in an extremely flexible way via voice messages, push notifications, SMS or standard digital protocols for communication with the supervisors.
