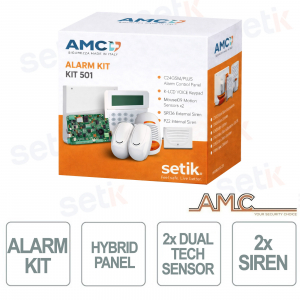

AMC Professional Home Alarm Kit with sensors KIT 501 C24GSM-PLUS

IN PROMOTION -15%

KIT501 / KIT-501 - AMC Electronic Anti-theft Kit including:

♦ 1x Central alarm 8 zones expandable to 24 C24GSM / PLUS
♦ 1x LCD Backlit Remote Keypad with K-LCD VOICE speakers
♦ 2x Dual Technology PIR / MW MOUSE Sensors 09
♦ 1x Self-powered orange flashing siren SR 136
♦ 1x PZ2 two-tone indoor piezoelectric siren

Reference: KIT 501

Brand: AMC

EAN: 8058258765204

FIND INSTALLER

https://www.setik.biz/en/complete-kit/7208-amc-kit-501-amc-professional-home-alarm-kit-with-sensors-kit-501-c24gsm-plus.html

€686.49

€807.64 -15%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

CHRISTMAS WEEK 2024 ×

FREE SHIPPING
ON THE ENTIRE CATALOGUE!

1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!

Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives

Did you know that ... WE ARE AMC PRIME DISTRIBUTORS?

Discover all the AMC products in our catalog

Description Product Details Data Sheet Further Details Download

KIT 501 | AMC ELECTRONICS

PROFESSIONAL COMPLETE HOME ALARM KIT WITH CONTROL UNIT - KEYBOARD - SENSORS AND SIRENS

KIT 501 this anti-theft alarm kit includes:

1x Hybrid alarm control unit with 8 inputs expandable to 24 integrated GSM module communicator ( C24GSM-PLUS )

1x LCD Backlit Remote Keypad with speaker ( K-LCD VOICE )

2x Dual tech sensors with integrated EOL resistors - EN 50131 2/4 - grade 2 ( MOUSE 09 )

1x Self-powered white siren - orange flashing ( SR 136 )

1x Indoor piezoelectric siren ( PZ 2 )

KIT501 :

1x C24GSM-PLUS CONTROL UNIT:

Wired / Radio Hybrid Alarm Control Panel - AMC
8 zones expandable to 24 wired
Partitionable zones up to 4 independent partitions
Up to 32 radio devices
Integrated GSM module communicator
GSM telephone line, for voice calls, sms and digital protocols
Possibility to use wireless zones
Up to 4 traditional keyboards, capacitive or with integrated audio support
Up to 4 proximity readers with completely independent programming and signals
Up to 8 fully configurable outputs for any function
Removable terminals
Voice Support
BUS line (4 wires) RS485
CMS Multiformat
Including box and power supply
Integrated Voice Management

1x K-LCD VOICE KEYBOARD:

Tastiera K-LCD Blue di AMC retroilluminata LCD

Keyboard - AMC
Model: K-LCD VOICE
For compatibility with control panels, consult the brochure in the download area
2-line 32-character Blue LCD display
Integrated Voice Device (Speaker)
3 signaling LEDs
Power supply voltage: 13.8Vdc
Rated current: 65mA
Maximum current: 185mA
Fixed backlight
Buzzer for sound entry and exit time
Jumper for disabling the tamper switch
EOL audio end-of-line jumper
Pressing of the keys signaled by a short sound impulse (can be excluded from the control unit)
Keyboard protective door
Dimensions: H 120, W 140, D 35 mm

2x DUAL TECH SENSORS WITH INTEGRATED EOL RESISTORS - MOUSE09

Sensore dual tech con resistenze EOL integrate

Motion detector - AMC
Dual tech dual tech PIR + MW sensor
Internal EOL end-of-line resistors for single and double balancing, integrated
90 ° opening angle
Maximum range 15 meters
Anti-opening tamper
Anti-creep device
Pulse counter
Interlocking closure without screws
White color
EN 50131-2-4 Grade 2 certified
Possibility of installation also with joint
Dimensions: 110 x 60 x 46 mm

1x SELF-POWERED SIREN WITH ORANGE FLASHING LIGHT:

SR 136 is a self-powered and self-protected outdoor siren, with 2Ah battery housing. Equipped with anti-opening and anti-tear device.

EN 50131-4 / Grade 2 approval.
Body colors: white
flashing color: orange
Dimensions: H 280, L 220, P 100 mm

1x INDOOR PIEZOELECTRIC SIREN:

PZ2 is an indoor, piezoelectric, two-tone siren, suitable for all installation needs. It is a product made entirely of ABS. It is equipped with an anti-tear and anti-opening device.

Body color: white

Dimensions: H 95, L 135, P 45 mm

Model	C24GSM / PLUS
Zones	8/24
Radio devices	32
Go out	5/8
Input expansion	2
Expansion of Outputs	1
Radio expansions	1
Total keyboards	4
Transponder and / or sockets	4
Partitions	4
Programmable users	32
Event memory	1000
Internal and external siren relay	separated
Tel CONTACT ID / VOICE numbers and SMS	8 + 8
Timers for activating partitions, users, exits	4 / day
Diet	2.1A @ 13.8Vdc

WHO IS AMC ELETTRONICA?

AMC , an Italian brand specialized in the Anti- intrusion sector and present in Lombardy since 1974, boasts an international distribution network with only made in Italy products. Attention to design and customer needs are just some of the most important qualities of this company. AMC is not only distribution but also production and analysis. In fact, at the Lurago d'Erba plant, there is a fully automatic line for the assembly of electronic boards in SMT technology and a "test laboratory" for verification and testing. Control panels, sirens and motion detectors are just some of the products manufactured and distributed by AMC Elettronica. AMC, a brand synonymous with quality and professionalism, also offers its customers a Free Cloud service and a completely free official application " AMC Manager " compatible with Android and Apple.
