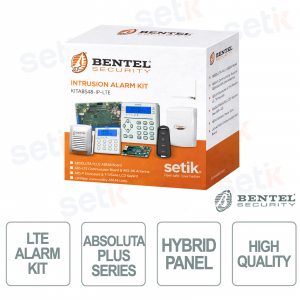

1x Bentel Wireless Absoluta Plus 48 Zone Wired Alarm Control Panel (ABS48)

Bentel Absoluta Plus ABS48 Burglar Alarm Central Wired Wireless PowerG Alarm, up to 48 zones, ideal intrusion system for residential and commercial systems. Up to 48 radio zones, connection to 8 keypads, 128 keys/tags, 16 radio keys and proximity readers. Remote control (APP, SMS, DTMF), programmable outputs. Grade 2 Certification

1X Plastic container for Absoluta with tamper microswitch - ABS-P - BENTEL

- Plastic Container - BENTEL
- Suitable for ABSOLUTA series
- Equipped with sabotage microswitch
- Modern Design

1X 2.6A Switching Power Supply - BAW35T12 - BENTEL

- Universal input voltage: 90 to 260Vac
- Output voltage: 13.8Vdc
- Output current: 2.6A
- Protection against: Short circuit - Overload - Overvoltage - Reverse battery polarity)
- Temperature compensation
- No-load consumption less than 0.75W

• - Compatible with ABSOLUTA and KYO series control units

1X Absoluta Series Keyboard with LCD Display - White - ABSOLUTA TWHITE

- Keyboard - BENTEL

- Model: T-White
- Compatible only with ABSOLUTA series control units
- 2-line by 16-character blue LCD screen with backlight
- Extremely intuitive user menu interface
- Integrated proximity reader compatible with: Proxi-Cards, Mini-Proxi, Proxi-Tags.
- 3 built-in programmable input/output terminals.
- Support roller shutter sensor.
- Terminals are on the bottom
- Adjustable display brightness and contrast.
- 4 system status LEDs.
- 3 LEDs for proximity reader: arming, arming A and B.
- Quality product

1x 4G/GSM/GPRS/EDGE communicator add-on card for Absoluta series - ABS-LTE

1x 4G/GSM/GPRS/EDGE communicator add-on card for Absoluta series - ABS-LTE

- Communicator - Bentel
- Supports 4G (LTE Cat 1), GSM, GPRS and EDGE standards
- Supports VoLTE (Voice over LTE) technology
- Sending event notifications on cellular network and fiber protocol
- Notifications via email and ABSOLUTA app and also via SMS

1x LAN/WAN communication card - ABS-IP - Bentel

1x LAN/WAN communication card - ABS-IP - Bentel

- Additional IP communicator card for Absoluta Series

• - LAN/WAN Internet protocol with 128-bit encryption
• - Plug and play: router configuration is not required
• - Event notification via email
• - Transmission of events to Sur-Gard receivers
• - Remote data up/download via BOSS software
• - Support for ABSOLUTA APP 2.0
• - ITV2 Third Party Integration Protocol

1x GSM Antenna suitable for Absoluta plastic container - ABS-AK

1x GSM Antenna suitable for Absoluta plastic case - ABS-AK

- GSM Antenna Kit - Bentel
- Compatible with ABSOLUTA control units in plastic container.
- Kit composition: GSM antenna + Cable for installing the ABS-GSM card in the plastic container

1X Self-Powered Siren - Flashing - NEKA

1X Self-powered Siren - Flashing - BENTEL (NEKA)

- NEKA Self-Powered Outdoor Siren - Bentel Security
- Type: Siren with flasher
- 4 alarm inputs (three with programmable polarity, ensuring compatibility with any type of control unit)
- Possibility to program 2 different sets of sounds, associating them with different types of alarm
- Self-protection against break-ins, removal, cable cutting
- Programming maximum alarm time.
- High acoustic efficiency magnetodynamic exponential horn
- Sturdy plastic container resistant to the most adverse weather conditions
- Additional protection with tropicalized steel cover
- Suitable for outdoor environments
- Simple installation with drilling template
- Battery test circuit with low battery flasher exclusion
- Battery NOT included. To purchase it click here
- Size: 208x252x98 mm. Weight: 2.3Kg.

WHAT HAS CHANGED?

New Hardware and Firmware Cards

New PowerG receiver, BW-PGH

All wireless devices are in powerG technology

Temperature and light operations in the events and actions matrix

The keyboards show the internal and external temperature

Possibility to program the insertion schemes with the BW-RCH

Card size

Compatible with all BPI peripherals

Compatible with ABS-GSM

Compatible with ABS-IP

Compatible with M-Touch keypad

Unaltered programming (software and method)

User App (Absoluta PRO and Absoluta Free) updated for Absoluta Plus central units

Home automation functions

Remote maintenance and support (BOSS software)

Available with EN Grade 2 and 3 certification

PowerG Wireless Radio Technology

The new Absoluta Plus is equipped with Wireless Power G Technology , which guarantees high immunity from interference, a more robust system and maximum 2KM coverage.
Supports 4 frequencies in 868-869 MHz bands and the frequency changes 64 times per second. Increased communication efficiency as well as battery life. No collision.

Fully two-way communication

The new Absoluta Plus control units are completely bidirectional!
- Remote management of the system and programming
- Diagnosis and maintenance
- No transmission when disengaged
- Ability to register devices in the office

Absolute Home Automation

With the user application and thanks to the central automations you can set annual, weekly and daily programmers and timers.
Up to 8 automatic arming/disarming during the day for each individual area of the control panel. Up to 20 models to apply
Up to 20 timer models with 8 activations per day.
Timers can be associated with:
- Exits
- Users
- Keys, tags and remote controls
- Calls
- SMS
- Insertions and disinsertions

There are also Chrono Thermostat functions (temperature functions with PowerG + Timers devices)

Smart SMS:

The control panel automatically creates the SMS (Control panel + event + zone label)

E-mail:

32 email addresses in 4 groups:
- Technicians
- System administrators
- Supplements
- End users

Talk and Listen:

With AS100 you can:
- Activate the ambient listening function
- Activate two-way communication
- Play voice messages

User APP - Absoluta App and Absoluta Pro:

Ability to log in in various ways (Touch ID or Face ID), PIN, Password.
Complete and fast management of all functions (gate opening, activating a scenario etc..)

BOSS Software v4.30

Compatibility with BOSS software v4.30
- Adding wireless detectors, enabling and pairing wireless detectors
- Management of devices that have brightness and temperature sensors
- Management of devices with auxiliary inputs (BW-MCN, BW-MCB, BW-312,BW-SHK, BW-IO)
- BW-IO output programming
- Added BW-SRO/BW-SRI wireless sirens
- Radio control programming
-

Greater safety:

Reliable and affordable protection:
- Highly reliable and accurate detection and security for the protection of people and property
- Outdoor wireless and wired detectors to stop intruders before they enter
- Advanced encryption and other system protections prevent digital attacks and prevent interference and blocking from other devices
- End-user app that allows system operations from any location, also supporting many home automation actions

Wide range of compatible devices:

Installation scenarios:

Ideal for residential and commercial systems, wanting a hybrid solution for superior security.

Certifications:

This power plant is EN Grade 2 certified
