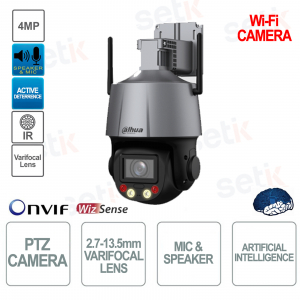

ONVIF PTZ IP Wi-Fi Camera - 4MP - 5x 2.7-13.5mm - Artificial Intelligence - For Outdoor

-57%

SD3C405DB-GNY-AW-PV - Dahua ONVIF IP Wi-Fi PTZ Camera with Artificial Intelligence ( fence crossing detection; wandering detection; fast movement; parking detection; vehicle/man alarm classification ) - SMD - 4MP - Optics 2.7-13.5mm 5x zoom, 1/2.8"4MP CMOS sensor - Active deterrence - 2 IR LEDs 50m - H.265+ Smart Codec - Triple Stream, WDR 120dB , Day/Night, BLC, HLC, 2D/3D-NR, MicroSD slot up to 512GB (not included) - RJ-45 - Integrated speaker and microphone - Two-way audio - Alarm - IP66 protection for outdoors.

Reference: SD3C405DB-GNY-AW-PV

Brand: Dahua

EAN: 6923172572660

FIND INSTALLER

https://www.setik.biz/en/cameras/9965-dahua-sd3c405db-gny-aw-pv-onvif-ptz-ip-wi-fi-camera-4mp-5x-27-135mm-artificial-intelligence-for-outdoor.html

€222.96

€518.50 -57%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Quantity

Available from 30 December 2024

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

CHRISTMAS WEEK 2024 ×

FREE SHIPPING
ON THE ENTIRE CATALOGUE!

1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!

Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives

Description Product Details Technical data sheet Further Details Download

ONVIF IP PTZ CAMERA - 4MP - ARTIFICIAL INTELLIGENCE - AUDIO - ALARM - DAHUA - SD3C405DB-GNY-AW-PV - SMD - Wi-Fi

Dahua ONVIF® IP external camera - SD3C405DB-GNY-AW-PV
4Megapixel resolution - 2.7-13.5mm varifocal optics - H.265+ compression - CMOS 1/2.8" 4MP
Artificial Intelligence: Perimeter Protection, face detection, SMD Plus, Auto Tracking - Active Deterrence - IR 50m - Day/Night (ICR) - WDR 120dB - Day/Night, BLC, HLC, 2D/3D DR, 512GB MicroSD Slot (not included) - Built-in microphone and speaker - Two-way audio - 1in/1out alarm - RJ45 10/100M network interface - IP66 protection for external use - Power supply 12 VDC, 1.5 A ± 25%.

Product details

IP camera outdoor ONVIF® PTZ Dahua - SD3C405DB-GNY-AW-PV
4Megapixel 2560x1440p progressive scan resolution
Varifocal lens 2.7-13.5mm 5x Optical Zoom
1/2.8" CMOS sensor with 4MP
IR technology: Night vision up to 50m
30m warm light illuminator
Active deterrence with sound and light signals
24/7 viewing
Video compression up to H.265+
Triple Video Stream
Artificial Intelligence Features (Perimeter Protection, Face Detection, SMD Plus, Auto Tracking)
Day/Night(ICR)
Digital WDR 12dB
BLC, HLC, AWB, 2D/3D NR, Motion Detection
Remote viewing with DMSS or DSS Pro by Dahua
IP66 protection (Rain/Dust) - Suitable for indoor/outdoor environments
TVS 6000V lightning protection
MicroSD memory card slot (with capacity up to 512GB - not included)
Speaker
Built-in microphone
Two-way audio
1 alarm input and 1 alarm output
Dimensions: 142.6mm × 140.0mm × 236.2mm
Item Weight: 1.1kg
Operating temperature: -30°C to +60°C
Humidity: up to 95%

Data sheet

SD3C405DB-GNY-A-PV

Room

Image Sensor

1/2.8" CMOS

Pixels

4 MP

Max.Resolution

2560(H)×1440(V)

ROM

128MB

RAM

512MB

Electronic Shutter Speed

1/1 s–1/30,000 s

Scanning System

Progressives

Min. Illumination

Color: 0.005 lux@F1.6
B/W: 0.0005 lux@F1.6
0 lux (IR light on)

Illumination Distance

50 m (164.04 ft) (IR)
30 m (98.43 ft) (Warm light)

Illuminator On/Off Control

S/N Ratio

≥55dB

Audio

Audio Compression

G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; PCM

Network

Network Port

RJ-45 (10/100 Base-T)

Wifi

Yes

Standard Wi-Fi

IEEE802.11b; IEEE802.11g; IEEE802.11n

Wi-Fi Frequency Range

2.4 GHz

Wi-Fi Transmission Rate

150Mbps

Network Protocol

FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; SMB; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP

Interoperability

CGI;SDK;ONVIF (Profile S&G&T);P2P

Streaming Method

Unicast/Multicast

User/Host

20 (total bandwidth: 64M)

Storage

FTP/SFTP; Micro SD card (512GB); NAS

Browsers

IE 9 and later versions
Chrome 41 and later versions
Firefox 50 and later versions
Safari 10 and later versions

Management Software

DMSS;DSS Pro

Mobile Client

iOS;Android

Certification

Certifications

CE: EN55032/EN55024/EN50130-4

Port

Audio Input

1 channel (built-in mic)

Audio Output

1 channel (built-in speaker)

Alarm Linkage

Capture; recording; send email; presets; audio; warning light

Alarm Event

Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection

Power

Power Supply

12 VDC, 1.5 A ± 25%

Power Consumption

Basic: 3W
Max: 11 W (illuminator + PTZ + speaker)

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

≤95%

Protection

IP66, TVS 6000V lightning proof; surge protection; voltage transient protection

Structure

Product Dimensions

142.6 mm × 140.0 mm × 236.2 mm (5.61" × 5.51" × 9.30") (L × W × H)

Net Weight

1.1 kg (2.43 lb)

Gross Weight

1.7 kg (3.75 lb)

Further details

This product complies with the Onvif standard

All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems

This camera is ONVIF® compatible

Resolution:

4 Megapixel 2560x1440p resolution, progressive scan.

Smart H.265+

Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network.

Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression

Video compressione Smart H.265+

This camera is equipped with a double IR LED illuminator with a maximum range of approximately 50m.

Optics:

This camera features a 2.7-13.5mm varifocal lens.

5x optical zoom

Supports Intelligent 3D Positioning with DH-SD protocol. In addition to movement on the camera axis, this system also allows positioning in terms of depth, and the same can be stored in the Presets

Generic PTZ Functions:

Pan/Tilt Range
Pan: 0° to 355° Tilt: –15° to +90°

Manual Control Speed
Pan: 0.1°/s–36°/s Tilt: 0.1°/s–25.8°/s

Preset Speed
Pan: 35.7°/s; Tilt: 27.1°/s

Presets
300

Power-off Memory
Yes

Idle Motion
Presets

Artificial intelligence:

This camera provides VIDEO ANALYSIS (IVS) functions with ARTIFICIAL INTELLIGENCE:

- Perimeter protection
- Face detection
- SMD Plus

This camera features the AUTO TRACKING function.
The system will identify objects moving in a specific video-surveillance area and will automatically enlarge it for a better view of the tracked object.

Day/Night:

It allows you to adapt the lens to Night/Day vision and the consequent management of the IR illuminator automatically

IR Cut Filter:

The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies. This improves image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.

BLC (Black Light Compensation):

BLC is one of 3 solutions for managing images with contrast. The BLC function allows a discreet adaptation to all those situations where the recording is difficult (entrances or exits of car parks, recording of license plates, presence of particular lights etc...)
