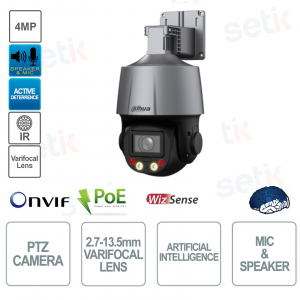

ONVIF POE IP PTZ Camera - 4MP - 5x 2.7-13.5mm - Artificial Intelligence - For Outdoor

BEST PRICE -57%

SD3C405DB-GNY-A-PV - Dahua PTZ IP Poe ONVIF Camera with Artificial Intelligence ( fence crossing detection; loitering detection; fast movement; parking detection; vehicle/human alarm classification ) - 4MP - 2.7-13.5mm motorized 5x zoom lens, 1/2.8" 4MP CMOS sensor - Active deterrence - IR 50m - H.265+ Smart Codec - Triple Stream, WDR 120dB , Day/Night, BLC, HLC, 2D/3D-NR, MicroSD slot up to 512GB (not included) - RJ-45 - Built-in speaker and microphone - Two-way audio - Alarm - TVS600V lightning protection - IP66 outdoor protection - Supports PoE+.

Reference: SD3C405DB-GNY-A-PV

Brand: Dahua

EAN: 6923172572608

FIND INSTALLER

https://www.setik.biz/en/cameras/9964-dahua-sd3c405db-gny-a-pv-onvif-poe-ip-ptz-camera-4mp-5x-27-135mm-artificial-intelligence-for-outdoor.html

€256.53

€596.58 -57%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Quantity

Hurry up! Only a few pieces left in our warehouse!

discover the available quantity

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

CHRISTMAS WEEK 2024 ×

FREE SHIPPING
ON THE ENTIRE CATALOGUE!

1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!

Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives

Description Product Details Technical Sheet Further Details Download

PTZ IP POE ONVIF TIOC CAMERA - 4MP - ARTIFICIAL INTELLIGENCE - AUDIO - ALARM - DAHUA - SD3C405DB-GNY-A-PV

Dahua ONVIF® IP external camera - SD3C405DB-GNY-A-PV
4Megapixel Resolution - 2.7-13.5mm Varifocal Lens - H.265+ Compression - 1/2.8" 4MP CMOS
Artificial Intelligence: Perimeter Protection, Face Detection, SMD Plus - Active Deterrence - IR 50m - Day/Night (ICR) - WDR 120dB - Day/Night, BLC, HLC, 2D/3D DR, 512GB MicroSD Slot (not included) - Built-in Microphone and Speaker - Two-way Audio - 1in/1out Alarm - 10/100M RJ45 Network Interface - IP66 Outdoor Protection - TVS6000V Lightning Protection - PoE+ Support - Power Supply 12 VDC, 1.5 A ± 25%.

Product details

IP Camera Outdoor ONVIF® PTZ Dahua - SD3C405DB-GNY-A-PV
Resolution 4Megapixel 2560x1440p progressive scan
2.7-13.5mm Varifocal Lens 5x Optical Zoom
1/2.8" CMOS sensor with 4MP
IR Technology: Night vision up to 50m
Warm light illuminator 30m
Active deterrence with sound and light signals
24/7 Vision
Video compression up to H.265+
Triple Video Stream
Artificial Intelligence Features (Perimeter Protection, Face Detection, SMD Plus)
Day/Night(ICR)
Digital WDR 12dB
BLC, HLC, AWB, 2D/3D NR, Motion Detection
Remote Viewing with Dahua DMSS or DSS Pro
IP66 Protection (Rain/Dust) - Suitable for indoor/outdoor environments
TVS 6000V lightning protection
MicroSD memory card slot (up to 512GB capacity - not included)
Speaker
Built-in microphone
Two-way audio
1 alarm input and 1 alarm output
Dimensions: 142.6mm × 140.0mm × 236.2mm
Item Weight: 1.1kg
Operating temperature: -30°C to +60°C
Humidity: up to 95%

Technical data sheet

SD3C405DB-GNY-A-PV

Room

Image Sensor

1/2.8" CMOS

Pixel

4 MP

Max. Resolution

2560 (H) × 1440 (V)

ROM

128 MB

RAM

512 MB

Electronic Shutter Speed

1/1 s–1/30,000 s

Scanning System

Progressive

Min. Illumination

Color: 0.005lux@F1.6
B/W: 0.0005 lux@F1.6
0 lux (IR light on)

Illumination Distance

50 m (164.04 ft) (IR)
30 m (98.43 ft) (Warm light)

Illuminator On/Off Control

Y/N Ratio

≥55dB

Audio

Audio Compression

G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; PCM

Network

Network Port

RJ-45 (10/100Base-T)

Network Protocol

FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; SMB; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP

Interoperability

CGI;SDK;ONVIF (Profile S&G&T);P2P

Streaming Method

Unicast/Multicast

User/Host

20 (total bandwidth: 64M)

Storage

FTP/SFTP; Micro SD card (512GB); NAS

Browser

IE 9 and later versions
Chrome 41 and later versions
Firefox 50 and later versions
Safari 10 and later versions

Management Software

DMS;DSS Pro

Mobile Client

iOS;Android

Certification

Certifications

CE: EN55032/EN55024/EN50130-4

Port

Audio Input

1 channel (built-in mic)

Audio Output

1 channel (built-in speaker)

Alarm Linkage

Capture; recording; send email; presets; audio; warning light

Alarm Event

Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection

Power

Power Supply

12VDC, 1.5A ± 25%
PoE+ (802.3at)

Power Consumption

Basic: 3W
Max.: 12 W (illuminator + PTZ + speaker)

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

≤95%

Protection

IP66, TVS 6000V lightning proof; surge protection; voltage transient protection

Structure

Product Dimensions

142.6 mm × 140.0 mm × 236.2 mm (5.61" × 5.51" × 9.30") (L × W × H)

Net Weight

1.1 kg (2.43 lb)

Gross Weight

1.7 kg (3.75 lb)

Further details

The advantage of a PoE camera is clear, it can be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation.

This product complies with Onvif standard

All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif, means having a camera that is an end in itself that can never be used together with recording systems

This camera is ONVIF® compatible

Resolution:

4 Megapixel resolution 2560x1440p, progressive scan.

Smart H.265+

Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network.

Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression.

Video compressione Smart H.265+

This camera is equipped with double IR LED illuminator with a maximum range of approximately 50m.

Optics:

This camera features a 2.7-13.5mm varifocal lens.

5x optical zoom

Supports Intelligent 3D Positioning with DH-SD protocol. This system allows not only movement on the camera axis but also positioning in terms of depth, and the same can be stored in the Presets

Generic PTZ Functions:

Pan/Tilt Range
Pan: 0° to 355° Tilt: –15° to +90°

Manual Speed Control
Pan: 0.1°/s–36°/s Tilt: 0.1°/s–25.8°/s

Preset Speed
Pan: 35.7°/s; Tilt: 27.1°/s

Presets
300

Power off Memory
Yes

Idle Motion
Presets

Artificial intelligence:

This camera features VIDEO ANALYSIS (IVS) functions with ARTIFICIAL INTELLIGENCE:

- Perimeter protection
- Face detection
- SMD Plus

Day/Night:

It allows you to adapt the lens to Night/Day vision and the consequent management of the IR illuminator automatically

IR Cut Filter:

The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions by filtering the typical infrared frequencies. This improves image quality. In nighttime conditions the filter is removed as it is necessary to capture the typical IR frequencies.

BLC (Black Light Compensation):

BLC is one of the 3 solutions for managing images with contrast. The BLC function allows a discrete adaptation to all those situations where shooting is difficult (Entrances or exits of parking lots, shooting of license plates, presence of particular lights etc...)
