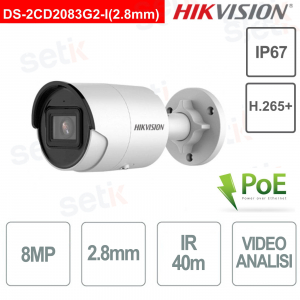

DS-2CD2083G2-I (2.8mm) IP PoE outdoor fixed bullet camera 8MP 4K ULTRA-HD , 2.8mm fixed lens, 1/2.8" CMOS sensor, H.265+. Day&Night (ICR), 40M IR illuminator, Triple Stream , Video Analysis , Face and Vehicle Detection , WDR 120dB , ROI, BLC, 3D DNR, HLC, MicroSD Slot up to 512Gb (NOT INCLUDED) , ANR, Motion Detection, access to Hik-Connect, reset button, IP67 protection, metal .
€303.72
€467.26 -35%PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
|
| POE (Power Over Ethernet): The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation |
| Resolution: This camera features a resolution of 8MP 4K ULTRA HD in real time! (3840 × 2160 pixels) at 20fps 1/2.8” 8Megapixel progressive scan CMOS image sensor
|
Optics: |
H.265+ compression
An intelligent algorithm self-developed by Hikvision which can greatly reduce the bitrate of video based on standard H.265 codec. Hikvision's H.265+ reduces transmission bandwidth and required storage capacity without impacting video quality, thanks to three key technologies: prediction coding, noise suppression and flexible bit rate control. Optimized for multiple surveillance scenarios, it allows for greater use of ultra HD surveillance cameras, such as 8 MP and 12 MP cameras. |
Infrared IR Illuminator: |
|
Smart Feature-set - Video Analysis: -Classification of humans and vehicles |
| WDR 120dB (Wide Dynamic Range): WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental when shooting from inside to outside, license plates, shadowed points or all situations where there is no homogeneity of light. The higher the db value, the greater the camera's ability to manage the strong difference in backlighting present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db managing very strong contrast levels.  |
| ROI (Region Of Interest): The images deriving from IP cameras are "compressed", therefore the quality is set during the recording phase. Especially on cameras with very high resolution, it is often necessary to reduce the quality in order to guarantee reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus guaranteeing greater image definition.  |
| Day/Night: It allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.
|
| BLC (Back Light Compensation): it is one of the 3 possible steps in managing images with Contrast, typical situations are (Entries or exits from car parks, license plates, particular lights, entrances with shots from inside to outside, etc.) light compensation is one of the most as complex as possible, the BLC function allows discreet adaptation to these situations |
| AGC (Automatic Gain Control): integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings. |
3D-DNR: |
| MicroSD slot: Present microSD slot up to 512GB - NOT INCLUDED |
| Diet: A 12V DC power supply is required to operate this camera (not included)  |
Room | |
Image Sensor | 1/2.8" Progressive Scan CMOS |
Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
Shutter Speed | 1/3 s to 1/100,000 s |
Slow Shutter | Yes |
P/N | P/N |
Wide Dynamic Range | 120dB |
Day & Night | IR cut filter |
Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
Lens | |
Lens Type | Fixed focal lens, 2.8, 4, and 6 mm optional |
Focal Length & FOV |
2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 128° |
Lens Mount | M12 |
Iris Type | Fixed |
Openings | F1.6 |
DORI | |
DORI | 2.8mm: D: 88m, W: 35m, R: 17m, I: 9m |
Illuminator | |
Supplement Light Type | IR |
Smart Supplement Light | Yes |
IR IR Wavelength | 850 nm |
IR Range | Up to 40 m |
Video | |
Max.Resolution | 3840×2160 |
Main Stream | 50Hz: 20fps (3840 × 2160) 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60Hz: 20fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
Sub-Stream | 50Hz: 25fps (1280×720, 640×480, 640×360) 60Hz: 30fps (1280×720, 640×480, 640×360) |
Third Stream | 50Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360) 60Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360) *Third stream is supported under certain settings. |
Video Compression | Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 *Third stream is supported under certain settings. |
Video Bit Rate | 32Kbps to 16Mbps |
H.264 Type | Baseline Profile/Main Profile/High Profile |
H.265 Type | Main Profile |
H.264+ | Main stream supports |
H.265+ | Main stream supports |
Bit Rate Control | CBR/VBR |
Scalable Video Coding (SVC) | H.264 and H.265 encoding |
Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
Audio | |
Audio Compression | -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
Audio Bit Rate | -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16-64 Kbps (AAC-LC)/32-192Kbps (MP2L2)/8-320Kbps (MP3) |
Audio Sampling Rate | -U: 8kHz/16kHz/32kHz/44.1kHz/48kHz |
Environment Noise Filtering | -U: Yes |
Network | |
Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP , WebSockets, WebSockets |
Simultaneous Live View | Up to 6 channels |
APIs | Open Network Video Interface (Profile S, Profile G), ISAPI, SDK |
User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
Security | Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
Network Storage |
NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
Client | iVMS-4200, Hik-Connect, Hik-Central |
Web Browsers | Plug-in required live view: IE 10, IE 11 Free live view plug-in: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
Image | |
Image Parameters Switch | Yes |
Image Settings | Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
Day/Night Switch | Day, Night, Auto, Schedule |
Image Enhancement | BLC, HLC, 3D DNR |
SNR | ≥ 52 dB |
Interface | |
Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
On-Board Storage | Built-in memory card slot, support microSD card, up to 512GB |
Built-in Microphone | -U: Yes |
Reset Key | Yes |
Event | |
Basic Event | Motion detection (human and vehicle targets classification), video tampering alarm, exception |
Face Detection | Yes |
Deep Learning Function | |
Perimeter Protection | Line crossing detection, intrusion detection Supports human and vehicle targets classification |
General | |
Linkage Method | Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email |
Material | Aluminum alloy body IR cover: plastic |
Dimension | Ø70 mm × 161.7 mm (Ø2.8" × 6.4") |
Package Dimension | 216 mm × 121 mm × 118 mm (8.6" × 4.8" × 4.7") |
Weight | Approx. 495 g (1.1 lb.) |
With Package Weight | Approx. 759 g (1.7 lb.) |
Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
Startups and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
Language | 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
General Function | Anti-flicker, heartbeat, password reset via email, pixel counter |
Firmware Version | V5.5.113 |
Software Reset | Yes |
Power Consumption and Current | 12 VDC, 0.5 A, max. 6W PoE (802.3af, 36 V to 57 V), 0.2 A to 0.13 A, max. 7.2W |
Power Supply | 12 VDC ± 25%, reverse polarity protection PoE: 802.3af, Class 3 |
Power Interface | Ø5.5 mm coaxial power plug |
Approval | |
EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) |
Safety | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950- 1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015) |
Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
Protection | IP67 (IEC 60529-2013) |
