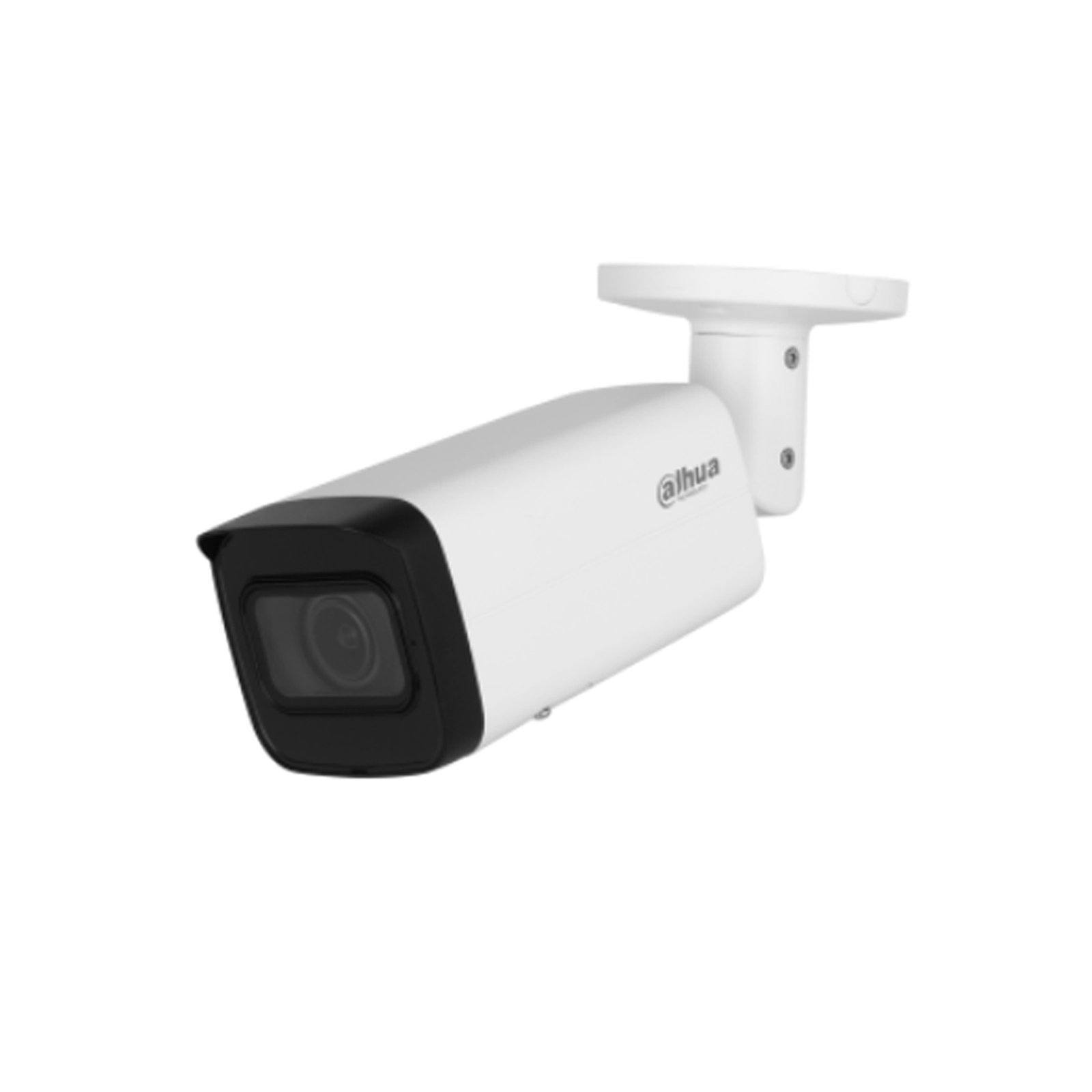

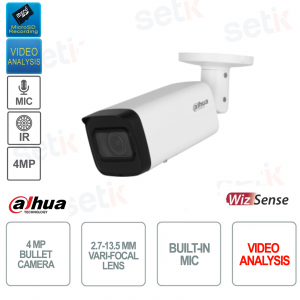

POE ONVIF® Bullet IP Camera - 4MP - 2.7-13.5mm - Video Analysis - White

Product details

• ONVIF® PoE outdoor IP camera - Dahua - IPC-HFW2441T-ZS
• Resolution: 4MP 2688(H)×1520(V)
• 1/2.9" CMOS image sensor
• Motorized various focal length optics 2.7-13.5mm
• Double Stream Video
• Video Compression: up to H.265+ smart codec
• WDR(120dB) , Day/Night (ICR), 3DNR, BLC, OSD, HLC, Mirror Mode, Privacy Masks
• Smart IR illuminator 4 LEDs 60m
• Built-in microphone
• Alarm linked to events
• Video Analysis: Perimeter Protection, Smart Search
• IP67 protection (Dust/Immersion), ideal for outdoor use
• 12 VDC/PoE (802.3af) power supply (Not Included)
• PoE power supported
• MicroSD slot (Max 256GB not included)
• RJ45 10/100M Ethernet LAN
• Dimensions: 238.5mm × 90.7mm × 90.7mm
• Net weight: 0.73kg
• Operating temperature: –30 °C to +60 °C
• Metal casing
• 24 Month Warranty

Data sheet

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P

Interoperability

ONVIF (Profile S/Profile T); CGI

User/Host

6 (Total bandwidth: 36M)

Storage

FTP; SFTP; Micro SD card (support max. 256 GB)

Browsers

IE
Chrome
Firefox

Management Software

SmartPSS Lite; DSS; DMSS

Mobile Client

iOS; Android

Cyber Security

Video encryption; Configuration encryption; Digests; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrades

Certification

Certifications

CE-LVD: EN 62368-1

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

FCC: 47 CFR FCC Part 15, Subpart B

UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Port

Audio Input

1 channel (RCA port) (Only - ZAS supports)

Audio Output

1 channel (RCA port) (Only - ZAS supports)

Alarm Input

1 channel in: 5mA 3V–5V DC (Only - ZAS supports)

Alarm Output

1 channel out: 300mA 12V DC (Only - ZAS supports)

Power

Power Supply

12 VDC/PoE (802.3af)

Power Consumption

Basic: 2.4W (12VDC); 3.1W (PoE)
Max. (H.265+intelligence on +WDR +IR on): 8.7 W (12 VDC); 10.1W (PoE)

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

≤95%

Storage Temperatures

–40 °C to +60 °C (–40°F to +140°F)

Protection

IP67, IK10 (optional)

Structure

Casing Material

Metal

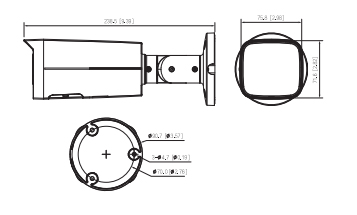

Product Dimensions

238.5 mm × 90.7 mm × 90.7 mm (9.39" × 3.57" × 3.57") (L × W × H)

Net Weight

0.73 kg (1.6 lb)

Gross Weight

0.99kg (2.2lb)

Further details

	All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems This camera supports Onvif version
	The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation
	Smart H.265+ Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
	This camera features a resolution of 4 Megapixels!
	2.7.13.5mm fixed lens
	This camera provides VIDEO ANALYSIS (IVS): - Perimeter protection - Smart Search
	Smart IR illuminator 1 LED 60 meters
	Microphone integrated into the device!
	ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental when shooting from inside to outside, license plates, shadowed points or all situations where there is no homogeneity of light.
	It allows you to adapt the lens to Night/Day vision and the consequent management of the IR illuminator automatically.
	The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
	BLC (BACK LIGHT COMPENSATION) is one of the 3 solutions for managing images with contrast. The BLC function allows a discreet adaptation to all those situations where recording is difficult (entrances or exits of car parks, recording of license plates, presence of particular lights etc...).
	Possibility to insert Micro SD up to a maximum of 256GB (Not Included)
	Protection level IP67 (Dust / Immersion) Ideal product for use in outdoor environments!
	12V DC power supply NOT included!
	This product is covered by a 24 month warranty.

Downloads

Download the English brochure
