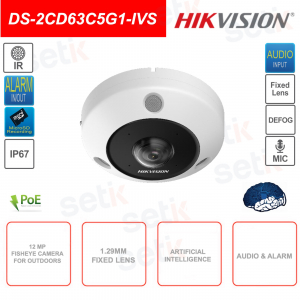

Hikvision DS-2CD63C5G1-IVS IP PoE outdoor camera FishEye Network Camera 12 Megapixel 12MP, 1.29mm lens, 1/1.8" CMOS sensor, H.265+, Day&Night (ICR), Smart IR 15m (3 LED), Dual Stream , Artificial Intelligence , DWDR, Speaker, Microphone, ROI, BLC, HLC, 3D DNR, AGC, MicroSD Slot (256GB - NOT INCLUDED) , ANR, Motion Detection, access to Hik-Connect, reset button - Ideal for video surveillance systems . outside.
FIND INSTALLER
€1,269.59
€1,953.22 -35%
DS-2CD63C5G1-IVS | HIKVISION IP POE 12MP CAMERA - 1.29MM FIXED LENS - OUTDOOR - H.265+ - SMART IR 15M FISHEYE METERS
Hikvision Camera - DS-2CD63C5G1-IVS - IP PoE FishEye 12MP Network Camera
Resolution: 12MP 12Megapixel - 1.29mm fixed lens - 1/1.8" CMOS sensor - H.265+ Video Compression - Dual Stream - Smart IR 15m, with 3 independent LEDs - Day/Night(ICR) - DWDR - Artificial intelligence - Microphone - Speaker - Audio 1in/1out - Alarm 2in/2out - IP67 protection for external use.
Power supply NOT included - 256GB MicroSD slot (not included, sold separately) - 24 month warranty
| POE (Power Over Ethernet): The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation | |
| Resolution: This camera features a resolution of 12Megapixels 1/1.8” 12Megapixel progressive scan CMOS image sensor, 3504 × 3504 pixels. | |
| Optics: This camera has a 1.29mm fixed lens | |
| H.265+ compression
An intelligent algorithm self-developed by Hikvision which can greatly reduce the bitrate of video based on standard H.265 codec. Hikvision's H.265+ reduces transmission bandwidth and required storage capacity without impacting video quality, thanks to three key technologies: prediction coding, noise suppression and flexible bit rate control. Optimized for multiple surveillance scenarios, it allows for greater use of ultra HD surveillance cameras, such as 8 MP and 12 MP cameras. | |
Infrared IR Illuminator: | |
Smart Feature-set - Video Analysis:
| |
HIK-CONNECT Hik Connect allows you to control the device remotely
| |
| DWDR: WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental when shooting from inside to outside, license plates, shadowed points or all situations where there is no homogeneity of light. The higher the db value, the greater the camera's ability to manage the strong difference in backlighting present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db managing very strong contrast levels.  | |
| ROI (Region Of Interest): The images deriving from IP cameras are "compressed", therefore the quality is set during the recording phase. Especially on cameras with very high resolution, it is often necessary to reduce the quality in order to guarantee reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus guaranteeing greater image definition.  | |
| Day/Night: It allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.
| |
| IR CUT FILTER (ICR): Mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.  | |
| BLC (Back Light Compensation): it is one of the 3 possible steps in managing images with Contrast, typical situations are (Entries or exits from car parks, license plates, particular lights, entrances with shots from inside to outside, etc.) light compensation is one of the most as complex as possible, the BLC function allows discreet adaptation to these situations | |
AUDIO: 1 Speaker + 4 microphones on board. Audio 1in/1out | |
ALARM: | |
| AGC (Automatic Gain Control): integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings. | |
3D-DNR: | |
| MicroSD slot: Present microSD/SDHC/SDXC slot up to 256GB - not included | |
Audio | |
Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC -LC) |
Audio Sampling Rate | 8kHz/16kHz/32kHz/48kHz |
Environment Noise Filtering | Yes |
Network | |
Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour , SSL/TLS, ISUP, ARP, WebSocket, WebSockets, SIP |
Simultaneous Live View | Up to 20 channels |
APIs | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP, Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX |
User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface , RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address) |
Network Storage | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
Clients | iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect |
Web Browsers | Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
Image | |
Image Parameters Switch | Yes |
Image Settings | saturation, brightness, contrast, sharpness, white balance, AGC, adjustable by client software or web browser |
Day/Night Switch | Day, Night, Auto, Schedule, Alarm Trigger |
Wide Dynamic Range (WDR) | Digital WDR |
Image Enhancement | BLC, HLC, 3D DNR, Distortion Correction, Defog |
Privacy Mask | 8 programmable polygon privacy masks |
Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format. |
Interface | |
Ethernet Interface | 1 RJ45 10M/100M/1000M self-adaptive Ethernet port |
On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256GB |
Built-in Microphone | Yes, 4 built-in microphones |
Built-in Speaker | Yes, 1 built-in speaker |
Audio | 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
Alarm | 2 inputs, 2 outputs (max. 24 VDC, 1 A) |
RS-485 | 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
Reset Key | 1 Reset Key |
Event | |
Basic Event | Motion detection, video tampering alarm, alarm input and output, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
|
Smart Events | Line crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection, audio exception detection, defocus detection, unattended baggage detection, object removal detection |
Linkages | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture |
Deep Learning Function | |
People Counting | Counts people entering, exiting and passing by separately (The data is stored in the flash.) Supports real-time uploading and uploading by statistic cycle Sends email reports on daily, weekly, monthly or annually basis Supports up to 3 detection regions, and independent arming schedule and linkage method |
Queue Management | Supports up to 8 detection regions, and independent arming schedule and linkage method Supports 2 detection modes: regional people queuing-up, waiting time detection Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue Supports raw data export for further analysis Supports real-time data uploading and scheduled data uploading Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to threshold Waiting time detection: supports 1 alarm trigger condition, including greater than threshold |
Heat Map | A graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area., Two report types are available, space heat map and time heat map line chart. |
Intersection Analysis | Detects and analyze flow in an intersection-like scene, and generate reports Support one intersection of up to 10 ways |
General | |
Power | 12 VDC ± 20%, 1 A, max. 11.5 W, two-core terminal block, PoE: IEEE 802.3af, Class 3, max. 12.5W |
Material | Metal |
Dimension | Ø 140.3 mm × 59.4 mm (Ø 5.5" × 2.3") |
Package Dimension | 260 mm × 230 mm × 135 mm (10.2" × 9.1" × 5.3") |
Weight | Approx. 715 g (1.58 lb.) |
With Package Weight | Approx. 1206 g (2.66 lb.) |
Storage Conditions | -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) |
Startup and Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) |
Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish , Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
General Function | Heartbeat, flash log, password reset via email, password protection, one-key reset, anti-banding |
Heater | Yes |
Cable Length | 0.31 m (1.02 ft.) |
Approval | |
EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019 +A2:2021, EN 50121-4: 2016+A1:2019, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 |
Safety | UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 |
Environment | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
Protection | IP67: IEC 60529-2013, IK10: IEC 62262:2002 |
