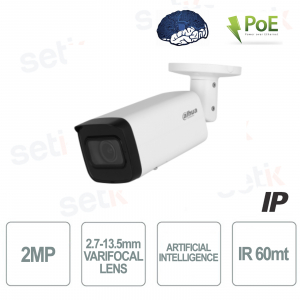

IPC-HFW2241T-ZS Dahua AI Outdoor IP Camera Onvif PoE with Artificial Intelligence AI SSA , 2 Megapixel 2MP , 1/2.8" CMOS sensor, 2.7-13.5 lens with motorized zoom and compression up to H.265+ . Smart IR illuminator 4 LED 60MT , Day/Night (ICR), WDR 120dB, Perimeter Protection, AI SSA Intelligent Search, intrusion, tripwire, SMD Plus, ROI, Mirror, BLC, HLC, MicroSD Slot, IP67/IK10.
https://www.setik.biz/en/cameras/9911-dahua-ipc-hfw2241t-zs-camera-ai-ip-poe-2mp-motorized-vari-focal-27-135mm-wdr-ip67-ik10-dahua.html
€169.09
€402.60 -58%
taxes included
PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
ONVIF® POE OUTDOOR IP CAMERA - 2 MEGAPIXEL WITH ARTIFICIAL INTELLIGENCE - DAHUA
ONVIF® PoE IP Camera - Dahua AI Series
2Megapixel Resolution - 2.7-13.5mm Lens with Motorized Zoom - 1/2.8" CMOS
CMOS sensor - Day/Night (ICR) - WDR 120dB - Smart IR illuminator 4 LEDs 60MT
Perimeter Protection, AI Smart Search SSA, Intrusion, Tripwire - MicroSD Slot (256GB Not Included)
2Megapixel Resolution - 2.7-13.5mm Lens with Motorized Zoom - 1/2.8" CMOS
CMOS sensor - Day/Night (ICR) - WDR 120dB - Smart IR illuminator 4 LEDs 60MT
Perimeter Protection, AI Smart Search SSA, Intrusion, Tripwire - MicroSD Slot (256GB Not Included)
AI TECHNOLOGY | ARTIFICIAL INTELLIGENCE: |
Product details
- Outdoor PoE AI IP Camera - Dahua
- Resolution 2Megapixel FULL HD 1080P
- 2.7-13.5mm varifocal lens with motorized zoom
- 1/2.8” CMOS sensor !
- Video compression up to H.265+
- Double Stream
- WDR 120dB - Day/Night (ICR) - 3DNR,BLC
- Smart IR illuminator 4 LEDs 60MT
- Artificial Intelligence : Line Crossing, Intrusion (People & Vehicle Classification), Quick Choice, Intelligent Search
- Remote viewing with DMSS, DSS, Smart PSS
- Micro SD memory slot (Up to 256GB - not included)
- IP67 / IK10 protection (indoor/outdoor)
- Material: Metal
- Dimensions: 238.5mm × 90.7mm × 90.7mm
- Power supply NOT included
- 24 month warranty
Technical data sheet
| Model | IPC-HFW2241T-ZS |
| Room | |
| Image Sensor | 1/2.8” CMOS |
| Effective Pixel | 1920(H)x1080(V) |
| ROM/RAM | 128MB/128MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual, 1/3~1/100000s |
| Min. Illumination | 0.002 lux@F1.5 (Color, 30 IRE) |
| Y/N Ratio | >56dB |
| IR Distance | 60 m (196.85 ft) |
| IR On/Off Control | Auto/Manual |
| IR LEDs | 4 (IR LEDs) |
| Pan/Tilt/Rotation Range | Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360° |
| Lens | |
| Lens Type | Motorized vari-focal |
| Mount Type | φ14 |
| Focal Length | 2.7mm–13.5mm |
| Max. Openings | F1.5 |
| Field Of View | Horizontal: 108°–30° Vertical: 56° –17° Diagonal: 131°–35° |
| Iris Type | Fixed |
| Close Focus Distance | 0.8 m (2.62 ft) |
| Intelligence | |
| IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
| SmartSearch | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video | |
| Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codec | Smart H.265+ Smart H.264+ |
| AI Coding | AI H.265 AI H.264 |
| Video Frame Rate | Main stream: 1920 × 1080@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Streaming Capability | 2 streams |
| Resolution | 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bitrate Control | CBR/VBR |
| Video Bitrate | H.264: 32kbps–6144kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120dB |
| White Balance | Car; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Manual;Auto |
| Noise Reduction | 3D DNR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region Of interest | Yes (4 areas) |
| Smart Lighting | Yes |
| Image Rotation | 0°/90°/180°/270° (support 90°/270° with 1920 × 1080 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in MIC | Yes |
| Audio Compression | G.711a; G.711Mu; G.726; PCM |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; defocus detection; external alarm (Only - ZAS supports); SMD; security exception |
| Network | |
| Ethernet | RJ-45 (10/100Base-T) |
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P |
| Interoperability | ONVIF® (Profile S/Profile G/Profile T); CGI |
| User/Host | 6 (Total bandwidth: 36M) |
| Edge Storage | FTP; SFTP; Micro SD card (support max. 256G) |
| Browser | IE Chrome Firefox |
| Management Software | Smart PSS; DSS; DMSS |
| Smartphone | IOS; Android |
| Cyber Security | Video encryption; Configuration encryption; Digests; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrades |
| Certification | |
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
| Power | |
| Power Supply | 12VDC/PoE (802.3af) |
| Power Consumption | Basic: 2W (12 VDC); 2.6W (PoE) |
| Environment | |
| Operating Conditions | –30 °C to +60 °C (–22 °F to 140 °F) /Less than 95% RH |
| Storage conditions | –40 °C to +60 °C (–40 °F to 140 °F) |
| Ingress Protection | IP67, IK10 (optional) |
| Structure | |
| Casing | Metal |
| Dimensions | 238.5 mm × 90.7 mm × 90.7 mm (9.39" × 3.57" × 3.57") (L × W × H) |
| Net Weight | 0.73 kg (1.6 lb) |
| Gross Weight | 0.99kg (2.2lb) |
Further details
 | All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif, means having a camera that is an end in itself that can never be used together with recording systems This camera is ONVIF® compatible |
 | The advantage of a PoE camera is clear, it can be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation. |
| AI | Artificial Intelligence - Perimeter protection: Intrusion, Line crossing (people & vehicles classification) |
| Smart H.265+ Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression.
|
 | This camera features a resolution of 2Megapixel 1080P FULL HD |
 | 2.7-13.5mm varifocal lens with motorized zoom Motorized zoom example |
 | Main stream: 1920 × 1080@(1–25/30 fps) |
 | Infrared illuminator with approximate maximum range of 60m |
 | Remote visibility on mobile using Dahua DMSS application. |
 | ULTRA WDR up to 120dB WDR (Wide Dynamic Range): This is the professional solution when you need to work in high light/shadow contrast conditions. It is essential when shooting from inside to outside, license plates, shadowed areas or any situation where there is no homogeneity of light.  |
 | Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.  |
 | The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
 |
This camera has ROI function. Images from IP cameras are “compressed”, so the quality is set during recording. Especially on cameras with very high resolution, it is often necessary to reduce the quality in order to ensure a reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus ensuring a higher definition of the image.  |
 | Protection level IP67 (Dust / Immersion) |
 | IK 10 is the highest level of protection from direct damage. This allows the camera to be used even if there is a risk of vandalism
|
 | Possibility to insert Micro SD up to a maximum of 256Gb - not included |
 | Power supply NOT included  |
 | This product is covered by a 24 month warranty. |
